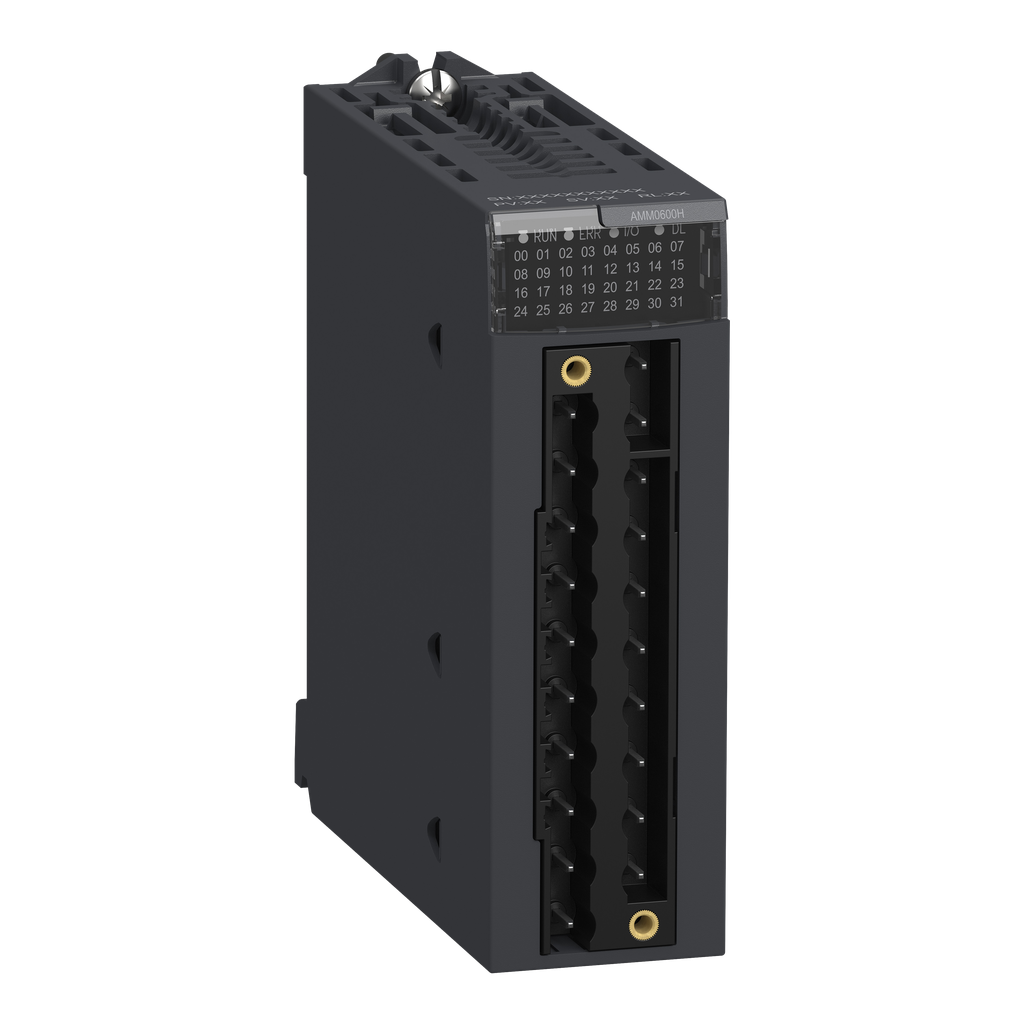

BMXAMM0600H – analog non isolated high level IO module, Modicon X80, 4 I, 2 O, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment
BMXAMM0600H
analog non isolated high level IO module, Modicon X80, 4 I, 2 O, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This mixed analogue I/O module has 4 input channels, 2 output channels with 12bit, 13bit, 14bit resolution. It is an analogue I/O module with a power consumption of 2.8W at 24V DC. There is no isolation channels between channels and ground at 1400V DC, channels and bus at 1400V DC and group of I/O channels at 750V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 20-way connector for electrical connection. There is no isolation channels between channels and ground at 1400V DC, channels and bus at 1400V DC and group of I/O channels at 750V DC. It is an IP20 rated product. It weighs 0.155kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • CE
  • RCM
  • CSA
  • EAC
  • Merchant Navy
  • UL
  • ATEX
  • IEC-Ex
Ambient Air Temperature For Operation -25-70 °C
Standards
  • EN/IEC 61010-2-201
  • EN/IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201
Shock Resistance 30 gn
Environmental Characteristic
  • gas resistant class Gx
  • gas resistant class 3C4
  • dust resistant class 3S4
  • sand resistant class 3S4
  • salt resistant level 2
  • mold growth resistant class 3B2
  • fungal spore resistant class 3B2
  • hazardous location
Vibration Resistance 3 gn
Directives
  • 2014/35/EU - low voltage directive
  • 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage -40-85 °C
Relative Humidity 5-95 % 55-55 °C without condensation
Protective Treatment conformal coating
Ip Degree Of Protection IP20
Warranty 18 months
Mercury Free Yes
Environmental Disclosure ENVPEP2311046EN
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI2311046EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Mtbf Reliability 1400000 H
Fallback Mode
  • predefined
  • configurable
Measurement Error
  • 0.25 % of full scale 0...20 mA 25 °C output
  • 0.25 % of full scale 4...20 mA 25 °C output
  • 0.25 % of full scale +/- 10 V 25 °C output
  • 0.25 % of full scale +/- 10 V 25 °C input
  • 0.25 % of full scale 0...10 V 25 °C input
  • 0.25 % of full scale 0...5 V 25 °C input
  • 0.25 % of full scale 1...5 V 25 °C input
  • 0.35 % of full scale 0...20 mA 25 °C input
  • 0.35 % of full scale 4...20 mA 25 °C input
  • <= 0.4 % of full scale +/- 10 V - 25...70 °C input
  • <= 0.4 % of full scale 0...10 V - 25...70 °C input
  • <= 0.4 % of full scale 0...5 V - 25...70 °C input
  • <= 0.4 % of full scale 1...5 V - 25...70 °C input
  • <= 0.6 % of full scale 0...20 mA - 25...70 °C input
  • <= 0.6 % of full scale 4...20 mA - 25...70 °C input
  • <= 0.8 % of full scale +/- 10 V - 25...70 °C output
  • <= 0.8 % of full scale 0...20 mA - 25...70 °C output
  • <= 0.8 % of full scale 4...20 mA - 25...70 °C output
Maximum Conversion Value
  • +/- 11.25 V +/- 10 V output
  • +/- 11.25 V +/- 10 V input
  • 0...30 mA 0...20 mA input
  • 0...30 mA 4...20 mA input
  • +/- 11.25 V 0...10 V input
  • +/- 11.25 V 0...5 V input
  • +/- 11.25 V 1...5 V input
  • 0...24 mA 0...20 mA output
  • 0...24 mA 4...20 mA output
Type Of Filter first order digital filtering by firmware
Status Led
  • 1 LED (Green) RUN
  • 1 LED per channel (Green) channel diagnostic
  • 1 LED (Red) ERR
  • 1 LED (Red) I/O
Precision Of Internal Conversion Resistor 0.1 % - 15 ppm/°C
Temperature Drift
  • 100 ppm/°C +/- 10 V output
  • 100 ppm/°C 0...20 mA output
  • 100 ppm/°C 4...20 mA output
  • 30 ppm/°C +/- 10 V input
  • 30 ppm/°C 0...10 V input
  • 30 ppm/°C 0...5 V input
  • 30 ppm/°C 1...5 V input
  • 50 ppm/°C 0...20 mA input
  • 50 ppm/°C 4...20 mA input
Recalibration
  • internal on inputs
  • factory calibrated on outputs
Analogue Output Type
  • current 0...20 mA
  • current 4...20 mA
  • voltage +/- 10 V
Common Mode Rejection 80 dB
Output Level high level
Current Consumption 240 mA 3.3 V DC
Analogue Input Resolution
  • 12 bits 0...20 mA
  • 12 bits 0...5 V
  • 12 bits 1...5 V
  • 12 bits 4...20 mA
  • 13 bits 0...10 V
  • 14 bits +/- 10 V
Minimum Crosstalk Attenuation 70 dB
Net Weight 0.155 kg
Input Impedance 250 Ohm
Isolation Voltage
  • 1400 V DC between channels and ground
  • 1400 V DC between channels and bus
  • 750 V DC between group of I/O channels
Fast Read Cycle Time 1 ms + 1 ms x number of channels used
Analogue Output Number 2
Power Consumption In W
  • 2.6 W 24 V DC typical
  • 3.2 W 24 V DC maximum
  • 0.35 W 3.3 V DC typical
  • 0.48 W 3.3 V DC maximum
Nominal Read Cycle Time 5 ms for 4 channels
Operating Altitude
  • 0...6561.68 ft (0...2000 m)
  • 2000...5000 m with derating factor
Analogue Output Resolution
  • 11 bits, 0...20 mA
  • 11 bits, 4...20 mA
  • 12 bits, +/- 10 V
Conversion Time <= 2 ms
Permitted Overload On Inputs
  • +/- 30 mA 0...20 mA
  • +/- 30 mA 4...20 mA
  • +/- 30 V +/- 10 V
  • +/- 30 V 0...10 V
  • +/- 30 V 0...5 V
  • +/- 30 V 1...5 V
Country of Origin United States
Weight 0.155 kg
Range Of Product Modicon X80
Product Or Component Type mixed analog I/O module
Input Level high level
Electrical Connection 20 ways 1 connector
Input Output Isolation non isolated
Analogue Input Number 4
Product Specific Application for severe environments
Analogue Input Type
  • current 0...20 mA
  • current 4...20 mA
  • voltage +/- 10 V
  • voltage 0...10 V
  • voltage 0...5 V
  • voltage 1...5 V
