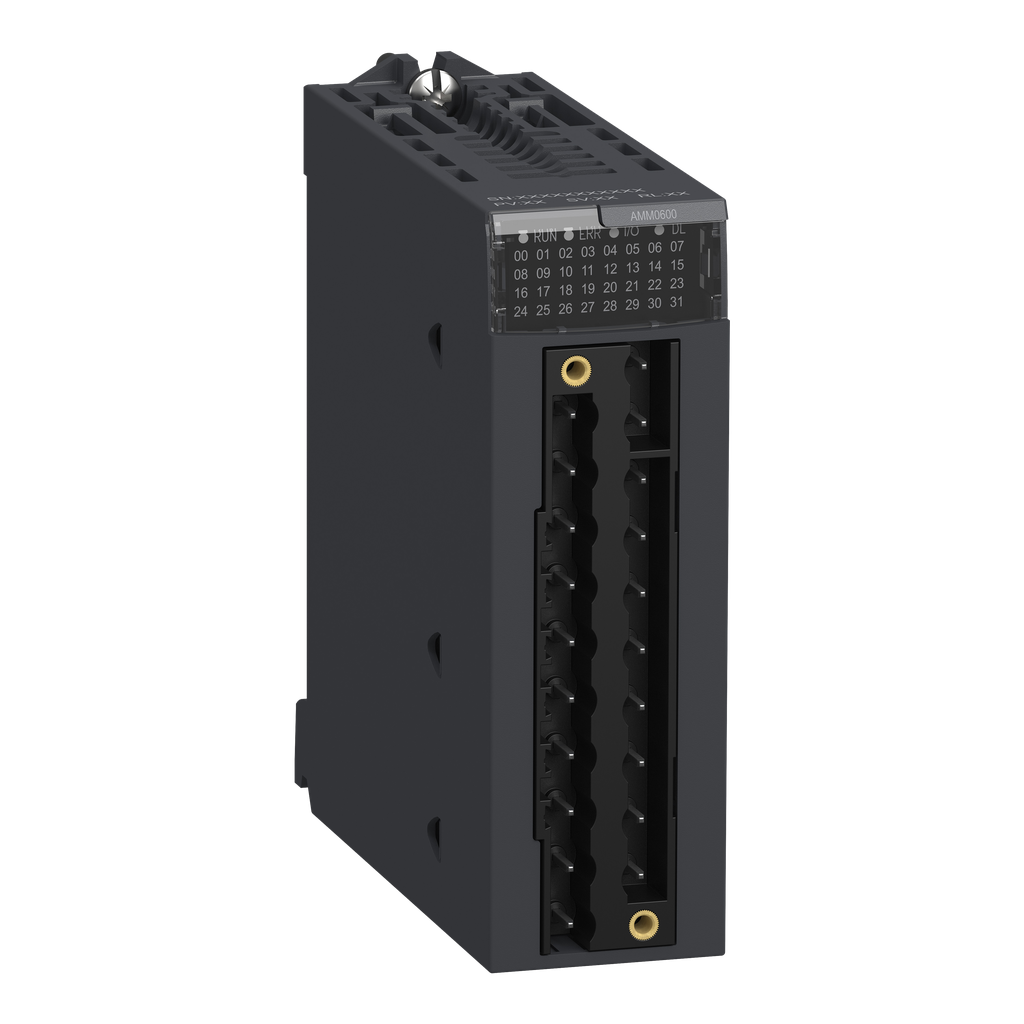

BMXAMM0600 – analog non isolated high level IO module, Modicon X80, 4 I, 2 O, 0 to 20mA, 4 to 20mA, 10V positive or negative
BMXAMM0600
analog non isolated high level IO module, Modicon X80, 4 I, 2 O, 0 to 20mA, 4 to 20mA, 10V positive or negative

This analog mixed I/O module is part of the Modicon X80 modules. It has 4 non-isolated inputs (14/12 bits) and 2 non-isolated outputs (12 bits). It offers different ranges of voltage or current for each of the inputs / outputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Product Certifications
  • CE
  • RCM
  • CSA
  • EAC
  • Merchant Navy
  • UL
Ambient Air Temperature For Operation 0-60 °C
Standards
  • EN/IEC 61010-2-201
  • EN/IEC 61131-2
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201
Shock Resistance 30 gn
Vibration Resistance 3 gn
Directives
  • 2014/35/EU - low voltage directive
  • 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage -40-85 °C
Relative Humidity 5-95 % 55-55 °C without condensation
Ip Degree Of Protection IP20
Warranty 18 months
Mercury Free Yes
Environmental Disclosure ENVPEP2311046EN
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI2311046EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Mtbf Reliability 1400000 H
Fallback Mode
  • predefined
  • configurable
Measurement Error
  • 0.25 % of full scale 0...20 mA 25 °C output
  • 0.25 % of full scale 4...20 mA 25 °C output
  • <= 0.35 % of full scale +/- 10 V 0...60 °C input
  • <= 0.35 % of full scale 0...10 V 0...60 °C input
  • <= 0.35 % of full scale 0...5 V 0...60 °C input
  • <= 0.35 % of full scale 1...5 V 0...60 °C input
  • <= 0.5 % of full scale 0...20 mA 0...60 °C input
  • <= 0.5 % of full scale 4...20 mA 0...60 °C input
  • <= 0.6 % of full scale +/- 10 V 0...60 °C output
  • <= 0.6 % of full scale 0...20 mA 0...60 °C output
  • <= 0.6 % of full scale 4...20 mA 0...60 °C output
  • 0.25 % of full scale +/- 10 V 25 °C output
  • 0.25 % of full scale +/- 10 V 25 °C input
  • 0.25 % of full scale 0...10 V 25 °C input
  • 0.25 % of full scale 0...5 V 25 °C input
  • 0.25 % of full scale 1...5 V 25 °C input
  • 0.35 % of full scale 0...20 mA 25 °C input
  • 0.35 % of full scale 4...20 mA 25 °C
Maximum Conversion Value
  • +/- 11.25 V +/- 10 V output
  • +/- 11.25 V +/- 10 V input
  • 0...30 mA 0...20 mA input
  • 0...30 mA 4...20 mA input
  • +/- 11.25 V 0...10 V input
  • +/- 11.25 V 0...5 V input
  • +/- 11.25 V 1...5 V input
  • 0...24 mA 0...20 mA output
  • 0...24 mA 4...20 mA output
Type Of Filter first order digital filtering by firmware
Status Led
  • 1 LED (Green) RUN
  • 1 LED per channel (Green) channel diagnostic
  • 1 LED (Red) ERR
  • 1 LED (Red) I/O
Precision Of Internal Conversion Resistor 0.1 % - 15 ppm/°C
Temperature Drift
  • 100 ppm/°C +/- 10 V output
  • 100 ppm/°C 0...20 mA output
  • 100 ppm/°C 4...20 mA output
  • 30 ppm/°C +/- 10 V input
  • 30 ppm/°C 0...10 V input
  • 30 ppm/°C 0...5 V input
  • 30 ppm/°C 1...5 V input
  • 50 ppm/°C 0...20 mA input
  • 50 ppm/°C 4...20 mA input
Recalibration
  • factory calibrated on outputs
  • internal on inputs
Analogue Output Type
  • current 0...20 mA
  • current 4...20 mA
  • voltage +/- 10 V
Common Mode Rejection 80 dB
Output Level high level
Current Consumption 240 mA 3.3 V DC
Analogue Input Resolution
  • 12 bits 0...20 mA
  • 12 bits 0...5 V
  • 12 bits 1...5 V
  • 12 bits 4...20 mA
  • 13 bits 0...10 V
  • 14 bits +/- 10 V
Minimum Crosstalk Attenuation 70 dB
Net Weight 0.155 kg
Input Impedance 250 Ohm
Isolation Voltage
  • 1400 V DC between channels and ground
  • 1400 V DC between channels and bus
  • 750 V DC between group of I/O channels
Fast Read Cycle Time 1 ms + 1 ms x number of channels used
Analogue Output Number 2
Power Consumption In W
  • 2.6 W 24 V DC typical
  • 3.2 W 24 V DC maximum
  • 0.35 W 3.3 V DC typical
  • 0.48 W 3.3 V DC maximum
Nominal Read Cycle Time 5 ms for 4 channels
Operating Altitude
  • 0...6561.68 ft (0...2000 m)
  • 2000...5000 m with derating factor
Analogue Output Resolution
  • 11 bits, 0...20 mA
  • 11 bits, 4...20 mA
  • 12 bits, +/- 10 V
Conversion Time <= 2 ms
Permitted Overload On Inputs
  • +/- 30 mA 0...20 mA
  • +/- 30 mA 4...20 mA
  • +/- 30 V +/- 10 V
  • +/- 30 V 0...10 V
  • +/- 30 V 0...5 V
  • +/- 30 V 1...5 V
Country of Origin Indonesia
Weight 0.155 kg
Range Of Product Modicon X80
Product Or Component Type mixed analog I/O module
Input Level high level
Electrical Connection 20 ways 1 connector
Input Output Isolation non isolated
Analogue Input Number 4
Analogue Input Type
  • current 0...20 mA
  • current 4...20 mA
  • voltage +/- 10 V
  • voltage 0...10 V
  • voltage 0...5 V
  • voltage 1...5 V
