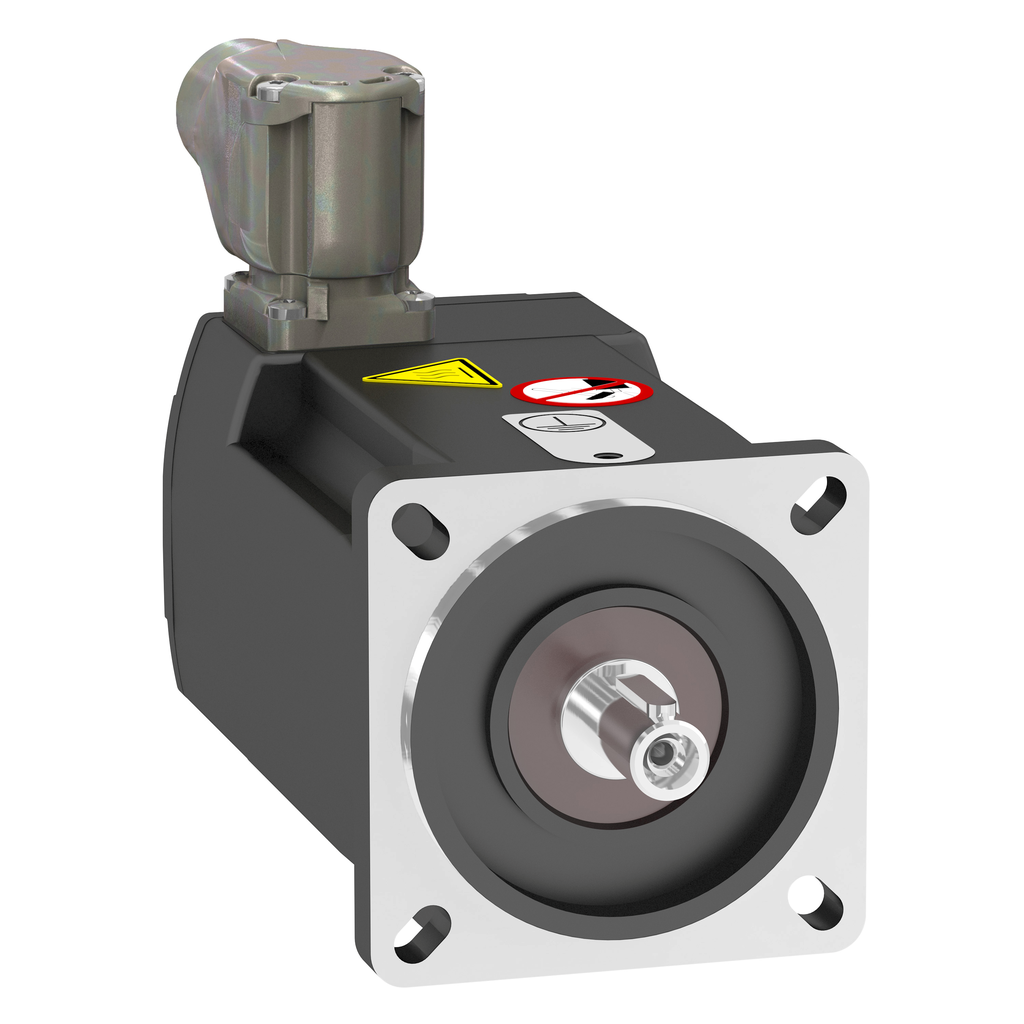

BMP0702F3NA2A
synchronous motor - BMP - 480 VAC - 0.55 kW - IP65 - IEC
Specifications
| Circle Diameter Of The Mounting Holes | 75-82 mm |
|---|---|
| Maximum Radial Force Fr |
|
| Number Of Motor Stacks | 2 |
| Rotor Inertia | 1.13 kg.cm² |
| Number Of Motor Poles | 5 |
| Maximum Axial Force Fa | 0.2 x Fr |
| Centring Collar Depth | 2.5 mm |
| Shaft Length | 23 mm |
| Phase | three phase |
| Length | 154 mm |
| Maximum Current Irms |
|
| Net Weight | 1.8 kg |
| Centring Collar Diameter | 60 mm |
| Stator Inductance |
|
| Motor Flange Size | 70 mm |
| [Us] Rated Supply Voltage | 480 V |
| Number Of Mounting Holes | 4 |
| Shaft Diameter | 11 mm |
| Key Width | 4 mm |
| Minimum Operating Frequency |
|
| Mounting Holes Diameter | 5.5 mm |
| Type Of Cooling | natural convection |
| Maximum Operating Frequency |
|
| Stator Resistance | 6.96 Ohm 40 °C |
| Range Compatibility |
|
| Nominal Operating Frequency |
|
| Torque Constant | 1.51 N.m/A 40 °C |
| Country of Origin | United States |
| Length | 154 mm |
| Width | 4 mm |
| Weight | 1.8 kg |
| Product Compatibility |
|
| Maximum Mechanical Speed | 3600 rpm |
| Mounting Support | international standard flange |
| Holding Brake | without |
| Product Or Component Type | synchronous motor |
| Nominal Output Power |
|
| Ip Degree Of Protection |
|
| Shaft End | keyed |
| Nominal Speed |
|
| Electrical Connection | rotatable right-angled connector |
| Nominal Torque |
|
| Device Short Name | BMP |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
