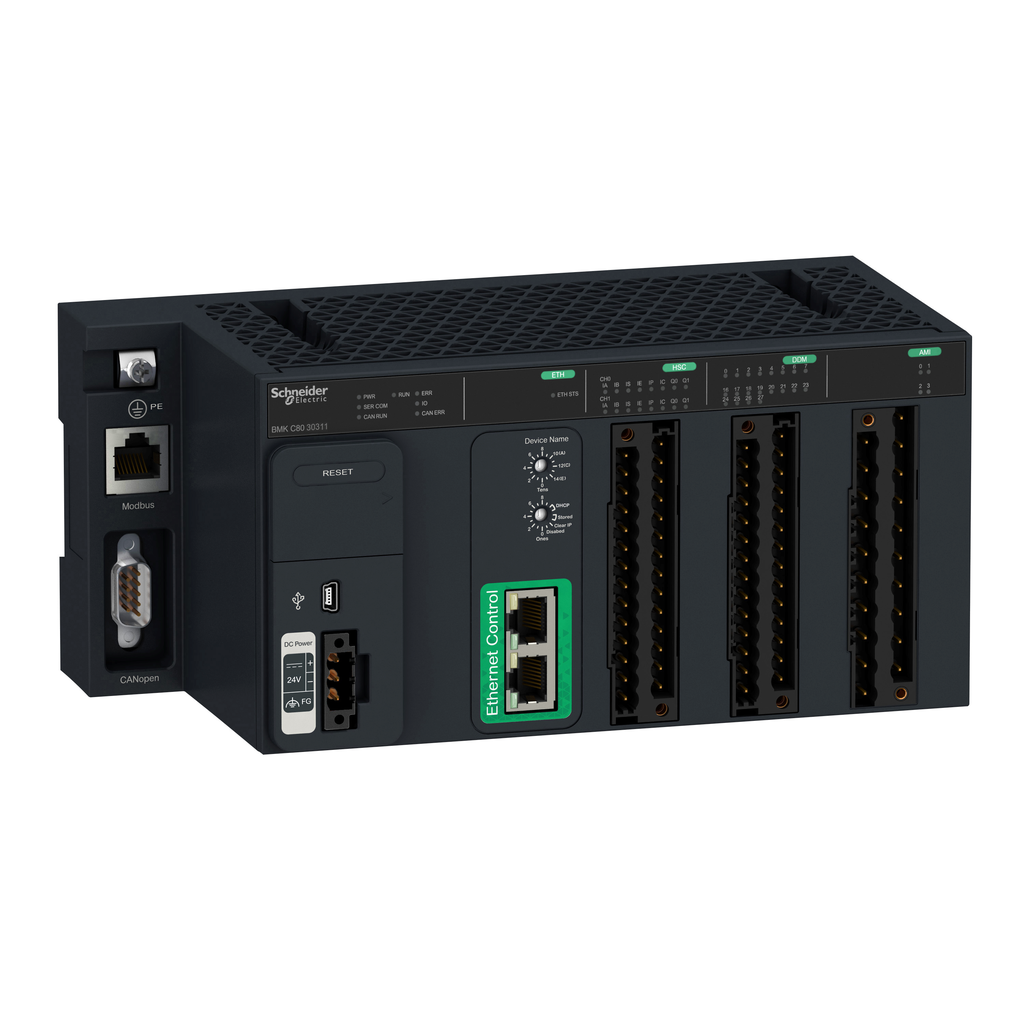

BMKC8030311 - Modicon MC80, Controller, 8 DI, 12 DO, 2 HSC, 4 AI

BMKC8030311

Modicon MC80, Controller, 8 DI, 12 DO, 2 HSC, 4 AI

Add to Quote Catalogue

Specifications

Logic Input	positive (sink)
Number Of Outputs	2 positive
Discrete Input Type	type 3
Integrated Connection Type	USB port mini B USB
Discrete Output Number	12 positive
Discrete Input Voltage	19...30 V DC
Communication Port Protocol	1 non isolated serial link RJ45 RS485/RS232 0.3...19.2 kbit/s 247 1 CANopen SUB-D 9 20 kbit/s...1 Mbit/s 16 2 Ethernet RJ45 10/100 Mbit/s
Counter Functions	count events frequency meter ratio count one shot counting measure time periods freelarge counting loop (modulo) counting
Protection Type	overload protection output short-circuit protection output
Discrete Input Number	8 positive logic (sink)
Discrete Input Current	2.4 mA
Number Of Inputs	3-3 auxiliary 3-3 high speed
Discrete Output Current	2 A per output 10 A per module
Current Consumption	<= 700 mA
Discrete Output Voltage	19...30 V DC
Communication Service	read/write variables Modbus diagnostics Modbus send/receive character string character mode Process Data Object (PDO) CANopen Service Data Object (SDO) CANopen FDR client Ethernet SNMP Ethernet RSTP support Ethernet
Nominal Output Current	0.5 A per output
Input Compatibility	24-24 V 2-wire/3-wire proximity sensor incremental encoder with push-pull outputs, 10...30 V totem pole 24-24 V 2/3-wire sensor PNP
Function Available	memory retention without battery
Analogue Input Number	4
Isolation Voltage	1500 V DC
[Us] Rated Supply Voltage	24 V - 15...20 % DC
Fast Read Cycle Time	1.3 ms + 1.3 ms x number of channels used
Sensor Power Supply	19-30 V DC
Execution Time Per Instruction	0.06 µs Boolean 0.08 µs mixed
Number Of Counter	2
Nominal Read Cycle Time	6.5 ms for 4 channels
Product Compatibility	BMXFTB28... terminal block high-speed counter module BMXFTB20... terminal block analog input module BMXFTB28... terminal block discrete I/O module
Analogue Input Resolution	16 bits
Realtime Clock	with
Maximum Counting Frequency	60000 Hz
Port Ethernet	10BASE-T/100BASE-TX
Analogue Input Type	current - 20...20 mA voltage - 10...10 V
Bus Length	0-10 m serial link non isolated 0-15 m serial link non isolated 0-1000 m serial link isolated with external isolation tap 0-20 m 1 Mbit/s CANopen 0-2500 m 20 kbit/s CANopen 0-100 m Ethernet
Memory Description	internal RAM 3840 kB internal RAM 128 kB data internal RAM 3590 kB program constants and symbols
Product Certifications	RCM
Ambient Air Temperature For Operation	-25-70 °C
Standards	UL 508 CSA C22.2 No 213 Class I Division 2 Group C CSA C22.2 No 142 IEC 61131-2 CSA C22.2 No 213 Class I Division 2 Group A CSA C22.2 No 213 Class I Division 2 Group D CSA C22.2 No 213 Class I Division 2 Group B
Marking	CE
Vibration Resistance	3 gn
Relative Humidity	0-95 %
Ambient Air Temperature For Storage	-40-85 °C
Rohs Exemption Information	Yes
Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	Indonesia
Range Of Product	Modicon MC80
Product Or Component Type	processor module
Product Specific Application	thermo solar - tower power
