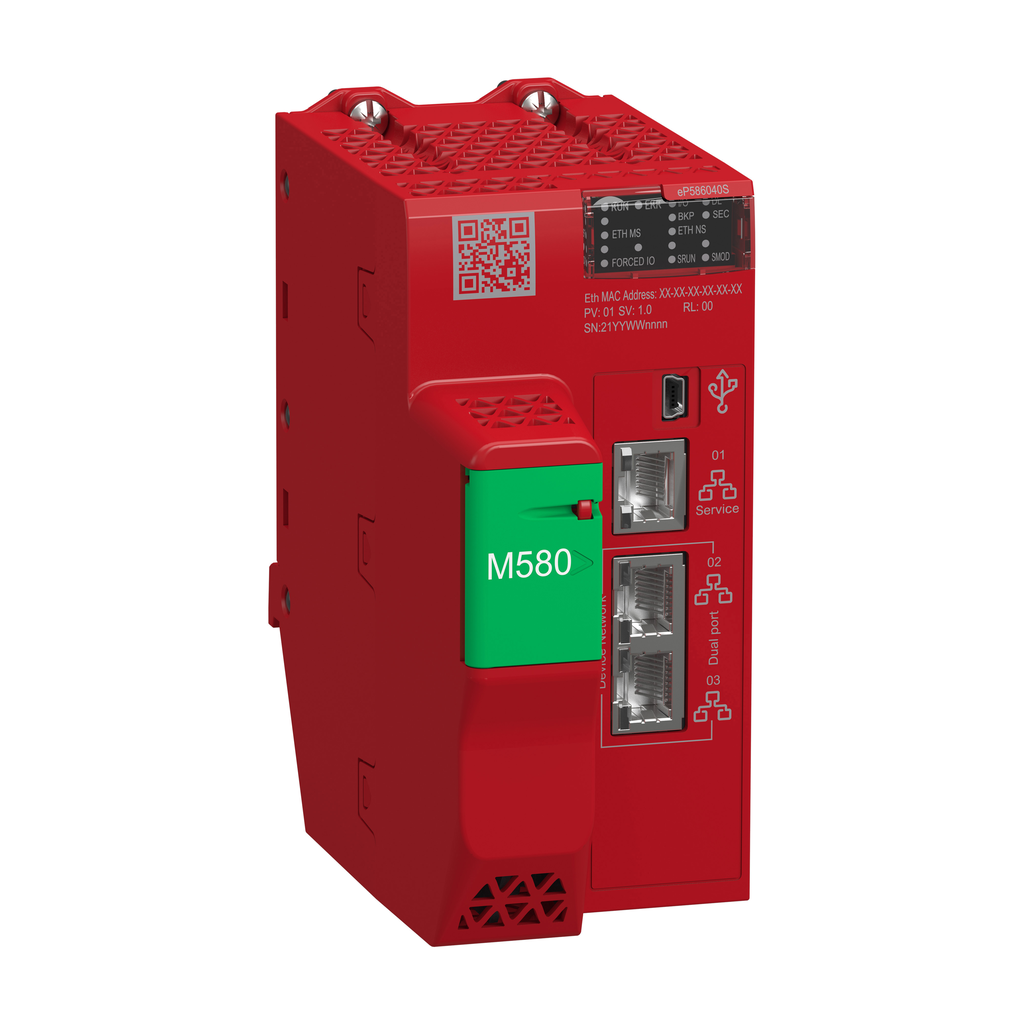

BMEP586040S
Standalone Safety processor, Modicon M580, 64MB, 61 Ethernet devices, 31 Remote I/O racks (X80 & Quantum), 128 CIP Safety devices
Specifications
| Ambient Air Temperature For Operation | -25-60 °C |
|---|---|
| Status Led |
|
| Standards |
|
| Product Certifications |
|
| Supply | internal power supply via rack |
| Shock Resistance | 15 gn |
| Environmental Characteristic |
|
| Vibration Resistance | 3 gn |
| Net Weight | 0.849 kg |
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Operating Altitude |
|
| Protective Treatment | conformal coating |
| Ip Degree Of Protection | IP20 |
| Safety Level |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1312016EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1312016EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mtbf Reliability | 775000 H |
| Number Of Distributed Equipment | 64 |
| Communication Module Processor Capacity |
|
| Communication Service |
|
| Number Of Racks | 8 |
| Marking | CE |
| Discrete I/O Number | 128 |
| Current Consumption | 300 mA 24 V DC |
| Application Structure |
|
| Number Of Remote I/O Station | 31 - 2 remote drop |
| Integrated Connection Type |
|
| Application Specific I/O |
|
| Number Of Instructions Per Ms |
|
| Cybersecurity |
|
| Discrete I/O Processor Capacity | 6144 I/O |
| Analogue I/O Processor Capacity | 1536 I/O |
| Memory Description |
|
| Control Channels | programmable loops |
| Number Of Application Specific Channel | 216 |
| Checks |
|
| Country of Origin | United States |
| Weight | 0.849 kg |
| Range Of Product | Modicon M580 |
| Product Or Component Type | processor module |
| Impregnation Material | conformal coated |
