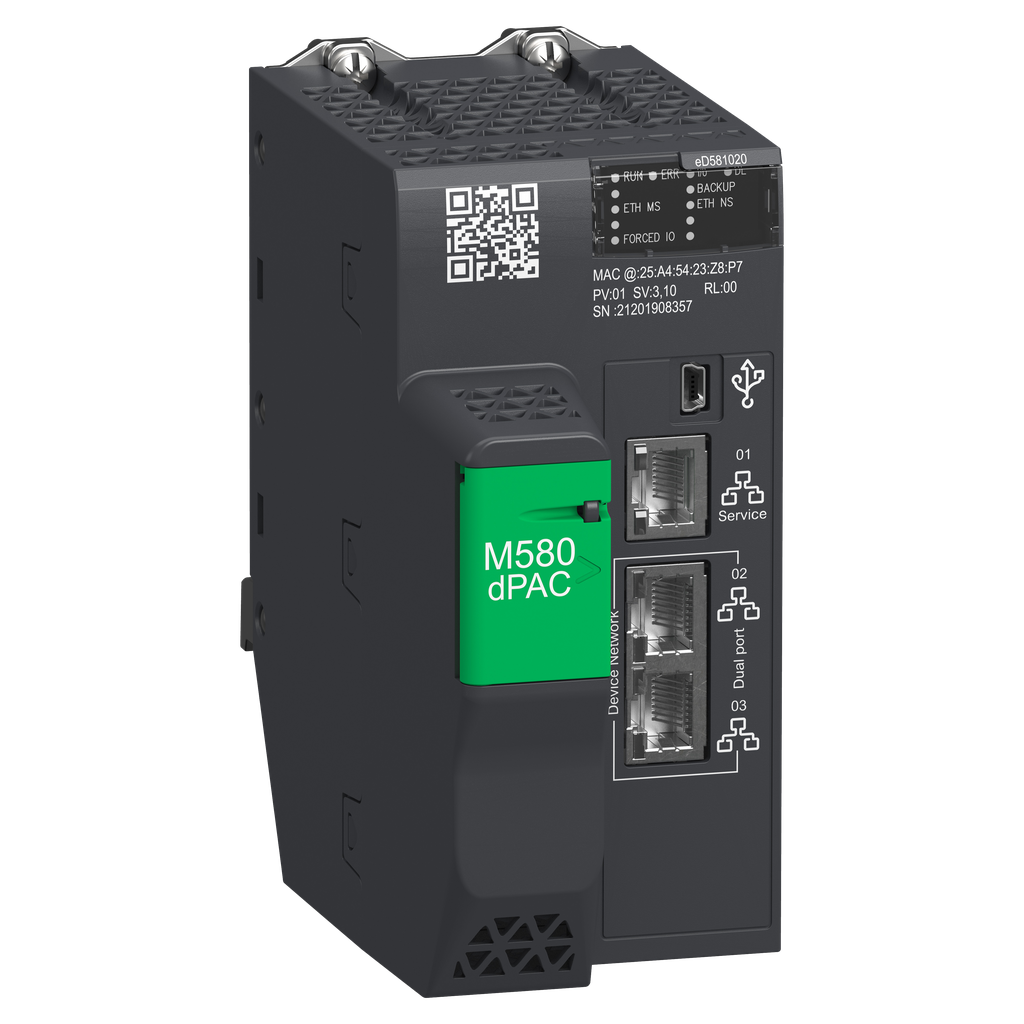

dPAC module, Modicon M580, conformal coated
The conformal coated Modicon M580 dPAC is part of the EcoStructure Automation Expert controller range. It is a high performance dPAC controller that supports the Modicon X80 I/O catalog. The controller supports up to 1024 discrete I/O channels, 256 analogue I/O channels and 4 local racks of Modicon X80 I/O. It is a high-performance, ruggedized IEC 61499 compliant field controller based on the widely successful Modicon M580 ePAC. It includes 64MB ECC RAM for programs and data and supports Modbus/TCP, Ethernet/IP and OPC UA and auto discovery. The controler is compatible with most Modicon X80 racks, power supplies and I/O. It weighs 0.85kg (1.9lb). EcoStruxure Automation Expert is a new category of software defined automation, enabling next generation integrated architectures and Industry 4.0 solutions. It complies with IEC/EN 61131-2 and IEC/EN/UL/CSA 61010-2-201, IEC/EN 61000-6-5, IEC/EN 61850-3, EN 50155/IEC 60571, CE ATEX (2014/34/EU), 2014/35/EU, 2014/30/EU and 2006/42/EC standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Weight | 0.849 kg |
| Range Of Product | Modicon M580 |
| Product Or Component Type | processor module |
| Ambient Air Temperature For Operation | 0-60 °C |
| Status Led |
|
| Standards |
|
| Product Certifications |
|
| Supply | internal power supply via rack |
| Shock Resistance | 30 gn |
| Environmental Characteristic | hazardous location class I division 2 |
| Vibration Resistance | 3 gn |
| Net Weight | 0.849 kg |
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Operating Altitude |
|
| Ip Degree Of Protection | IP20 |
| Mtbf Reliability | 600000 H |
| Number Of Distributed Equipment | 64 |
| Number Of Racks | 4 |
| Marking | CE |
| Current Consumption | 295 mA 24 V DC |
| Integrated Connection Type |
|
| Discrete I/O Processor Capacity | 1024 I/O |
| Analogue I/O Processor Capacity | 256 I/O |
| Memory Description | integrated RAM, 64 MB program and data |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1312016EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1312016EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
