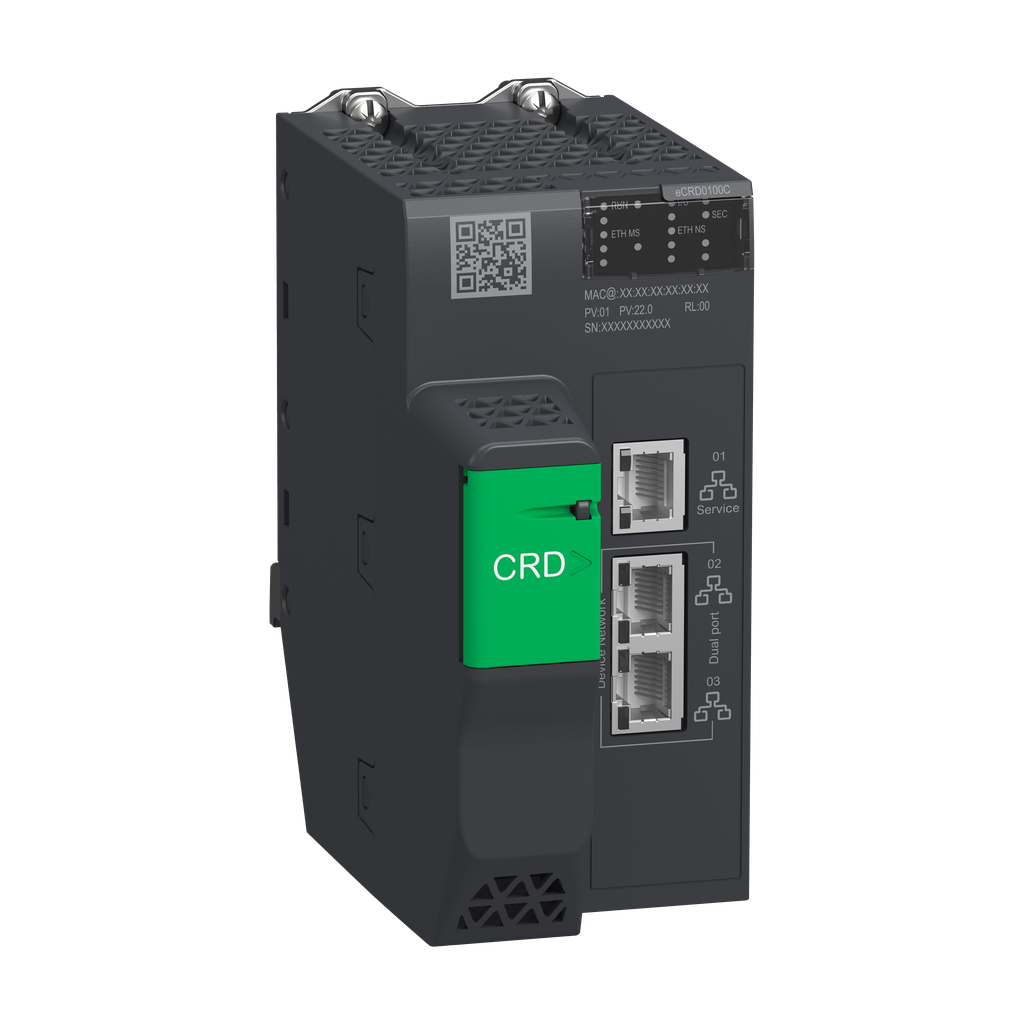

BMECRD0100C - Remote IO, EcoStruxure Automation Expert, Modicon X80 adapter for dPAC, Ethernet, conformal coated

BMECRD0100C

Remote IO, EcoStruxure Automation Expert, Modicon X80 adapter for dPAC, Ethernet, conformal coated

Add to Quote Catalogue

Specifications

Country of Origin	France
Width	64 mm
Height	131 mm
Weight	0.849 kg
Range Of Product	EcoStruxure Automation Expert
Condition Of Use	SoftdPAC required
Product Or Component Type	dPAC module
Product Specific Application	for remote I/O modules
Device Application	X80 Ethernet RIO drop adaptor
Protective Treatment	conformal coating
Product Compatibility	0-1024 discrete channel 0-256 analog channel HART module
Communication Network Type	IPv4 (internet protocol) IPv6 (internet protocol)
Height	131 mm
Fixing Mode	by screws
Communication Service	Ethernet/IP adapter RSTP (Ring topology support) Ethernet RIO network Quality of Service (QoS) DHCP client TFTP client FTP client FDR client NTP client
Exchange Mode	half duplex, full duplex, autonegotiation, auto MDIX
Net Weight	0.849 kg
Current Consumption	295 mA
Topology	ring
Function Available	input data is collected and published to the remote I/O head adaptor output modules are updated with the data received from remote I/O head adaptor system time stamping I/O extension rack
Communication Port Protocol	EtherNet/IP
Mounting Mode	rack-mounted
Integrated Connection Type	1 Ethernet TCP/IP service or distributed equipment 2 Ethernet TCP/IP Ethernet RIO Network (RSTP)
Bus Type	bus X across the remote backplane Ethernet across the remote backplane
Input Voltage	24 V DC
Local Signalling	for module active (RUN) 1 LED (green) for I/O error (I/O) 1 LED (red) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status) 1 LED (green/red) for download in progress (DL) 1 LED (green) for cyber security (SEC) 1 LED (green/red)
Cybersecurity	firmware signature
Module Format	double
Port Ethernet	10/100BASE-TX
Width	64 mm
Transmission Rate	10/100 Mbit/s
Depth	131 mm
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1312016EN
Sustainable Offer Status	Green Premium product
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1312016EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	0-60 °C
Standards	EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0 UL 121201 CSA C22.2 No 213
Product Certifications	CE UKCA RCM cULus EAC Merchant Navy hazardous location class 1, division 2 ATEX zone 2/22 IECEx zone 2/22
Marking	CE
Environmental Characteristic	gas resistant class Gx ISA S71.04 gas resistant class 3C4 IEC 60721-3-3 dust resistant class 3S4 IEC 60721-3-3 sand resistant class 3S4 IEC 60721-3-3 salt resistant level 2 IEC 68252 mold growth resistant class 3B2 IEC 60721-3-3 fungal spore resistant class 3B2 IEC 60721-3-3
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	5-95 % without condensation
Operating Altitude	0...6561.68 ft (0...2000 m)
Ip Degree Of Protection	IP20
