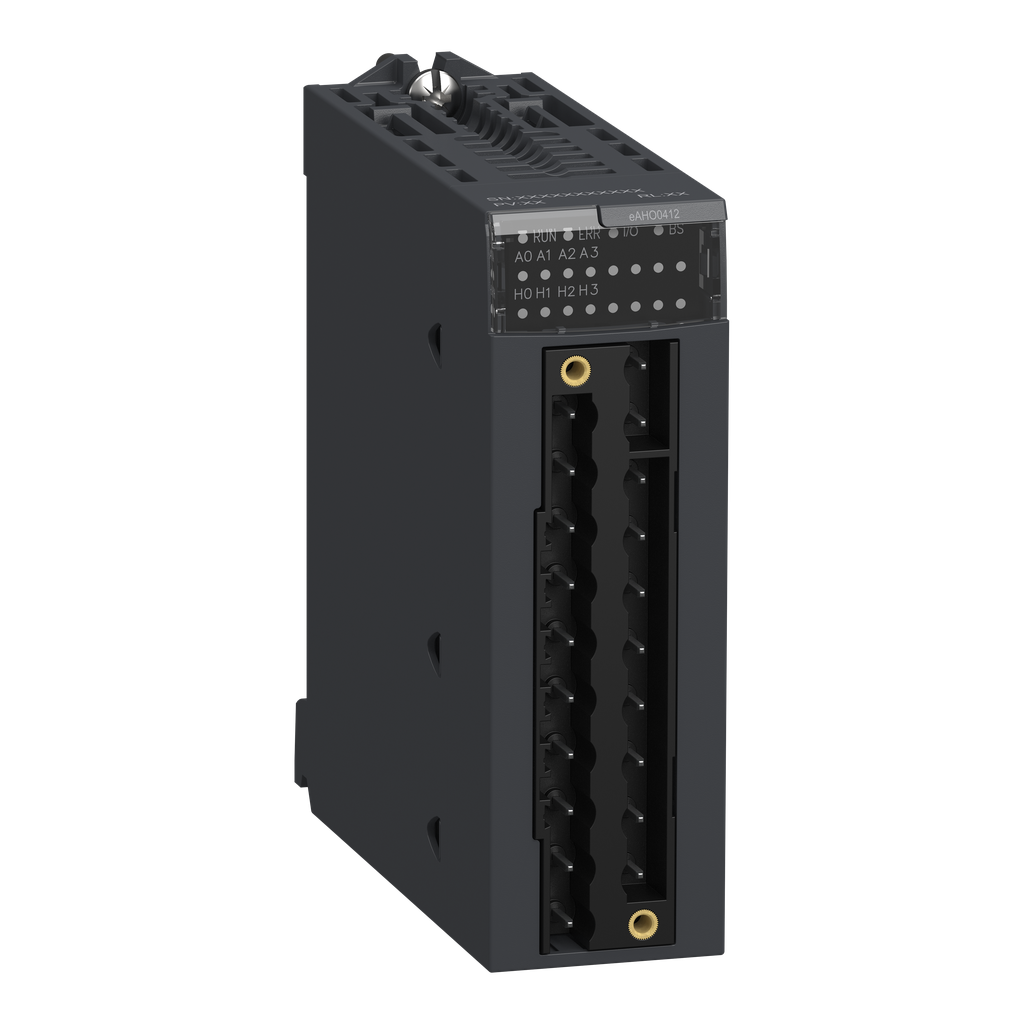

BMEAHO0412C
analog ouput module X80 - 4 outputs HART - current Isolated - for severe environment
Specifications
| Mercury Free | Yes |
|---|---|
| Environmental Disclosure | ENVPEP2311046EN |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2311046EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards |
|
| Product Certifications |
|
| Environmental Characteristic |
|
| Directives |
|
| Ambient Air Temperature For Storage | -40-85 °C |
| Operating Altitude |
|
| Protective Treatment | conformal coating |
| Measurement Error |
|
| Temperature Drift | 45 ppm/°C |
| Analogue Output Type | current 4...20 mA |
| Net Weight | 0.223 kg |
| Electrical Connection |
|
| Topology | point-to-point |
| Input Output Isolation | isolated |
| Isolation Voltage |
|
| Function Available | I/O mapping |
| Analogue Output Number | 4 |
| Load Impedance Ohmic |
|
| Application Specific I/O | HART |
| Analogue Output Resolution | 15 bits + sign |
| Product Compatibility |
|
| Checks | broken wire detection |
| Country of Origin | United States |
| Weight | 0.223 kg |
| Range Of Product | Modicon X80 |
| Product Or Component Type | analog output module |
