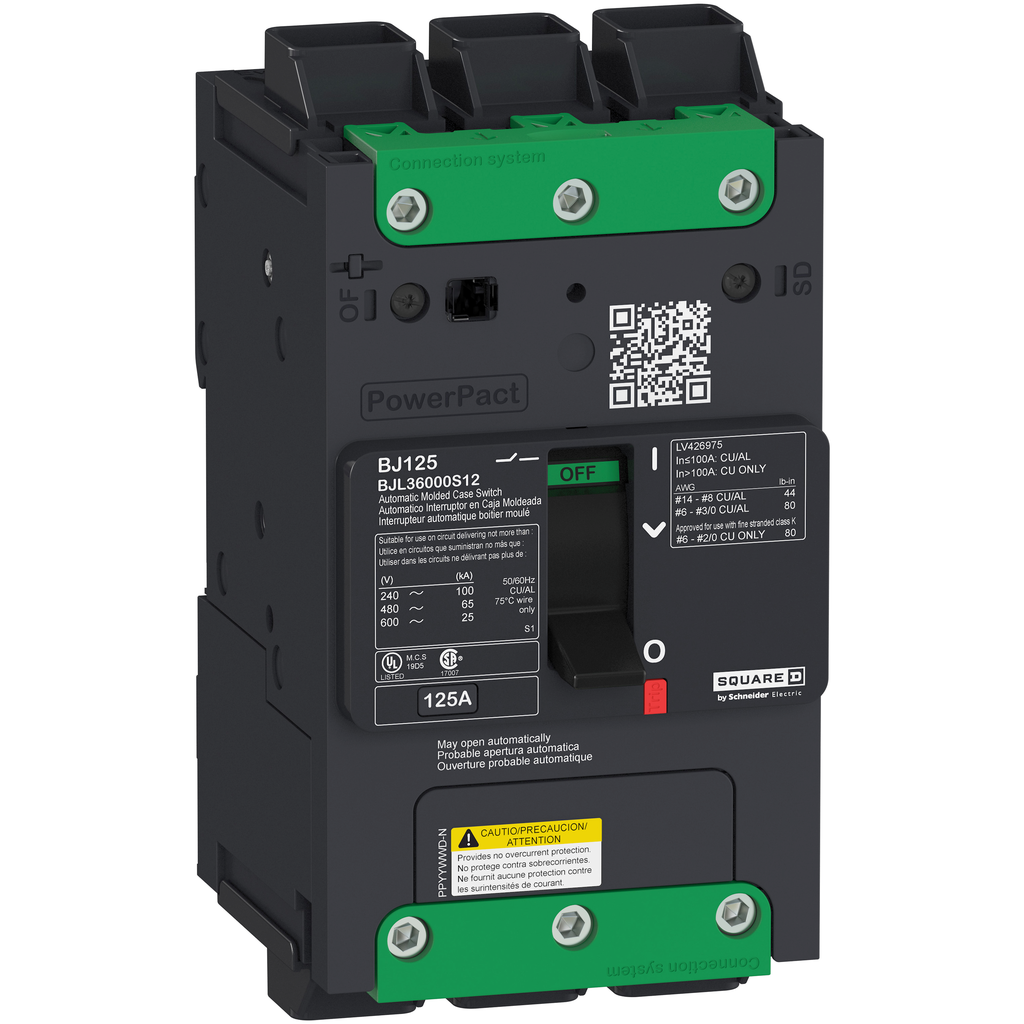

BDL36000S12
Automatic switch, PowerPacT B, 125A, 3 pole, 600VAC, 14kA, EverLink lug, magnetic
Specifications
| Mounting Mode |
|
|---|---|
| Height | 137 mm |
| Connection Pitch | 27 mm |
| Contact Position Indicator | yes |
| [Ue] Rated Operational Voltage | 600Y/347 V AC 50/60 Hz UL 489 |
| Tightening Torque |
|
| Breaking Capacity Code | D |
| 9 Mm Pitches | 9 |
| Magnetic Tripping Current | 1320-1320 A |
| Number Of Slots |
|
| Electrical Connection |
|
| Magnetic Hold Current | 880 A |
| Control Type | toggle |
| Wire Stripping Length | 20 mm |
| Mechanical Durability | 15000 cycles IEC 947-1 Annex K ed 5.2 |
| Short-Circuit Withstand |
|
| Electrical Durability | 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In |
| Local Signalling | for presence of auxiliary contacts flag (green) |
| Poles Description | 3P |
| Quantity Per Set | set of 1 |
| Line Rated Current | 125 A |
| Awg Gauge |
|
| Color | Gray RAL 7016) |
| Width | 81 mm |
| Depth | 89 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2311047EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards | UL 489 |
| Product Certifications | UL |
| Ambient Air Temperature For Storage | -50-85 °C |
| Quality Labels | CE |
| Operating Altitude |
|
| Country of Origin | United States |
| Length | 20 mm |
| Width | 81 mm |
| Height | 137 mm |
| Product Or Component Type | automatic switch |
| Product Name | PowerPact B |
| Range | PowerPact |
| Device Application | distribution |
