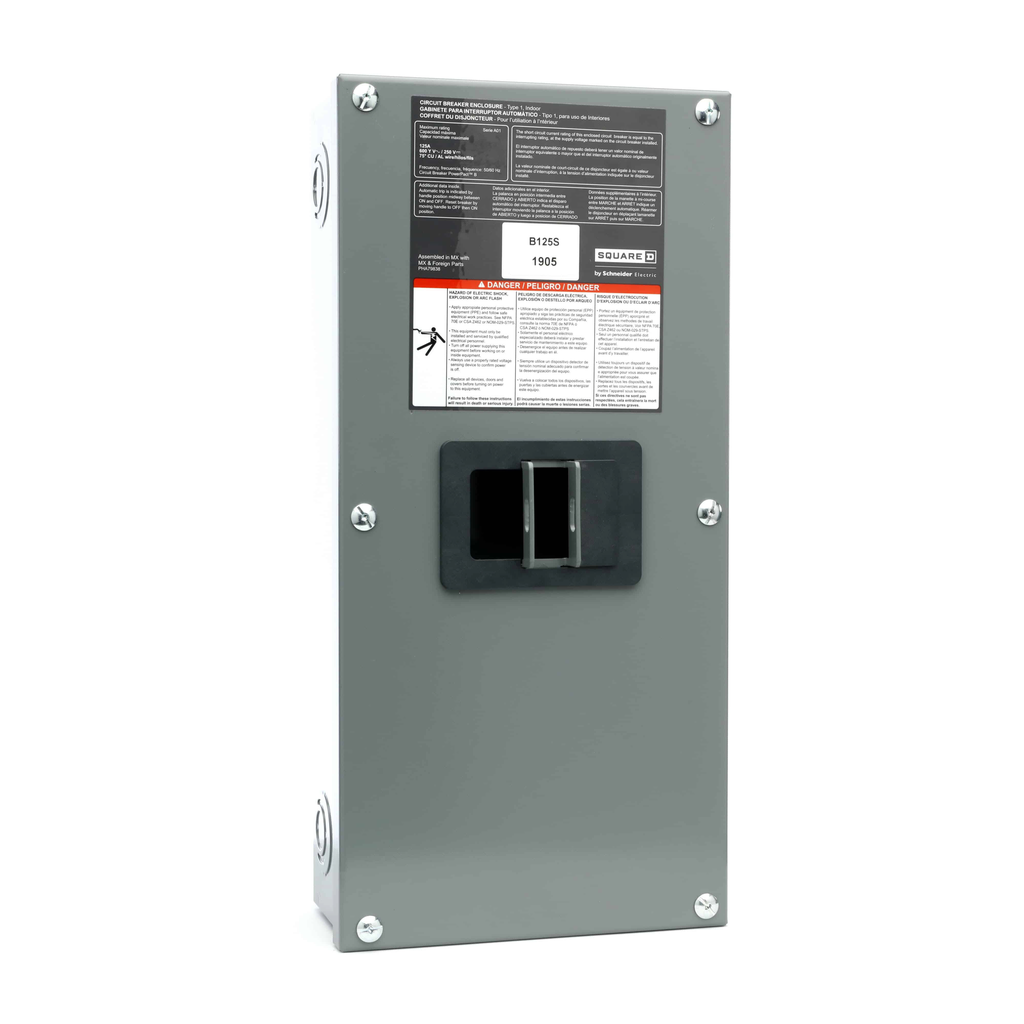

B125S
Circuit breaker enclosure, PowerPacT B, 15A to 100A, NEMA 1, surface mount
Specifications
| Height | 461 mm |
|---|---|
| Device Mounting | surface |
| Enclosure Material | steel |
| Width | 219 mm |
| Depth | 105 mm |
| Country of Origin | Mexico |
| Width | 219 mm |
| Height | 461 mm |
| Circuit Breaker Type | B-Frame |
| Product Destination |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1408006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications | UL Listed |
Documents
- Types 1 and 3R Enclosed Circuit Breaker Installation for PowerPacT B-Frame Circuit Breakers Instructions - PHA79813 (pdf)
- Types 12 and 4X Enclosed Circuit Breaker or Switch Installation for PowerPact B Circuit Breakers - MFR55166 (pdf)
- PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf)
- EcoStruxure Power Asset Performance eGuide - 998-20406243_US_NEMA (pdf)
- PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf)
- Spec Sheet
- PowerPacT B-Frame 15 to 125 A Circuit Breakers - Catalog - 0611CT1603 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
- Digest Catalog 07: Miniature and Molded Case Circuit Breakers - SE-Digest-07-Circuit-Breakers (pdf)
