B100X

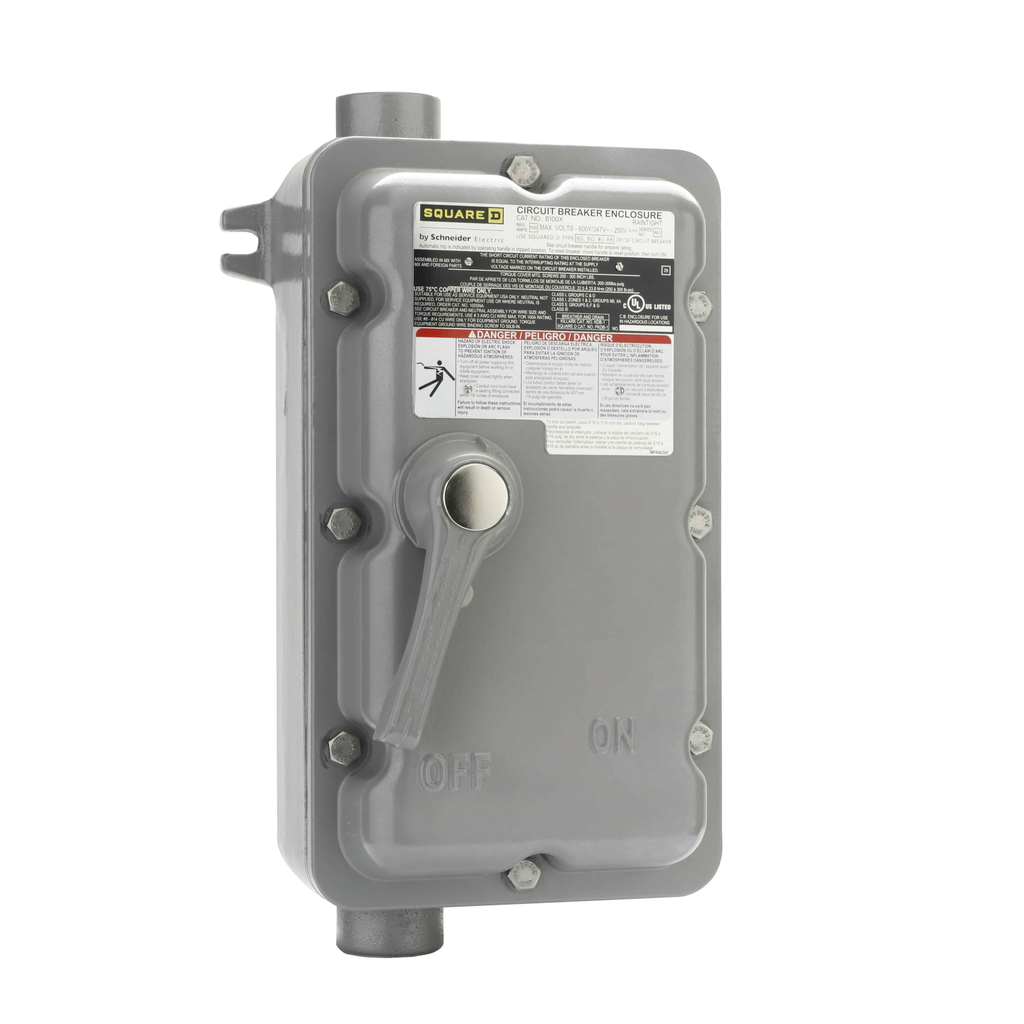

Circuit breaker enclosure, PowerPacT B, 15A to 100A, 2 and 3 pole, NEMA 7/9, cast aluminum, surface mount
Specifications
| Height | 408.0 mm |
|---|---|
| Device Mounting | surface |
| Enclosure Material | Cast Aluminium |
| Width | 245.1 mm |
| Depth | 184.2 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1408006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications | UL Listed |
| Country of Origin | Mexico |
| Width | 245.1 mm |
| Height | 408.0 mm |
| Circuit Breaker Type | B-Frame |
| Product Destination | circuit-breaker B 2P 15-100 A |
