AZ5DE005

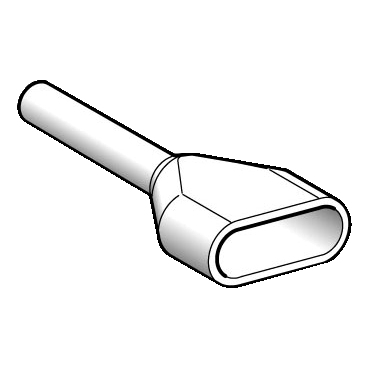

Cable end, Linergy TR cable ends, twin conductor, white, 0.50mm², for insulated cable, medium size, 5 sets of 50
Specifications
| Product Certifications | cCSAus |
|---|---|
| Ambient Air Temperature For Operation | -20-105 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2405008EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2405008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Halogen Content Performance | Halogen free plastic parts product |
| Tube Length | 8 mm |
| Bezel Size | Ø 2.5 x 4.7 mm |
| Number Of Cables | 2 |
| Cable End Type | twin conductor |
| Length | 18.5 mm |
| Net Weight | 0.11 kg |
| Awg Gauge | AWG 22 |
| Color | White |
| Bezel Material | halogen-free plastic |
| Tube Material | Copper ISO 1337 |
| Additional Information | without marker tag holder |
| Tube Diameter | 1.7 mm |
| Country of Origin | Germany |
| Length | 18.5 mm |
| Weight | 0.11 kg |
| Range Of Product | Linergy |
| Standards | NF C 63-023 |
| Product Or Component Type | cable end |
| Type Of Packing | individual bag |
| Cable Cross Section | 0.5-0.5 mm² |
| Cable End Size | medium |
| Quantity Per Set | set of 1000 |
