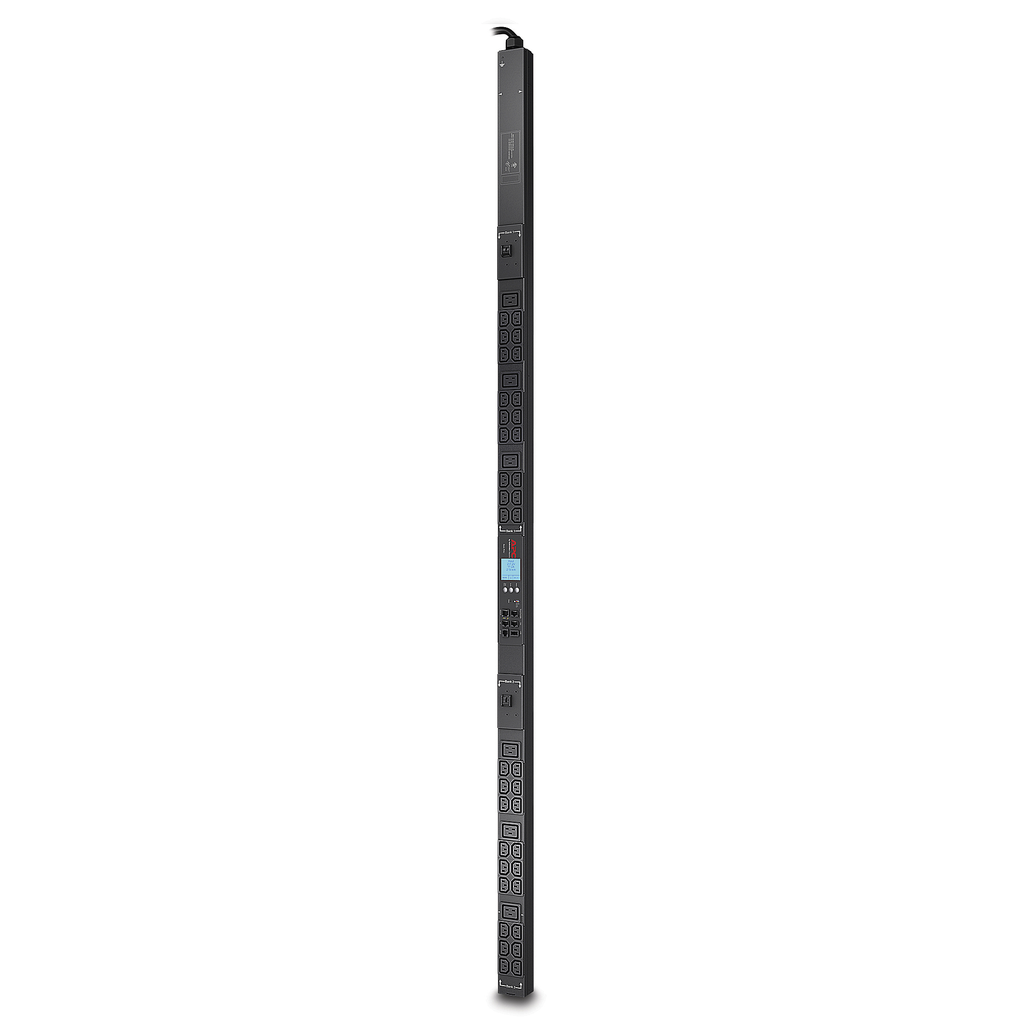

AP8841 – APC NetShelter Rack PDU, Metered, 0U, 5.0kW 200V and 208V 30A, (36) C13 and (6) C19 outlets
AP8841
APC NetShelter Rack PDU, Metered, 0U, 5.0kW 200V and 208V 30A, (36) C13 and (6) C19 outlets

The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8841 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Storage Relative Humidity 5-95 %
Product Certifications
  • METI Denan
  • PSE
  • VDE
Ambient Air Temperature For Operation -5-60 °C
Standards
  • CSA C22.2 No. 60950
  • IEC 60950
  • UL 60950-1
Storage Altitude 0-50000 ft
Ambient Air Temperature For Storage -25-65 °C
Relative Humidity 5-95 %
Operating Altitude 0...10000 ft
Warranty 2 years repair or replace
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1712014_EN
Sustainable Offer Status Green Premium product
Take-Back Take-back program available
Lead Free Yes
Optimized Energy Efficiency Energy efficient product
Circularity Profile ENVEOLI1712014_EN
Eu Rohs Directive Compliant with Exemptions
Height 179.1 cm
Usb Compatible No
Net Weight 6.84 kg
Mounting Location side
Main Input Voltage
  • 200 V
  • 208 V
Input Frequency 50/60 Hz
Mounting Mode rack-mounted
Number Of Rack Unit 0U
Line Rated Current 24 A
Mounting Position vertical
Width 5.6 cm
Depth 4.4 cm
Lead Time Usually in Stock
Presentation APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (36) IEC 60320 C13 and (6) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra-low profile. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable.
Country of Origin India
Length 9.84 ft
Width 5.6 cm
Height 179.1 cm
Weight 6.84 kg
Number Of Cables 1
Cable Length 9.84 ft
Product Or Component Type PDU
Color Black
Provided Equipment
  • Installation guide
  • Rack Mounting brackets
  • Serial configuration cable
  • Safety guide
Documents
