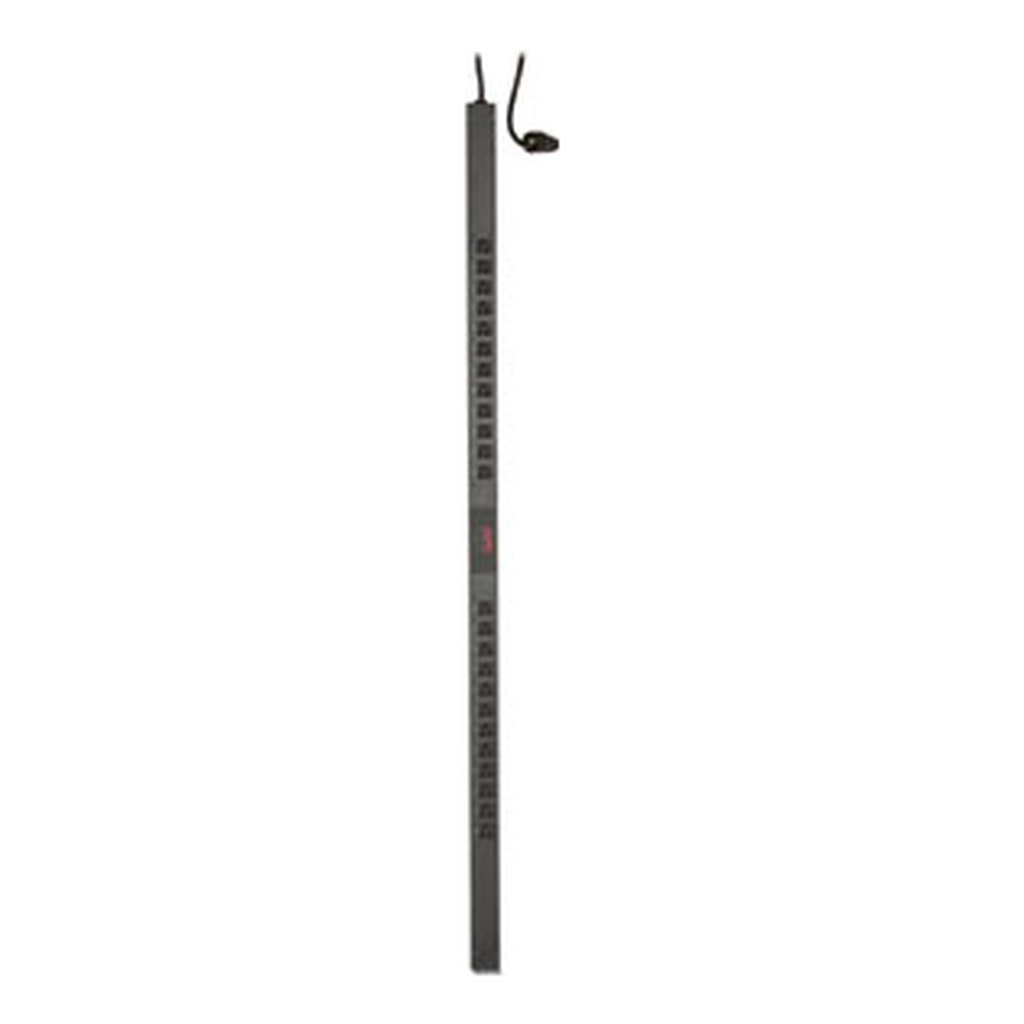

AP7530
Rack PDU, Basic, Zero U, 20A, 120V, (24)5-20
Specifications
| Storage Relative Humidity | 5-95 % |
|---|---|
| Product Certifications |
|
| Ambient Air Temperature For Operation | -5-45 °C |
| Standards |
|
| Storage Altitude | 0-50000 ft |
| Ambient Air Temperature For Storage | -25-65 °C |
| Relative Humidity | 5-95 % |
| Operating Altitude | 0...15000 ft |
| Warranty | 2 years repair or replace |
| Environmental Disclosure | ENVPEP1512009_EN |
| Sustainable Offer Status | Green Premium product |
| Take-Back | Take-back program available |
| Lead Free | Yes |
| Optimized Energy Efficiency | Energy efficient product |
| Circularity Profile | ENVEOLI1512009_EN |
| Eu Rohs Directive | Compliant |
| Height | 161.9 cm |
| Net Weight | 4.86 kg |
| Mounting Location | side |
| Main Input Voltage |
|
| Input Frequency | 50/60 Hz |
| Mounting Mode | rack-mounted |
| Number Of Rack Unit | 0U |
| Line Rated Current | 16 A |
| Mounting Position | vertical |
| Width | 5.6 cm |
| Depth | 4.4 cm |
| Lead Time | Usually in Stock |
| Country of Origin | India |
| Length | 10 ft |
| Width | 5.6 cm |
| Height | 161.9 cm |
| Weight | 4.86 kg |
| Number Of Cables | 1 |
| Cable Length | 10 ft |
| Product Or Component Type | PDU |
| Color | Black |
| Provided Equipment |
|
