AM1EC200

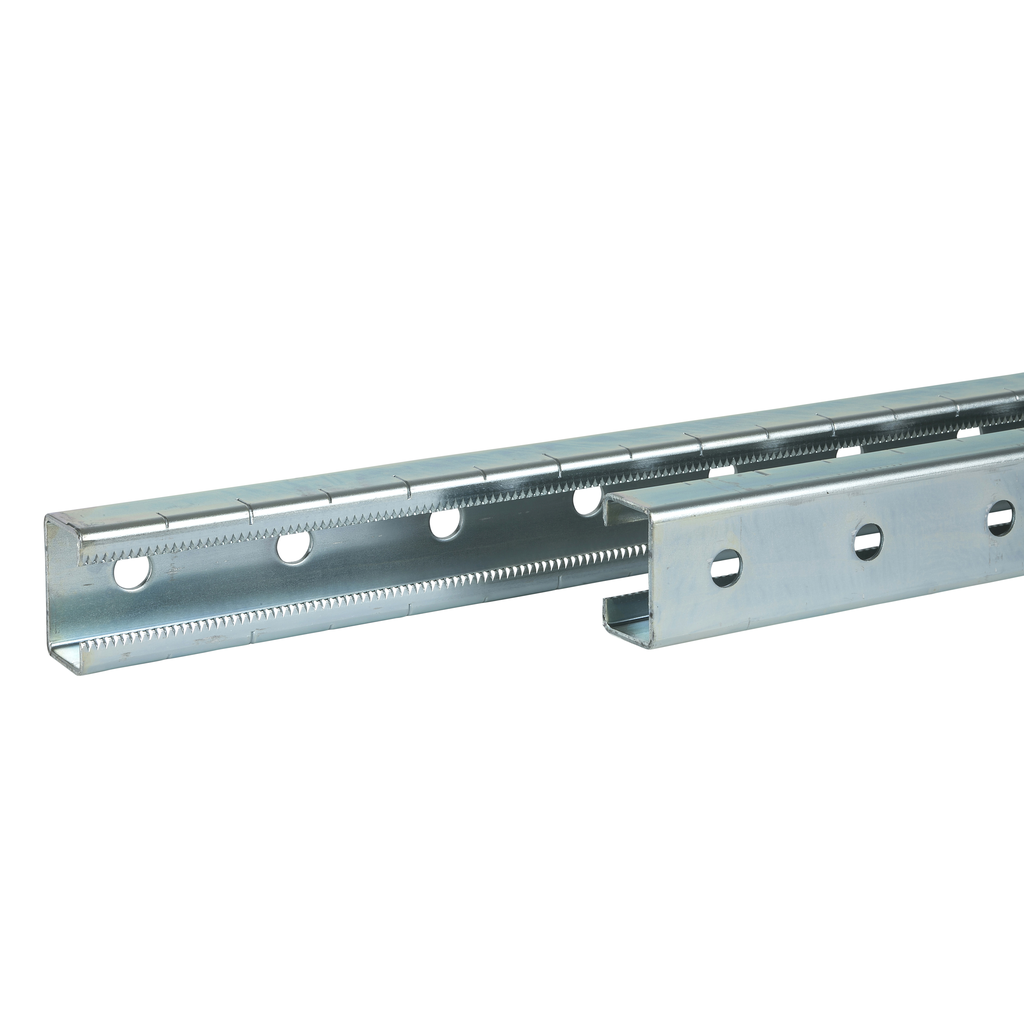

PREFORMED FIXING RAIL
Spacial SM preformed fixing rail. H is 2000 x W is25 x L is2000 mm. horizontal fixing centres is 1550 mm. Notched mounting rail. For enclosure of height 1600 mm, width 1600 mm. star-delta starter component is uprights, Mounting rails. Set of 2 or 4. Steel coated with zinc chromate surface treatment. Motor Power is 375,100,110,160,280, 250, 315, 200, 220, 90, 185 kW.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height |
|
|---|---|
| Number Of Devices |
|
| Horizontal Fixing Centres | 1550 mm |
| Surface Treatment | zinc chromate |
| Thickness | 2 mm |
| Length | 2000 mm |
| Material | steel coated with zinc chromate |
| Net Weight |
|
| Motor Starter Type | star-delta starters |
| Type Of Rail | notched |
| Vertical Fixing Centres | 1500 mm |
| Motor Power Kw |
|
| Assembly Style | for assembly |
| Width |
|
| Depth | 25 mm |
| Product Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Italy |
| Length | 2000 mm |
| Width | 0 mm |
| Height | 2000 mm |
| Weight | 2.4 kg |
| Accessory / Separate Part Category | mounting accessories |
| Enclosure Accessory Description | notched mounting rail |
| Star-Delta Starter Component |
|
| Quantity Per Set |
|
| Accessory / Separate Part Type | notched uprights |
| Warranty | 18 months |
