AL800M23K4

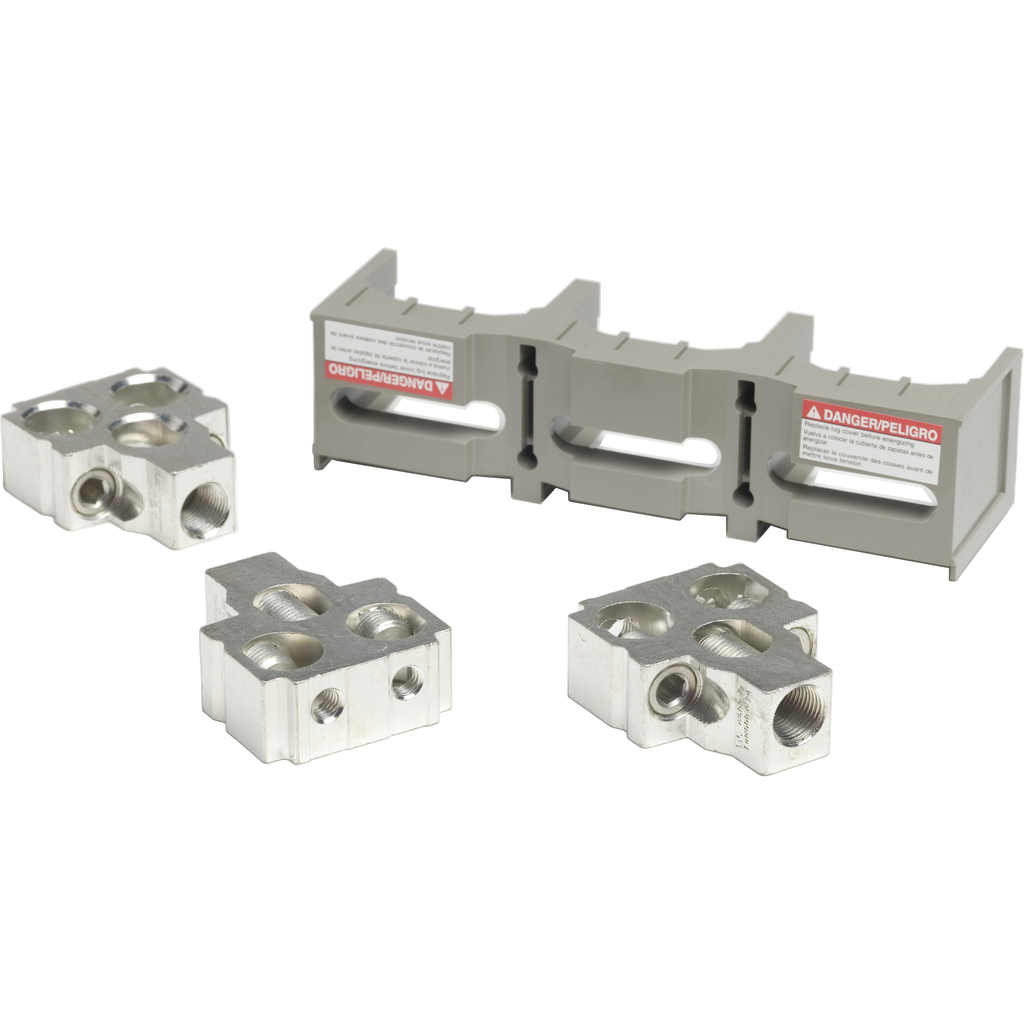

Circuit breaker accessory, PowerPacT M/P, lug kit, mechanical, 800A, 3/0 AWG–500kcmil Cu or Al
Square D™ FA/LA Molded Case Circuit Breakers is designed to protect electrical systems from damage caused by overloads. Their primary functions are to provide a means to automatically open a circuit under overload or short circuit conditions or manually, when deemed necessary. They are certified and adhere to the datasheet specfications by the Underwriter Laboratories (UL).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407012EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407012EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Tightening Torque | 50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil) |
| Material | aluminium |
| Line Rated Current | 800-800 A |
| Mounting Mode |
|
| Kcmil Size | 500 kcmil |
| Location Of Connection |
|
| Awg Gauge | AWG 3/0...500 kcmil aluminium/copper |
| Country of Origin | United States |
| Range Of Product |
|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | mechanical lug |
| Quantity Per Set | set of 4 |
