AL600LI5

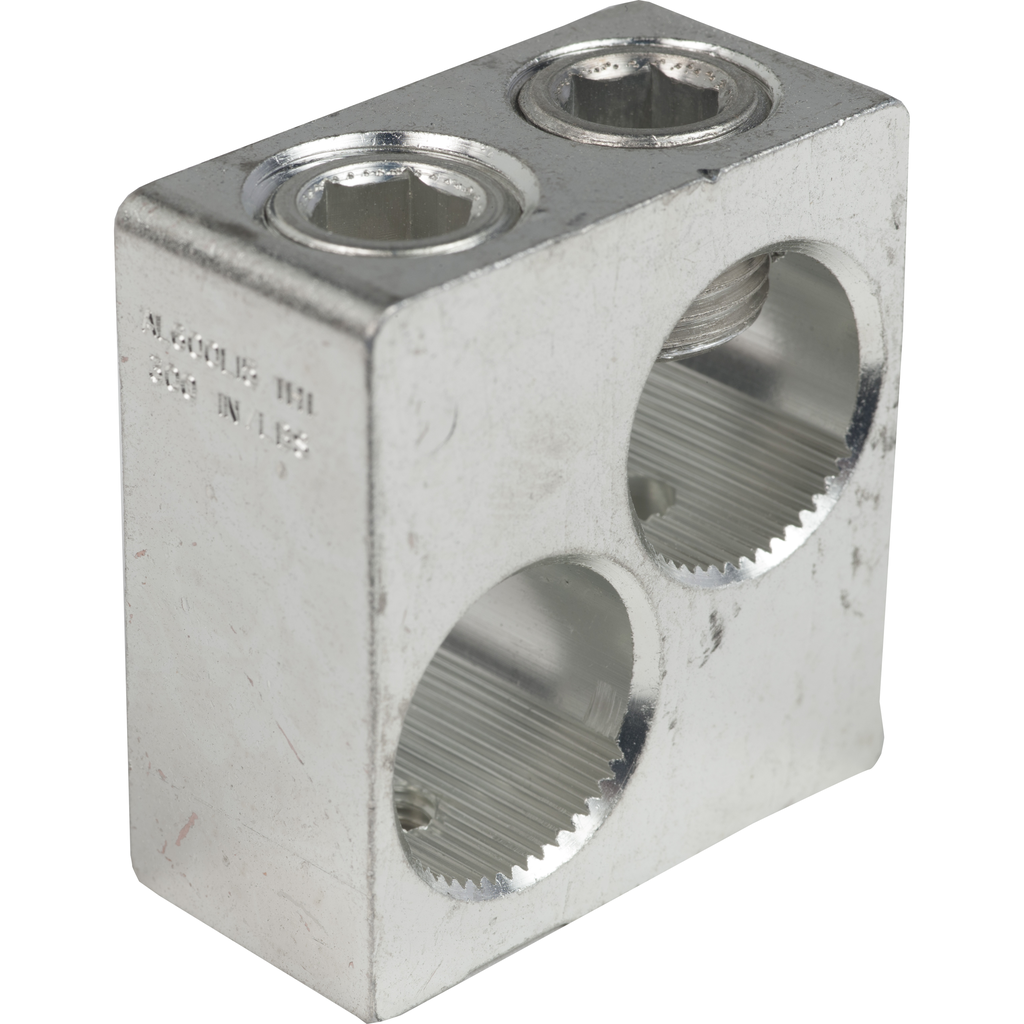

Circuit breaker accessory, LI/LC, lug kit, mechanical, 400A, 2 to 4/0 to 500kcmil, Al
Square D LI molded case circuit breakers provide basic thermal magnetic protection. Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions. This connector accessory is designed to be used with LI molded circuit breakers with basic thermal magnetic protection with sensor rating 300 to 600A. Terminal wire range for this accessory is (2) 4/0 AWG - 500 kcmil aluminium or copper Connector accessory is coming as 1 lug per kit
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407012EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407012EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Material | aluminium |
| Line Rated Current | 300-600 A |
| Poles Description | 2P |
| Kcmil Size | 500 kcmil |
| Location Of Connection |
|
| Awg Gauge |
|
| Country of Origin | United States |
| Circuit Breaker Type |
|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | mechanical lug |
| Quantity Per Set | set of 1 |
