AL600LF52K3

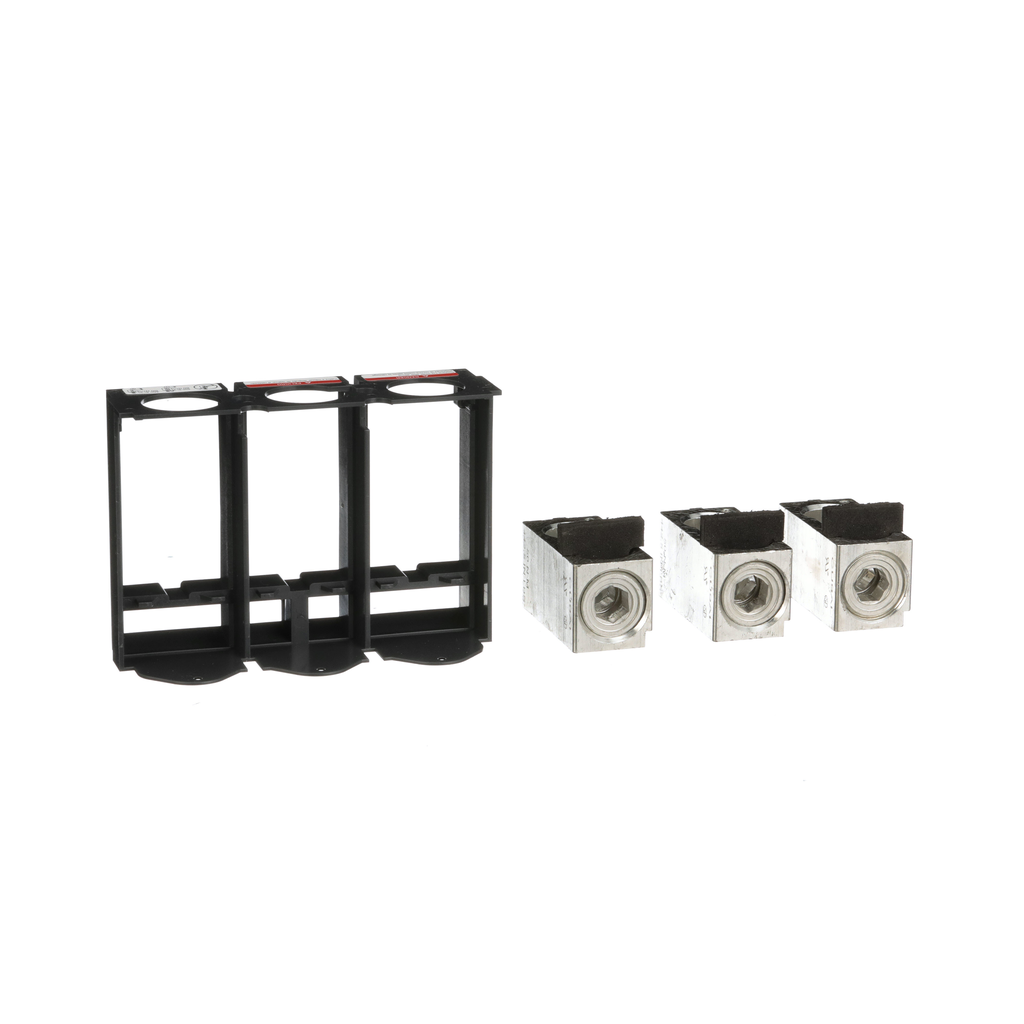

Circuit breaker accessory, PowerPacT L, lug kit, mechanical, 400A to 600A, 3 pole, aluminium, qty 3
This mechanical lug is a connection accessory is a PowerPacT Multistandard circuit breaker. This lug is for a 3 pole, PowerPacT L-Frame breakers. With a rated current of 400-600A, this lug is made of aluminum. The current-limiting attributes of PowerPact H-, J-, and L-frame circuit breakers provide greater protection for downstream devices by limiting the let-through current in the event of a fault. This product comes in a set of 3.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Number Of Cables | 2 |
|---|---|
| Material | aluminium |
| Line Rated Current | 400-600 A |
| Mounting Mode | by screws |
| Awg Gauge | AWG 3/0 |
| Poles Description | 3P |
| Cable Material |
|
| Kcmil Size | 500 kcmil |
| Quantity Per Set | set of 3 |
| Location Of Connection |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407012EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407012EN |
| Sustainable Packaging | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | United States |
| Range Of Product | PowerPact multistandard |
| Range Compatibility | PowerPact PowerPact Multistandard circuit breaker |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | mechanical lug |
| Range | PowerPact |
| Product Compatibility | PowerPact L-Frame |
| Warranty | 18 months |
Documents
- Mechanical Lug Kits for PowerPacT L-Frame and TeSys GV6 Circuit Breakers Installation Instructions - S1A14748 (pdf)
- PowerPacT L-Frame Mission Critical Circuit Breaker Installation Instructions - JYT65476 (pdf)
- TeSys GV6PB Motor Protector Circuit Breaker Installation Instructions - GDE34193+TeSys+GV6PB (pdf)
- PowerPacT D-Frame Circuit Breaker Installation Instructions - BBV49204 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- IEC Contactors and Starters: Section 17 - Digest 179 (2024) - IEC-Contactors-Digest-Catalog-0100CT2401-SEC-17 (pdf)
- TeSys GV5PB/GV6PB Motor Protection Circuit Breakers - 8536CT1901R04_20 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
