AL400L61K4

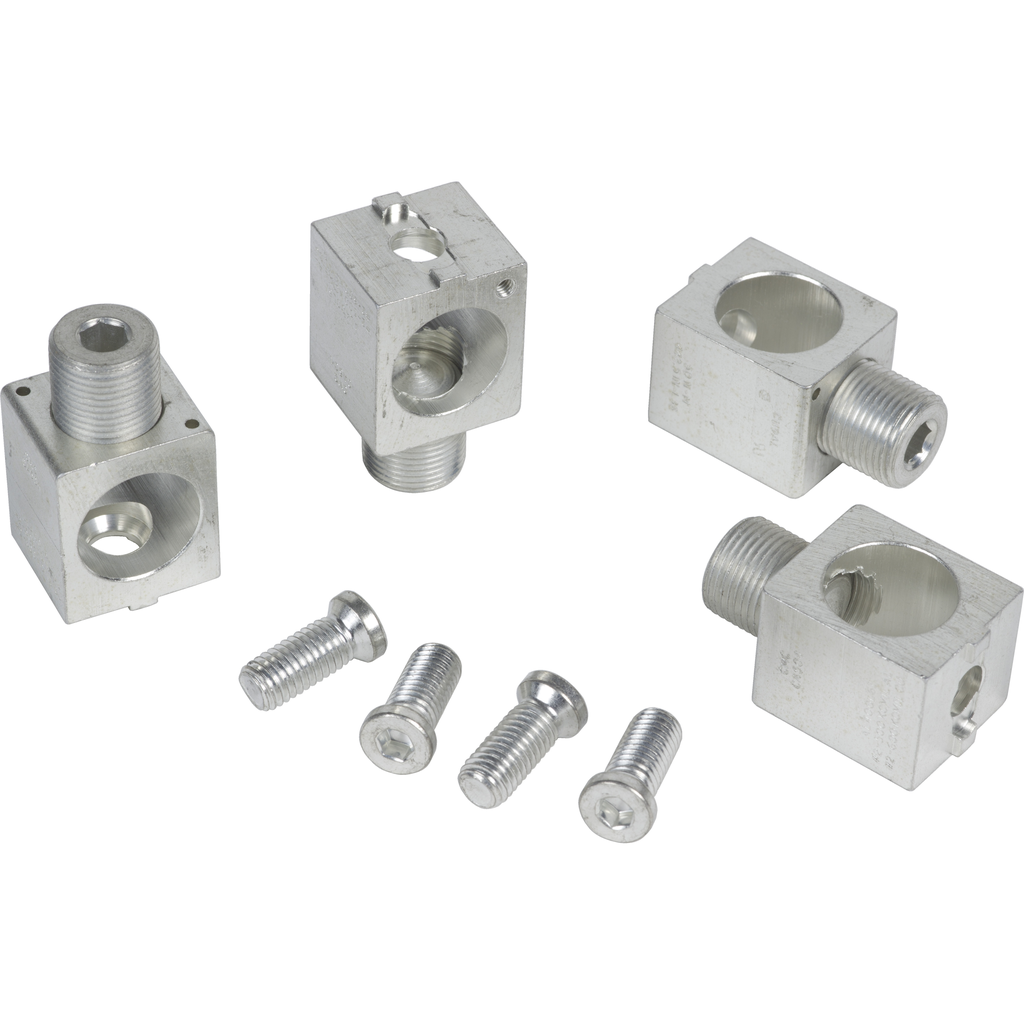

Circuit breaker accessory, PowerPacT L, lug kit, mechanical, 250A, 4 pole, Al
This lug kit is a connector accessory for PowerPact L-Frame circuit breakers. This connector accessory is made of aluminum and for a 4 pole circuit breaker. This accessory has a rated current of 250 amps. The lug kit are for terminal connection and will accept a wire size of AWG 2 with a 600 kcmil. This product complies with UL standards. This lug can be used only on standard circuit breakers. This lug has a tightening torque of 50-50 Nm, with a cable cross section of 35-240 mm².
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407012EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407012EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Tightening Torque | 50-50 N.m 35-240 mm² (AWG 2...500 kcmil) |
| Material | aluminium |
| Line Rated Current | 250-250 A |
| Mounting Mode | unit mount |
| Awg Gauge | AWG 2...600 kcmil copper |
| Country of Origin | France |
| Range Of Product | PowerPact L |
| Product Or Component Type | mechanical lug |
| Quantity Per Set | set of 4 |
