AL1200P24TK
Circuit breaker accessory, PowerPacT P, lug kit, mechanical, 1200A, 3/0 AWG to 500kcmil, unit mount and I-Line, Al

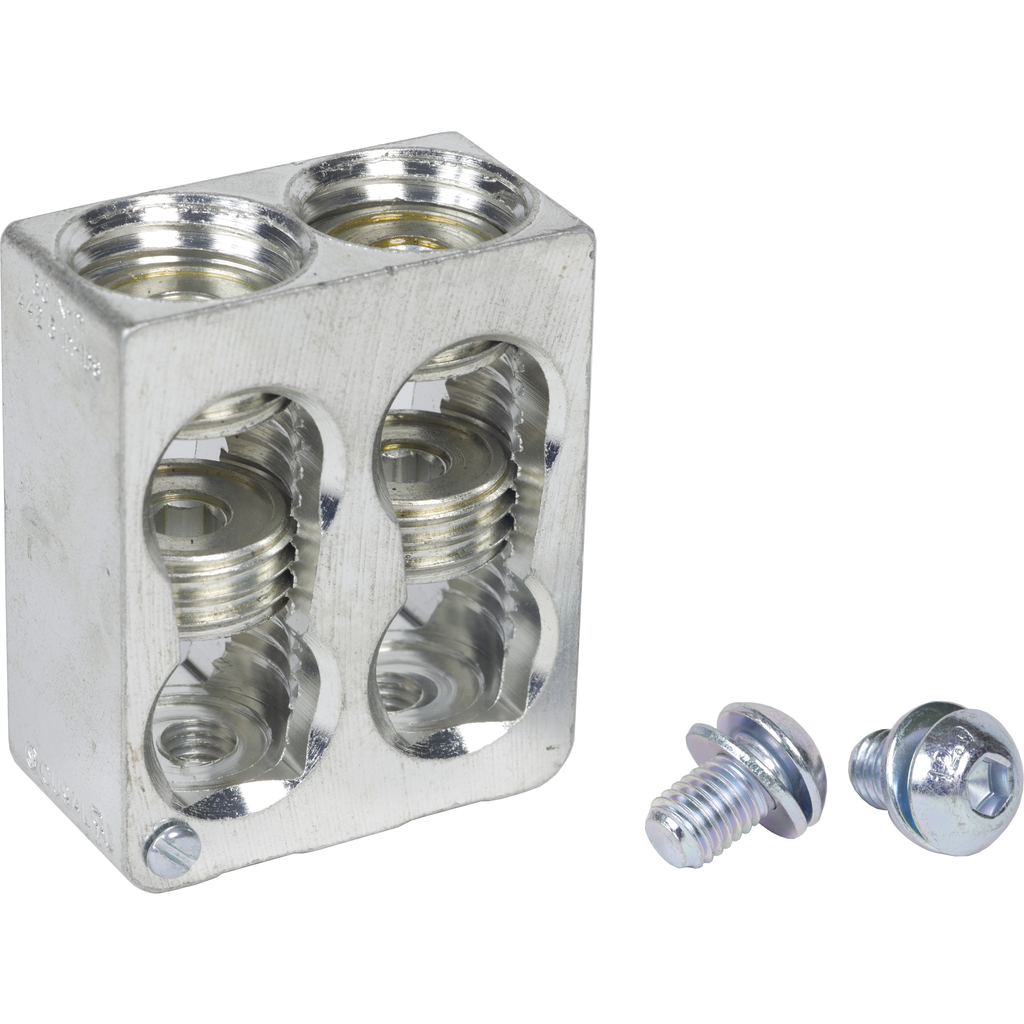

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT M and P circuit breakers. These aluminum lugs are rated for 1200A. The lugs accept 3/0 AWG to 500kcmil aluminum and copper conductors. These lugs also have a tapped hole for a control wire. These lugs comply with UL and CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL |
|---|---|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407012EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407012EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Line Rated Current | 1200-1200 A |
| Tightening Torque | 1-1.3 N.m |
| Kcmil Size | 500 kcmil |
| Location Of Connection | terminal |
| Awg Gauge | AWG 3/0...500 kcmil aluminium |
| Material | aluminium |
| Country of Origin | United States |
| Range Of Product | PowerPact P |
| Circuit Breaker Type | standard |
| Product Or Component Type | lug connector |
| Circuit Breaker Name | PowerPact M or P |
