AK5PA232S

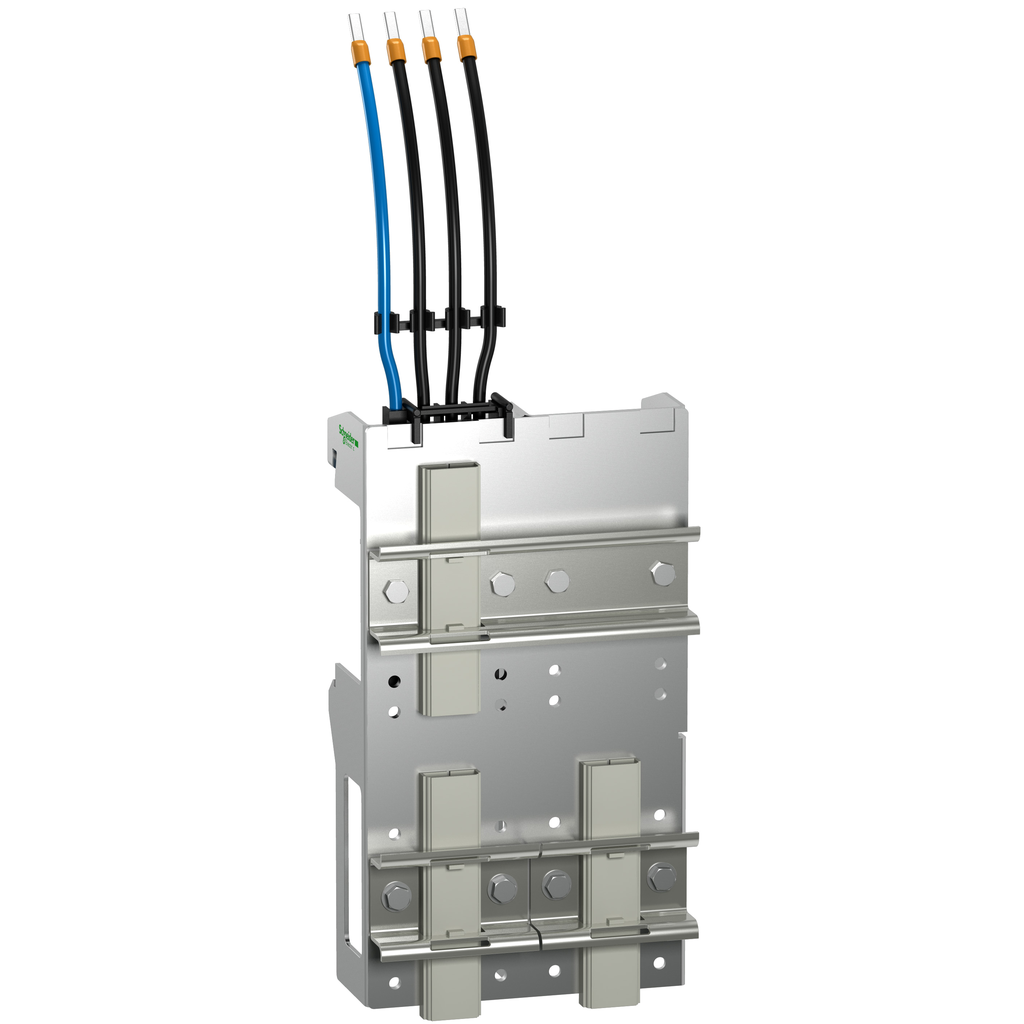

Mounting plate, Linergy HK, 3P, 25A, 4.4mm², 190x54x61mm
Specifications
| Product Certifications |
|
|---|---|
| Standards | IEC 60439 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Sustainable Packaging | Yes |
| Eu Rohs Directive | Compliant |
| 9 Mm Pitches | 12 |
| Net Weight | 0.61 kg |
| [Ui] Rated Insulation Voltage | 690 V IEC 60439-1 |
| Country of Origin | France |
| Weight | 0.61 kg |
| Height | 190 mm |
| [Ith] Conventional Free Air Thermal Current | 25 A |
| Product Or Component Type | mounting plate |
| Product Name | HK |
| Range | Linergy |
| Number Of Cables | 3 4-4 mm² 105 °C |
| Poles Description | 3P |
| Width | 106 mm |
| Depth | 63 mm |
| I²T On Activation | 200000 A².s |
