AK5JB149 - Busbar, Linergy HK, 160A, 4 conductors, L992mm, for mounting in enclosure W1200mm

AK5JB149

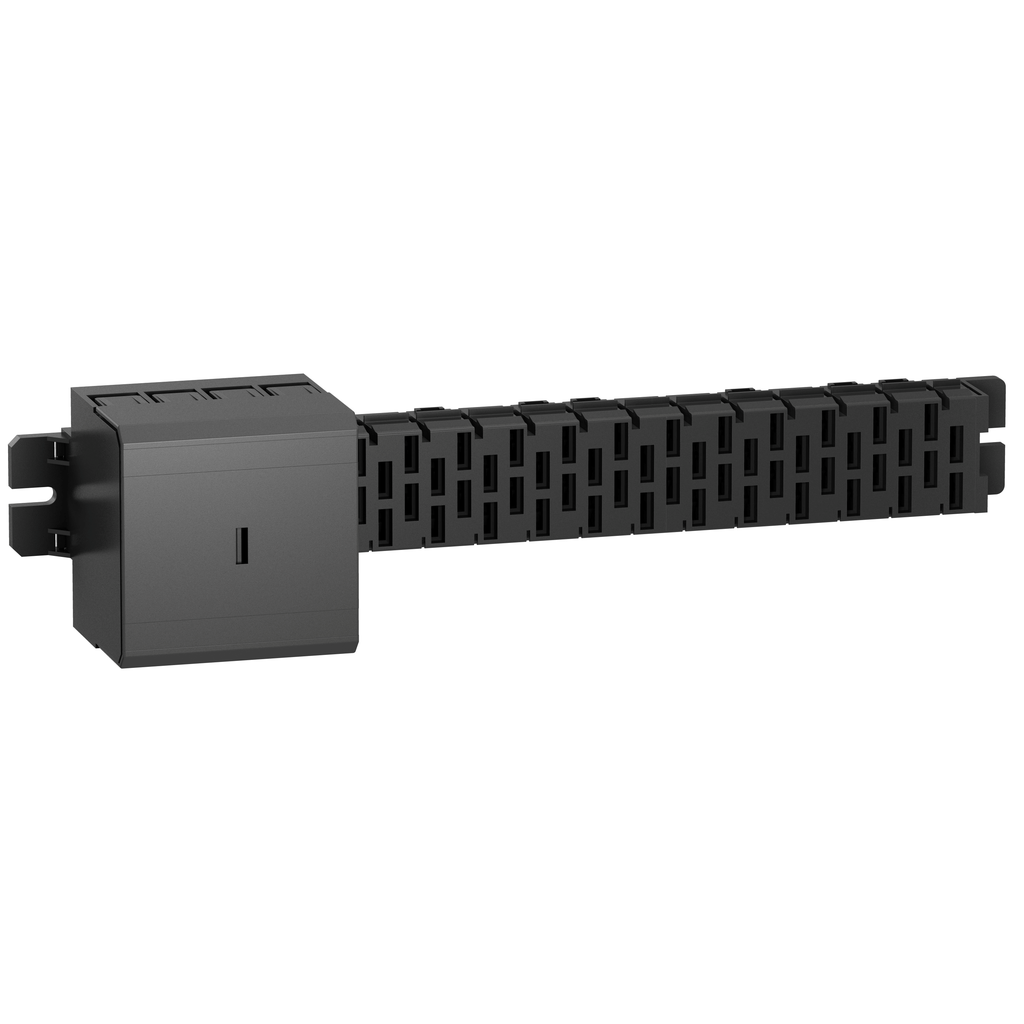

Busbar, Linergy HK, 160A, 4 conductors, L992mm, for mounting in enclosure W1200mm

Simple and quick products to mount and wire up automated control and distribution panels. It is made of 4 conductors with 48 tap-off units at 18 mm intervals. It is suitable for mounting in 1200 mm enclosure width.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	DNV CSA LROS (Lloyds register of shipping) UL
Standards	IEC 60439
Ip Degree Of Protection	IPxx B conforming to IEC 60529
Fire Resistance	850 °C IEC 60695
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Compliant
Bar Width	45 mm
Network Frequency	50/60 Hz
Protection Type	aM fuses In = 160 A, Isc = 100 kA, Ie = 160 A gF fuses In = 160 A, Isc = 100 kA, Ie = 160 A NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A
Connections - Terminals	connector 2.5-70 mm² flexible with cable end connector 2.5-70 mm² rigid
Net Weight	1.9 kg
Mounting Position	vertical using side stop AK5BT01 on mounting plates AK5PA horizontal
Flame Retardance	V0 conforming to UL 94
[Ui] Rated Insulation Voltage	600 V CSA 600 V UL 690 V IEC 60439-1
Tightening Torque	10 N.m
Width	81 mm
Depth	82 mm
I²T On Activation	10000000 A².s
Peak Current	25 kA
Country of Origin	France
Length	992 mm
Width	81 mm
Weight	1.9 kg
[Ue] Rated Operational Voltage	400 V off-load plugging-in and unplugging, with supply switched on)IEC 60439-1 480 V off-load plugging-in and unplugging, with supply switched on)CSA 480 V off-load plugging-in and unplugging, with supply switched on)UL 600 V plugging-in and unplugging, with supply switched off)CSA 600 V plugging-in and unplugging, with supply switched off)UL 690 V plugging-in and unplugging, with supply switched off)IEC 60439-1
Network Type	AC
Product Or Component Type	busbar
Bar Length	992 mm
Product Name	HK
Range	Linergy
Enclosure/Cubicle Width	1200 mm
[Ie] Rated Operational Current	160 A 35 °C
Number Of Tap-Offs	48
Number Of Conductors	4
Device Application	distribution
