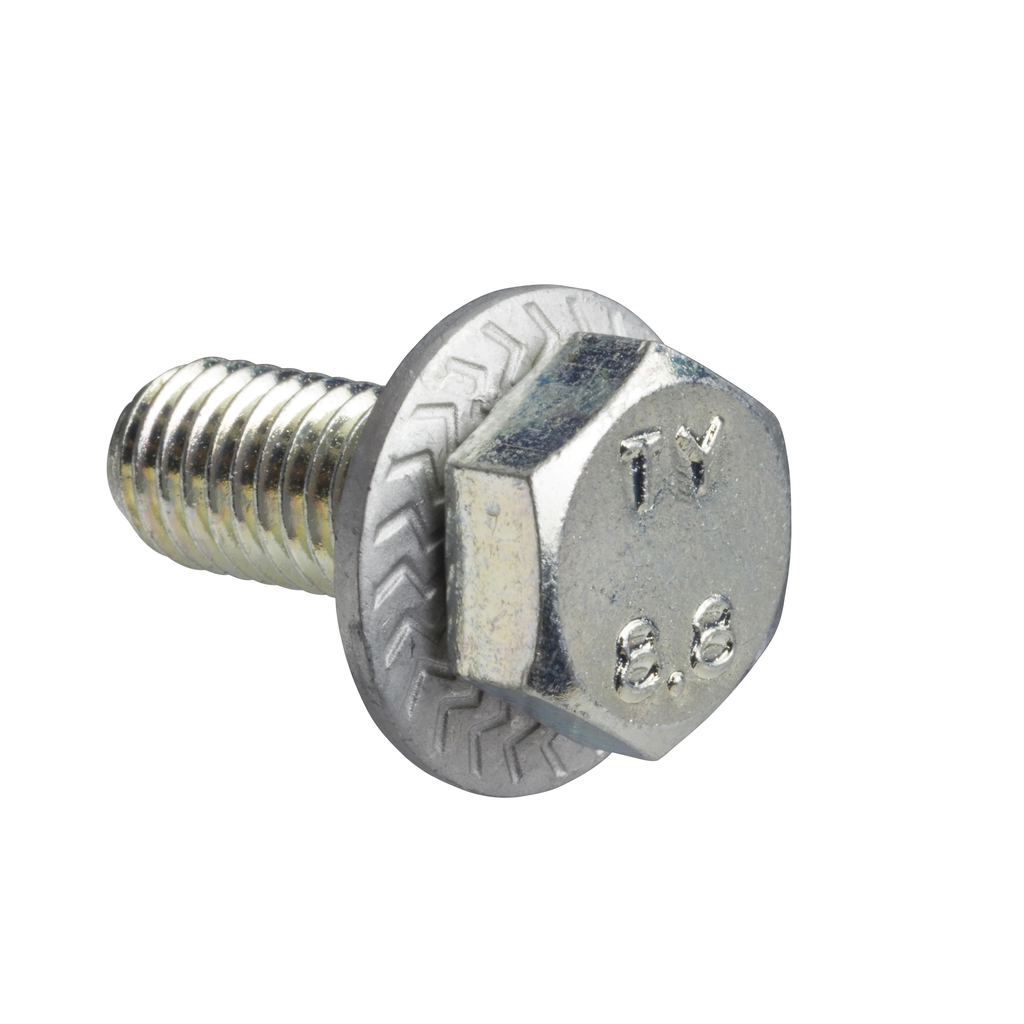

AF1VC820
FIXING SCREW
Specifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Germany |
| Length | 20 mm |
| Weight | 0.024 kg |
| Accessory / Separate Part Category | mounting accessories |
| Star-Delta Starter Component | 1/4 turn sliding clip nuts and corresponding bolts |
| Quantity Per Set | set of 10 |
| Iso Thread | M8 |
| Number Of Devices | 8 |
| Mounting Support | notched AM1-EC rail |
| Threaded Length | 20 mm |
| Net Weight |
|
| Fixing Of Mechanism | screws |
| Motor Starter Type | star-delta starters |
| Head Mounting | M8 x 20 |
| Motor Power Kw |
|
| Assembly Style | for assembly |
| Provided Equipment | washer |
| Product Compatibility | for uprights AM3-EC |
| Shape Of Screw Head | hexagonal |
| Warranty | 18 months |
