ACF38EC

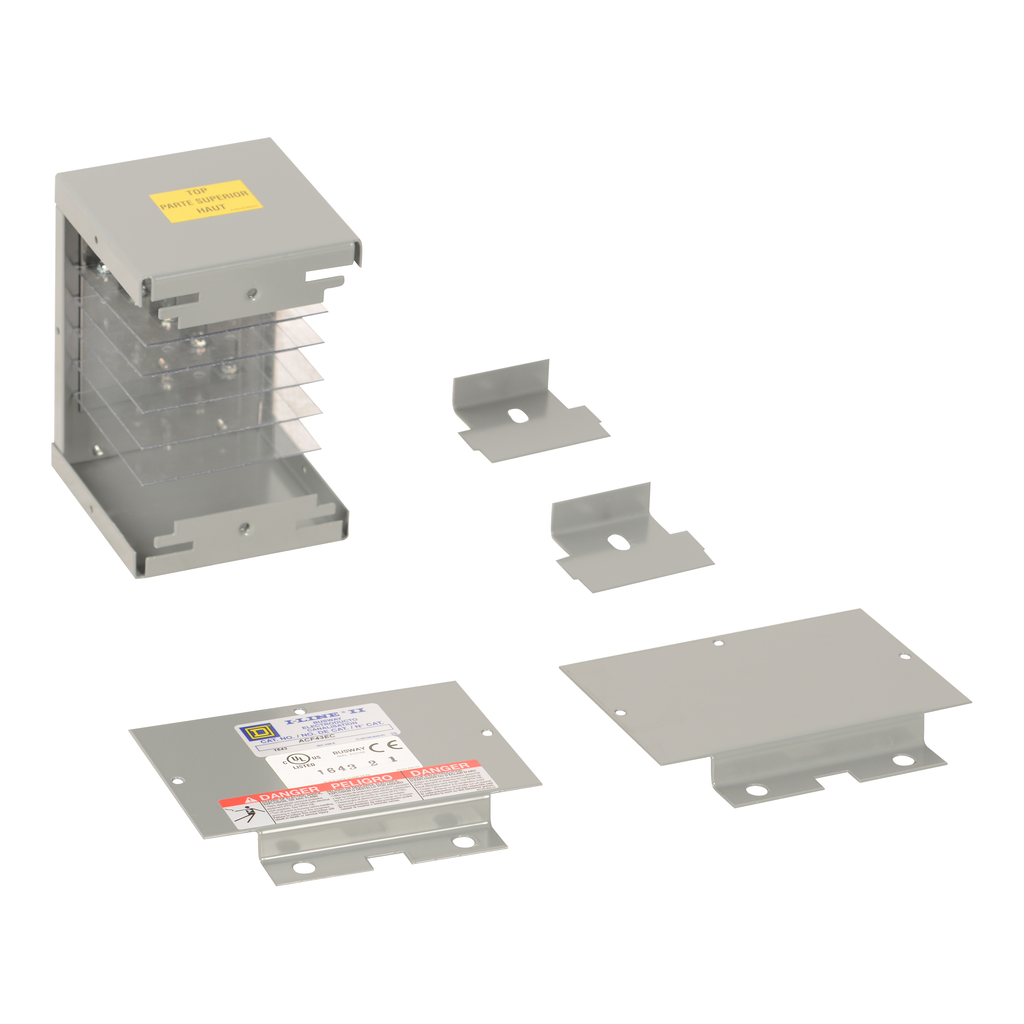

End Closure, I-Line Busway, max 800A rated, end caps, copper
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. This end enclosure line current rating is 800A with copper conductors, that are idle for commercial or industrial applications. As an accessory, its design is to house and support the insulation of busbars from potential faults. UL has certified the products performance to the data specifications listed in the product datasheet.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Standards |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2301013 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| [Ue] Rated Operational Voltage | 600 V AC/DC 50/60 Hz |
| Height | 7.06 in |
| Length | 4.34 in |
| Product Destination | busbar trunking 800-800 A copper end caps |
| Width | 1 in |
| Country of Origin | United States |
| Length | 4.34 in |
| Width | 1 in |
| Height | 7.06 in |
| Range Of Product | I-Line |
| Product Or Component Type | End Closure |
