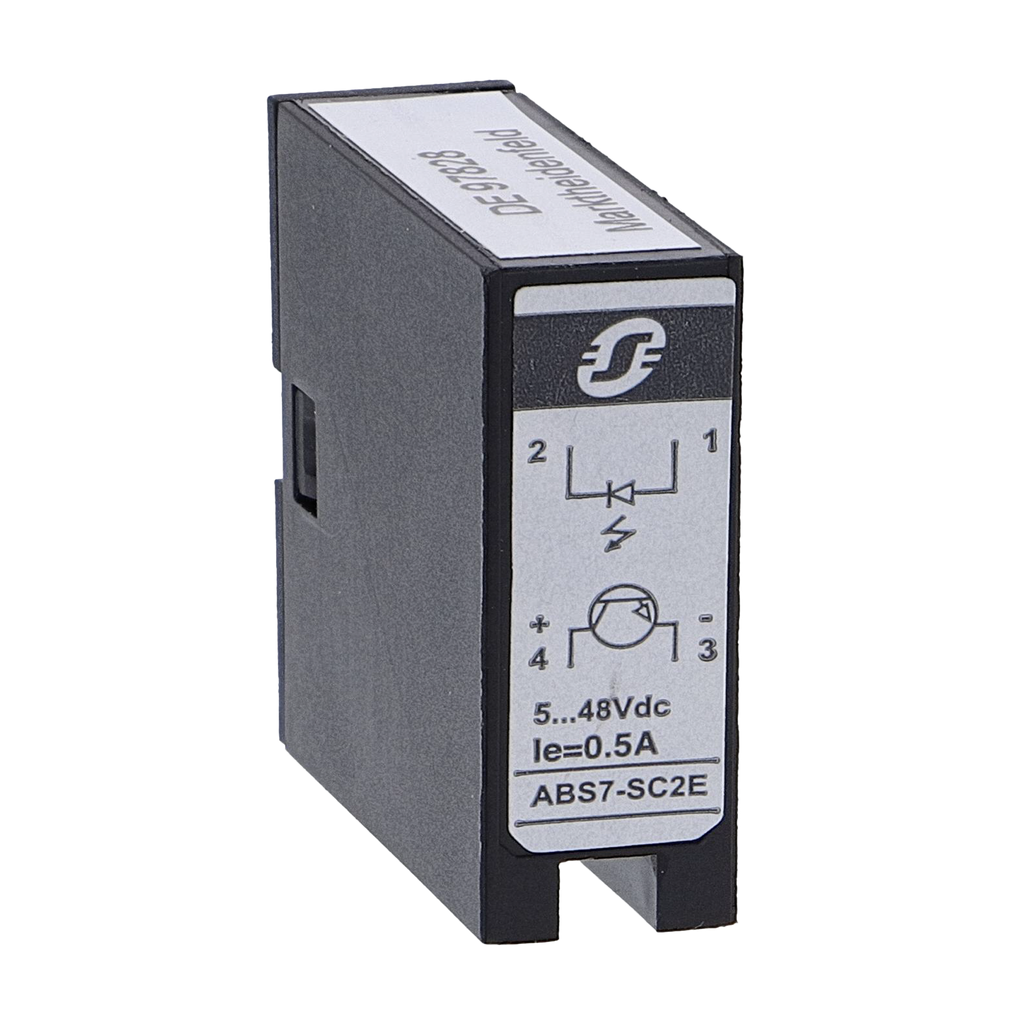

ABS7SC2E
plug-in solid state relay - 10 mm - output - 5..48 V DC - 0.5 A
Specifications
| Relay Type | output relay |
|---|---|
| Range Of Product | Advantys Telefast ABE7 |
| Quantity Per Set | set of 4 |
| Product Or Component Type | plug-in solid state relay |
| Warranty | 18 months |
| Voltage State 1 Guaranteed | 18.6 V DC |
| Current State 0 Guaranteed | 0.4 mA DC |
| Discrete Input Voltage | 24 V DC |
| Response Time |
|
| Current State 1 Guaranteed | 2.9 mA DC |
| Discrete Output Current | 500 mA |
| Product Compatibility |
|
| Voltage State 0 Guaranteed | 3.8 V DC |
| Net Weight | 0.016 kg |
| Width Pitch Dimension | 10 mm |
| Discrete Output Voltage | 5...48 V DC |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1409004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
