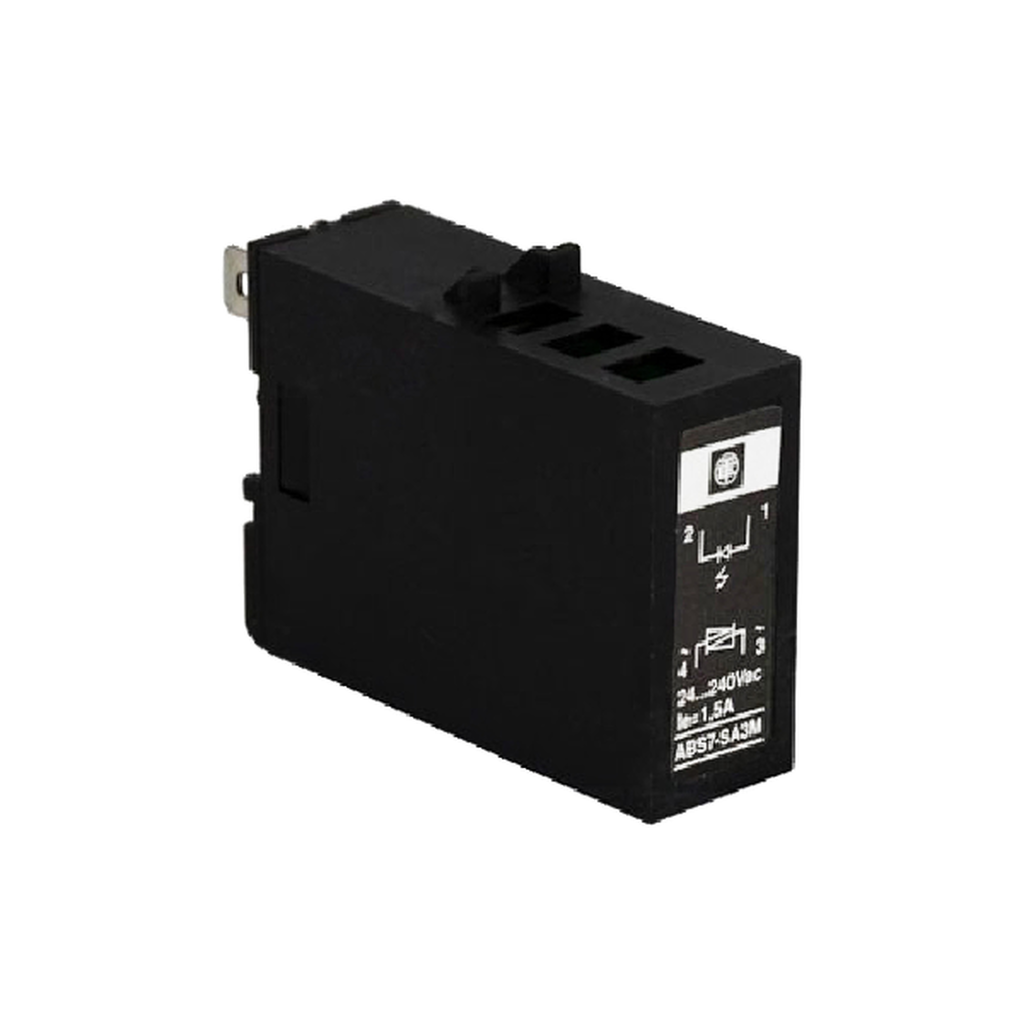

ABS7SA3M
plug-in solid state relay - 12.5 mm - output - 24..240 V AC - 2 A
Specifications
| Discrete Input Voltage | 24 V DC |
|---|---|
| Response Time |
|
| Current State 1 Guaranteed | 6.5 mA DC |
| Discrete Output Current | 2000 mA |
| Voltage State 0 Guaranteed | 2.8 V DC |
| Net Weight | 0.016 kg |
| Width Pitch Dimension | 10 mm |
| Discrete Output Voltage | 24...240 V AC |
| Voltage State 1 Guaranteed | 18.6 V DC |
| Current State 0 Guaranteed | 0.4 mA DC |
| Product Compatibility |
|
| Country of Origin | France |
| Weight | 0.016 kg |
| Range Of Product | Advantys Telefast ABE7 |
| Product Or Component Type | plug-in solid state relay |
| Relay Type | output relay |
| Quantity Per Set | set of 4 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1409004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
