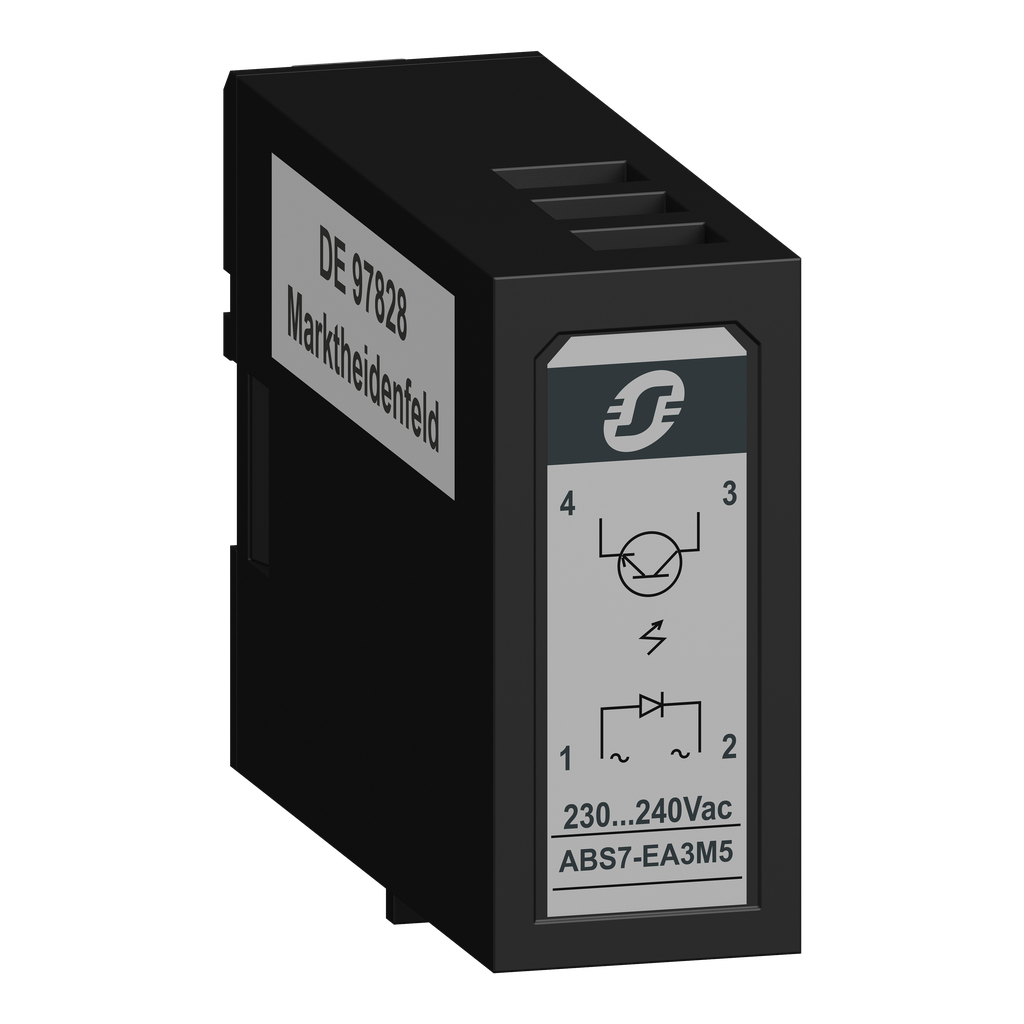

plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ
This product is part of the Advantys Telefast ABE7, an offer of connection sub-bases for Telefast pre-wired system. This plug in solid state relay offers input relay with ≤20ms from state 0 to 1 and ≤20ms from state 1 to 0 response time. It is a sub-base with discrete input voltage ranges from 230V AC to 240V AC and discrete output voltage ranges from 5V DC to 24V DC. The width of this product is 12mm. It weighs 0.014kg. It is suitable for all types of industrial applications. It is compatible with Modicon ABE7P16F310, ABE7P16F310E and ABE7P16F312 sub-base. Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Relay Type | input relay |
|---|---|
| Range Of Product | Advantys Telefast ABE7 |
| Quantity Per Set | set of 4 |
| Product Or Component Type | plug-in solid state relay |
| Warranty | 18 months |
| Discrete Input Voltage | 230...240 V AC 50/60 Hz |
| Response Time |
|
| Product Compatibility |
|
| Net Weight | 0.014 kg |
| Width Pitch Dimension | 12 mm |
| Discrete Output Voltage | 5...24 V DC |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1409004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
