Home > Schneider Electric > Power Supplies and Transformers > Universal Power Supplies > ABLS1A24021 – Regulated Power Supply, 100 to 240V AC, 24V, 2.1A, single phase, Optimized

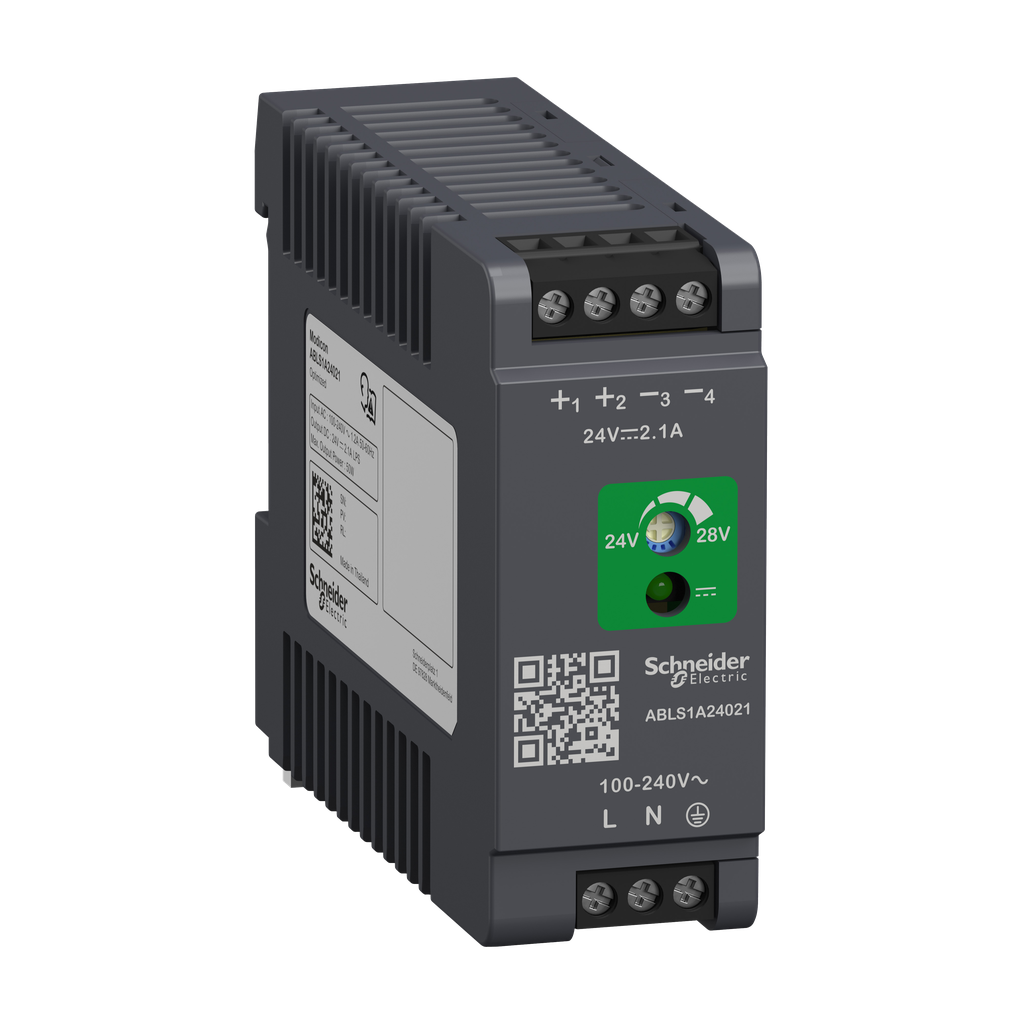

ABLS1A24021 – Regulated Power Supply, 100 to 240V AC, 24V, 2.1A, single phase, Optimized
ABLS1A24021
Regulated Power Supply, 100 to 240V AC, 24V, 2.1A, single phase, Optimized

This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 2,1A at 24V DC and a rated power output of 50W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 30mm, its height is 75mm, its depth is 89,5mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.180kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 6A, C curve or 10A, B-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to its compact housing, it can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2001002EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI2001002EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin Philippines
Width 30 mm
Height 75 mm
Weight 0.180 kg
Range Of Product Modicon Power Supply
Output Voltage 24 V DC
Product Or Component Type power supply
Power Supply Type regulated switch mode
Input Voltage
  • 100...240 V AC single phase
  • 100...240 V AC phase to phase
Power Supply Output Current 2.1 A
Kw Rating 50 W
Enclosure Material Plastic
Standards
  • IEC 62368-1
  • EN/IEC 61204-3
  • IEC 61000-6-1
  • IEC 61000-6-2
  • IEC 61000-6-3
  • IEC 61000-6-4
  • IEC 61000-3-2
  • EN 61000-3-3
  • UL 62368-1
  • CSA C22.2 No 62368-1
  • UL 508
  • CSA C22.2 No. 107.1
  • EN/IEC 62368-1
Ambient Air Temperature For Operation
  • -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m)
  • -10-55 °C without derating mounting position A < 6561.68 ft (2000 m)
  • 55-70 °C with current derating of 3.33 % per °C mounting position A < 6561.68 ft (2000 m)
Product Certifications
  • CE
  • cUL Listed
  • cUL Recognized
  • RCM
  • CB Scheme
  • EAC
  • KC
  • NEC class 2
Pollution Degree 2
Electromagnetic Compatibility
  • immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2
  • immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2
  • immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3
  • immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3
  • immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3
  • immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4
  • surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5
  • surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5
  • immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6
  • immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8
  • immunity to voltage dips conforming to IEC 61000-4-11
  • disturbing field emission conforming to EN 55016-2-3
  • limits for harmonic current emissions conforming to IEC 61000-3-2
  • conforming to EN 55016-1-2
  • conforming to EN 55016-2-1
Shock Resistance 150 m/s² 11 ms
Vibration Resistance
  • 3 mm 2-9 Hz)IEC 60068-2-6
  • 10 m/s² 9-200 Hz)IEC 60068-2-6
Ip Degree Of Protection IP20
Operating Altitude < 6561.68 ft (2000 m)
Electrical Shock Protection Class class I
Electromagnetic Emission
  • conducted emissions IEC 61000-6-3
  • radiated emissions IEC 61000-6-4
Output Coupling
  • parallel
  • serial
Height 75 mm
Residual Ripple < 75 mV
Status Led 1 LED (Green) output voltage
Holding Time
  • > 20 ms 100 V AC
  • > 100 ms 230 V AC
Efficiency At Full Load 85...264 V AC
Earthing System
  • TN
  • TT
  • IT
Connections - Terminals screw connection 0.5...2.5 mm², AWG 20...AWG 14) input/output
Dielectric Strength 3000 V AC with input to output
Network Frequency Limits 50-60 Hz
Current Consumption
  • < 1.1 A 115 V AC
  • < 0.65 A 230 V AC
Supply
  • SELV IEC 60950-1
  • SELV IEC 60204-1
  • SELV IEC 60364-4-41
Net Weight 0.180 kg
Maximum Leakage Current 1 mA 240 V AC
Input Protection Type
  • integrated fuse (not interchangeable) 3.15 A
  • external protection (recommended) 20 A Curve C
  • external protection (recommended) 10 A Curve B
  • external protection (recommended) 6 A Curve C
Output Protection Type
  • against overload and short-circuits automatic reset
  • against over temperature manual reset
  • against overvoltage manual reset
Service Life 10 year(s)
Meantime Between Failure [Mtbf]
  • 2000000 h at 25 °C, full load conforming to SR 332
  • 900000 h at 55 °C, 80 % load conforming to SR 332
Power Dissipation In W 7.5 W
Output Voltage Limits 24...28 V
Mounting Support
  • top hat type TH35-15 rail IEC 60715
  • top hat type TH35-7.5 rail IEC 60715
  • double-profile DIN rail
Load Capacitance 3000 µF
Response Time < 3 s
Line And Load Regulation
  • < 0.5 % network 0 to 100 % load at 25 °C
  • < 1 % network full voltage range in line at 25 °C
Width 30 mm
Overvoltage Category II
Inrush Current
  • 35.0 A 115 V
  • 75.0 A 230 V
Efficiency
  • 86 % 115 V AC
  • 88 % 230 V AC
Depth 89.5 mm
Power Factor
  • 0.45 at 115 V AC
  • 0.35 at 230 V AC
