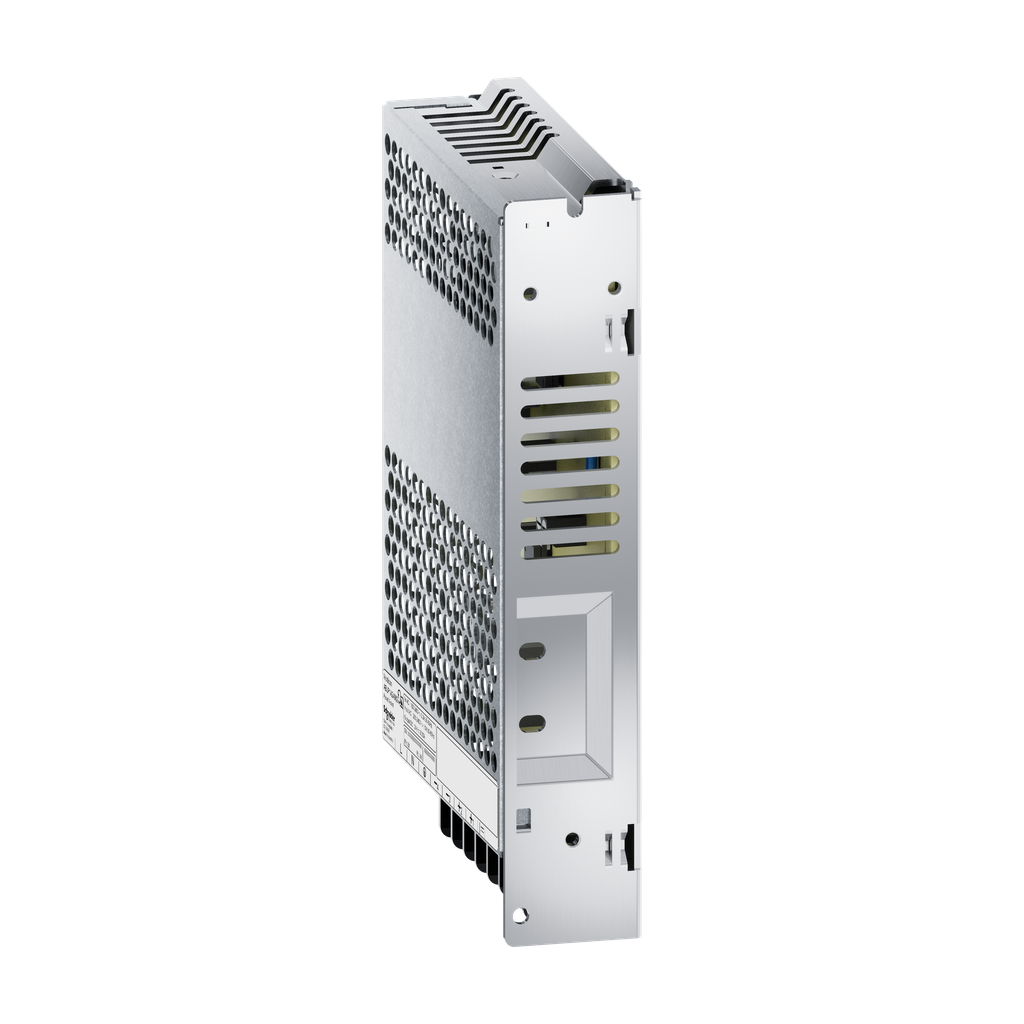

ABLP1A24062 – Regulated Power Supply, modicon power supply, 100…240V AC, 24V, 6.2A, single phase, Panel Mount
ABLP1A24062
Regulated Power Supply, modicon power supply, 100...240V AC, 24V, 6.2A, single phase, Panel Mount

This Modicon ABLP regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 120V AC or 200 to 240V AC, a rated output current of 6.2A at 24V DC and a rated power of 150W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It provides a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected It has LED diagnostics indicator available in the front for troubleshooting instantly. Its width is 159mm, its height is 30mm, its depth is 97mm. It weighs 0.360kg. It is certified with CB-Scheme, cULus Listed, cURus recognized, RCM and EAC. It is a power supply for commercial use, panel mount; It is compatible with ABLPA01 mounting plate. It installs on panel on side or on base with mounting plate fixing by screw. ABLP power supplies bring energy to your automated systems. ABLP power supplies are designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness. The main applications to use Modicon ABLP power supply are lifts, display panels, escalators, carwash, foodstuff ovens, etc.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2007017EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI2007017EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Output Coupling
  • parallel
  • serial
Height 30 mm
Residual Ripple < 170 mV
Status Led 1 LED (Green) output voltage
Holding Time
  • > 20 ms 115 V AC
  • > 40 ms 230 V AC
Efficiency At Full Load
  • 90...132 V AC
  • 170...264 V AC
Earthing System
  • TN
  • TT
  • IT
Connections - Terminals
  • screw connection 0.75...2.5 mm², AWG 18...AWG 14) without wire end ferrule
  • screw connection 0.75...1.5 mm², AWG 18...AWG 16) with wire end ferrule
Dielectric Strength 3750 V AC with input to output
Network Frequency Limits 50-60 Hz
Current Consumption
  • < 3.2 A 115 V AC
  • < 1.9 A 230 V AC
Supply
  • SELV IEC 60950-1
  • SELV IEC 60204-1
  • SELV IEC 60364-4-41
Net Weight 0.36 kg
Maximum Leakage Current 1 mA 240 V AC
Input Protection Type integrated fuse (not interchangeable) 4 A
Output Protection Type
  • against overload and short-circuits automatic reset
  • against over temperature manual reset
  • against overvoltage manual reset
Service Life 10 year(s)
Meantime Between Failure [Mtbf] 700000 h at 25 °C, full load conforming to SR 332
Power Dissipation In W 29 W
Output Voltage Limits 21.6...26.4 V
Mounting Support
  • top hat type TH35-15 rail IEC 60715
  • top hat type TH35-7.5 rail IEC 60715
  • double-profile DIN rail
  • panel mounting
Load Capacitance 7000 µF
Response Time < 500 ms
Line And Load Regulation
  • < 0.5 % network 0 to 100 % load at 25 °C
  • < 1 % network full voltage range in line at 25 °C
Width 97 mm
Overvoltage Category II
Inrush Current
  • 35 A 115 V
  • 70 A 230 V
Efficiency 88.8 % 230 V AC
Depth 159 mm
Power Factor
  • 0.55 at 115 V AC
  • 0.45 at 230 V AC
Standards
  • IEC 62368-1
  • EN/IEC 61010-1
  • EN 61010-2-201
  • EN/IEC 61204-3
  • IEC 61000-6-1
  • IEC 61000-6-2
  • IEC 61000-6-3
  • IEC 61000-6-4
  • IEC 61000-3-2
  • EN 61000-3-3
  • UL 62368-1
  • UL 61010-1
  • UL 61010-2-201
  • CSA C22.2 No 62368-1
  • CSA C22.2 No 61010-1
  • CSA C22.2 No 61010-2-201
  • IEC 60335-1
  • EN/IEC 62368-1
Ambient Air Temperature For Operation
  • -30--25 °C with current derating of 4 % per °C mounting position B, G < 6561.68 ft (2000 m)
  • -25-50 °C without derating mounting position B, G < 6561.68 ft (2000 m)
  • 50-70 °C with current derating of 2 % per °C mounting position B, G < 6561.68 ft (2000 m)
Product Certifications
  • CE
  • cULus
  • EAC
  • RCM
  • CB Scheme
  • KC
Pollution Degree 2
Electromagnetic Compatibility
  • immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2
  • immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2
  • immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3
  • immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3
  • immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3
  • immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4
  • surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5
  • surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5
  • immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6
  • immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8
  • immunity to voltage dips conforming to IEC 61000-4-11
  • disturbing field emission conforming to EN 55016-2-3
  • limits for harmonic current emissions conforming to IEC 61000-3-2
  • conforming to EN 55016-1-2
  • conforming to EN 55016-2-1
Shock Resistance 150 m/s² 11 ms
Vibration Resistance
  • 3 mm 2-9 Hz)IEC 60068-2-6
  • 10 m/s² 9-200 Hz)IEC 60068-2-6
Ip Degree Of Protection IP10
Operating Altitude 5000 m
Electrical Shock Protection Class class I
Electromagnetic Emission
  • conducted emissions IEC 61000-6-3
  • radiated emissions IEC 61000-6-4
Country of Origin Philippines
Width 97 mm
Height 30 mm
Weight 0.36 kg
Range Of Product Modicon Power Supply
Output Voltage 24 V DC
Product Or Component Type power supply
Power Supply Type regulated switch mode
Input Voltage
  • 100...120 V AC single phase
  • 200...240 V AC single phase
Power Supply Output Current 6.25 A
Kw Rating 150 W
Enclosure Material Aluminum
