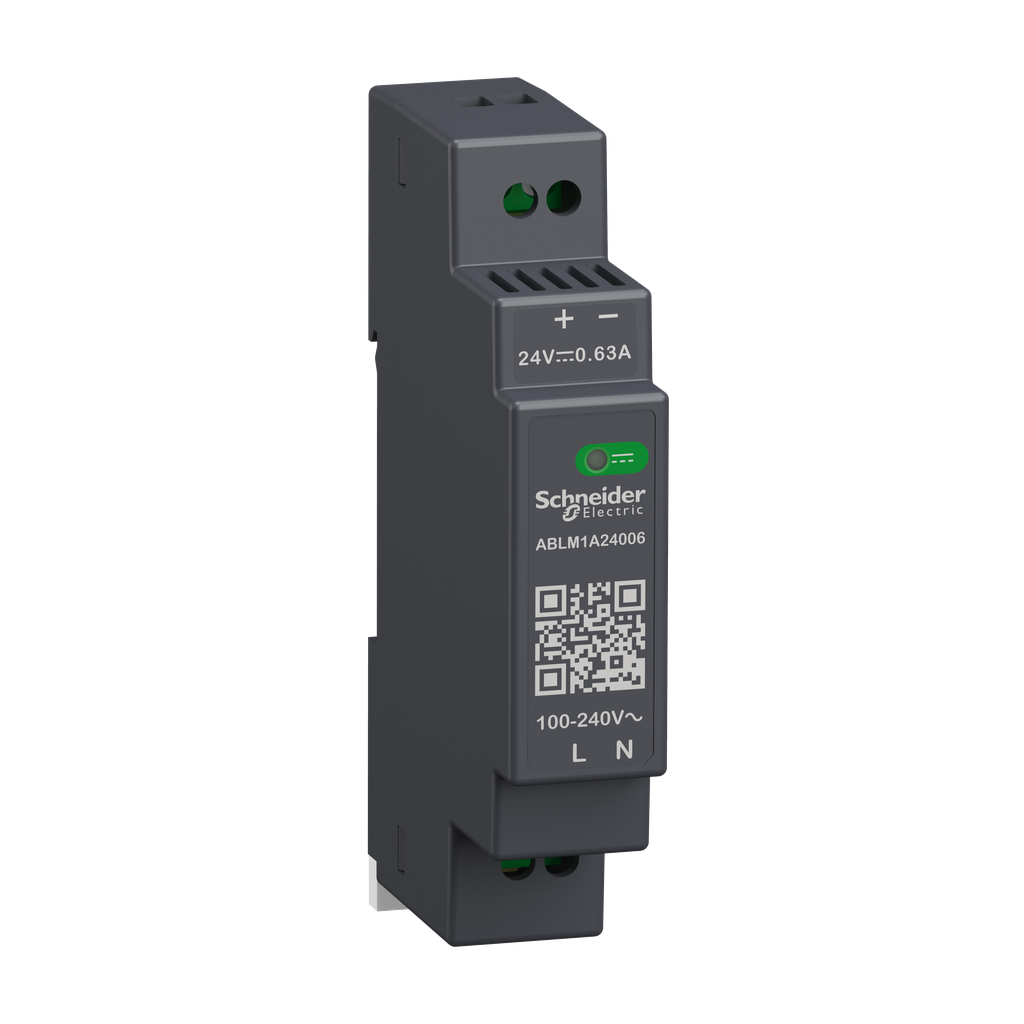

ABLM1A24006 – Regulated Power Supply, 100 to 240V AC, 24V, 0.6A, single phase, Modular
ABLM1A24006
Regulated Power Supply, 100 to 240V AC, 24V, 0.6A, single phase, Modular

This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 0,625A at 24V DC and a rated power output of 15W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 18mm, its height is 91mm, its depth is 55,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.101kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 2A, B or C curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Standards
  • IEC 62368-1
  • EN/IEC 61010-1
  • EN 61010-2-201
  • EN/IEC 61204-3
  • IEC 61000-6-1
  • IEC 61000-6-2
  • IEC 61000-6-3
  • IEC 61000-6-4
  • IEC 61000-3-2
  • EN 61000-3-3
  • UL 62368-1
  • UL 61010-1
  • UL 61010-2-201
  • CSA C22.2 No 62368-1
  • CSA C22.2 No 61010-1
  • CSA C22.2 No 61010-2-201
  • EN/IEC 62368-1
Ambient Air Temperature For Operation
  • -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m)
  • 55-70 °C with current derating of 2.67 % per °C mounting position A < 6561.68 ft (2000 m)
Product Certifications
  • CE
  • cUL Listed
  • cUL Recognized
  • RCM
  • CB Scheme
  • EAC
  • KC
  • NEC class 2
Pollution Degree 2
Electromagnetic Compatibility
  • immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2
  • immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2
  • electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3
  • electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3
  • electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3
  • immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4
  • surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5
  • surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5
  • immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6
  • immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8
  • immunity to voltage dips - test level: 100 % (1 cycle) conforming to IEC 61000-4-11
  • immunity to voltage dips - test level: 60 % (10 cycles) conforming to IEC 61000-4-11
  • immunity to voltage dips - test level: 30 % (25 cycles) conforming to IEC 61000-4-11
  • disturbing field emission conforming to EN 55016-2-3
  • limits for harmonic current emissions conforming to IEC 61000-3-2
  • conforming to EN 55016-1-2
  • conforming to EN 55016-2-1
Shock Resistance 150 m/s² 11 ms
Vibration Resistance
  • 3 mm 2-9 Hz)IEC 60721-3-3
  • 10 m/s² 9-200 Hz)IEC 60721-3-3
Ip Degree Of Protection IP20
Operating Altitude
  • < 6561.68 ft (2000 m) overvoltage category III
  • 2000 m...5000 m overvoltage category II
Electrical Shock Protection Class class II without PE connection
Electromagnetic Emission
  • conducted emissions IEC 61000-6-3
  • radiated emissions IEC 61000-6-4
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2004005EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI2004005EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Output Coupling serial
Height 91 mm
Residual Ripple < 100 mV
Status Led 1 LED (Green) output voltage
Holding Time
  • > 10 ms 115 V AC
  • > 60 ms 230 V AC
Efficiency At Full Load 90...264 V AC
Earthing System
  • TN
  • TT
  • IT
Connections - Terminals
  • screw connection 0.5...1.5 mm², AWG 20...AWG 16) without wire end ferrule input/output
  • screw connection 0.5...1 mm², AWG 20...AWG 18) with wire end ferrule input/output
Dielectric Strength 3000 V AC input/output
Network Frequency Limits 50-60 Hz
Current Consumption
  • < 0.4 A 115 V AC
  • < 0.25 A 230 V AC
Supply
  • SELV IEC 60950-1
  • SELV IEC 60204-1
  • SELV IEC 60364-4-41
Net Weight 0.101 kg
Maximum Leakage Current 0.25 mA 240 V AC
Input Protection Type
  • integrated fuse (not interchangeable) 3.15 A
  • external protection (recommended) 20 A Curve B
  • external protection (recommended) 20 A Curve C
  • external protection (recommended) 2 A Curve B
  • external protection (recommended) 2 A Curve C
Output Protection Type
  • against overload and short-circuits automatic reset
  • against over temperature manual reset
  • against overvoltage manual reset
Service Life 10 year(s)
Meantime Between Failure [Mtbf]
  • 3000000 h at 25 °C, full load
  • 1000000 h at 55 °C, 80 % load
Power Dissipation In W 3.5 W
Mounting Support
  • top hat type TH35-15 rail IEC 60715
  • top hat type TH35-7.5 rail IEC 60715
  • double-profile DIN rail
  • panel mounting
Load Capacitance 3000 µF
Response Time < 2 s
Line And Load Regulation
  • < 0.5 % network in line
  • < 1 % network 0 to 100 % load
Width 18 mm
Overvoltage Category II
Inrush Current
  • 15 A 115 V
  • 30 A 230 V
Efficiency
  • 81 % 115 V AC
  • 81 % 230 V AC
Depth 55.6 mm
Power Factor
  • 0.51 at 115 V AC
  • 0.40 at 230 V AC
Country of Origin United States
Width 18 mm
Height 91 mm
Weight 0.101 kg
Range Of Product Modicon Power Supply
Output Voltage 24 V DC
Product Or Component Type power supply
Power Supply Type regulated switch mode
Input Voltage
  • 100...240 V AC single phase
  • 100...240 V AC phase to phase
Power Supply Output Current 0.625 A
Kw Rating 15 W
Enclosure Material Plastic
