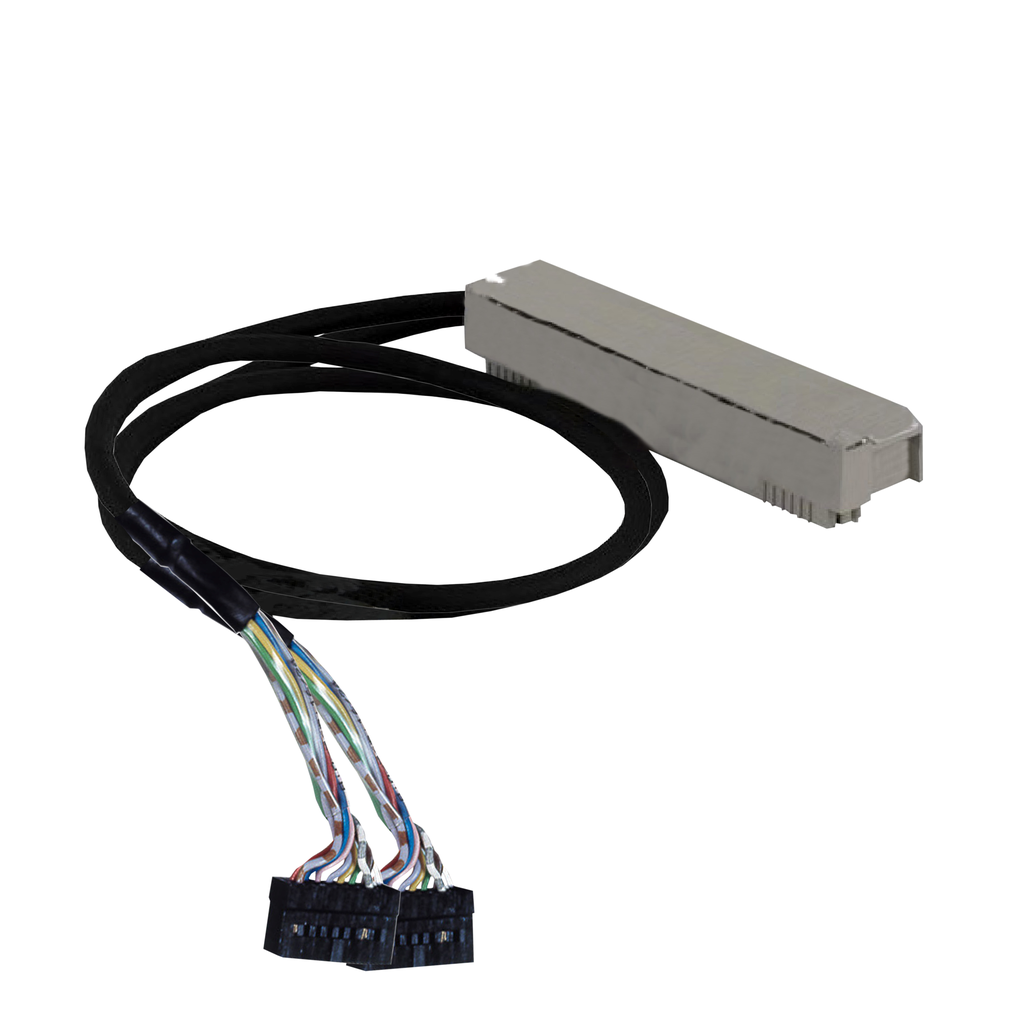

ABFM32H301
cabled connector - 3 m - for Modicon Quantum
Specifications
| Country of Origin | France |
|---|---|
| Length | 3 m |
| Weight | 1.15 kg |
| Range Of Product | Modicon Quantum |
| Accessory / Separate Part Designation | cabled connector |
| Accessory / Separate Part Category | connection accessories |
| Number Of Channels | 32 |
| Accessory / Separate Part Type | connector |
| Accessory / Separate Part Destination | Modicon Quantum PLC |
| Wire Section | 0.324 mm² |
| Cable Length | 3 m |
| Channel Splitting | 2 x 16 |
| Type Of Signal | 0.5 A output |
| Net Weight | 1.15 kg |
| Connector Type | HE10 |
| Awg Gauge | AWG 22 |
| Number Of Ways | 20 ways |
| Electrical Connection | 2 connectors + external supply |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Documents
- ABFM32H... Connection sub-bases-accessories - 1488945_01A55 (pdf)
- ABFM32H... Connection sub-bases-accessories - BBV49657_00 (pdf)
- Modicon ABE7 IP20 connection sub-bases, Modicon ABE9 IP67 passive splitter boxes - Catalog+Telefast+Pre-wired+system_Modicon+ABE7+connection+sub-bases+%26+Modicon+ABE9+passive+splitter+boxes_October+2022 (pdf)
- Spec Sheet
