ABE9C1241L10

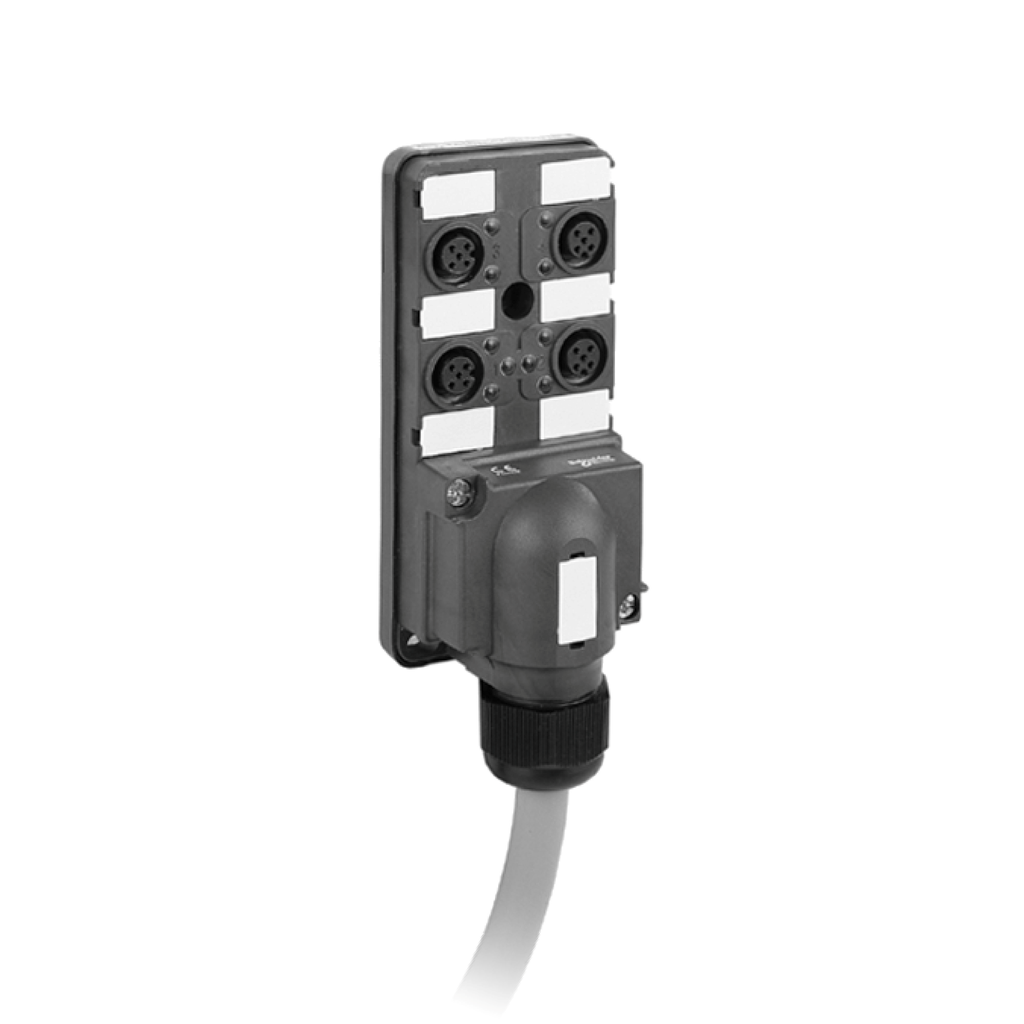

IP67 passive splitter box - cable 10 m - with 4 channels M12 connector - Led
Specifications
| Product Certifications | cULus |
|---|---|
| Ambient Air Temperature For Operation | -20-80 °C |
| Shock Resistance | 30 gn 11 ms EN 68-2-2 |
| Vibration Resistance | 0.2 gn 57-150 Hz)IEC 68-2-6, FC tests |
| Ip Degree Of Protection | IP67 conforming to IEC 529 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Current Of Common |
|
| Current Per Channel | 4 A |
| [Ue] Rated Operational Voltage | 24 V DC |
| Fixing Mode | M4 screw fixing |
| Net Weight | 1.7 kg |
| Separation Of Commons | without or with |
| Insulation Group | category 3 VDE 0110 |
| Number Of Ways | 8 ways |
| Operating Position | any position |
| Contact Resistance | 5000 µOhm |
| Country of Origin | Germany |
| Weight | 1.7 kg |
| Range Of Product | Advantys ABE9 |
| Status Led |
|
| Product Or Component Type | IP67 passive splitter box |
| Number Of Channels | 4 |
| Electrical Connection |
|
