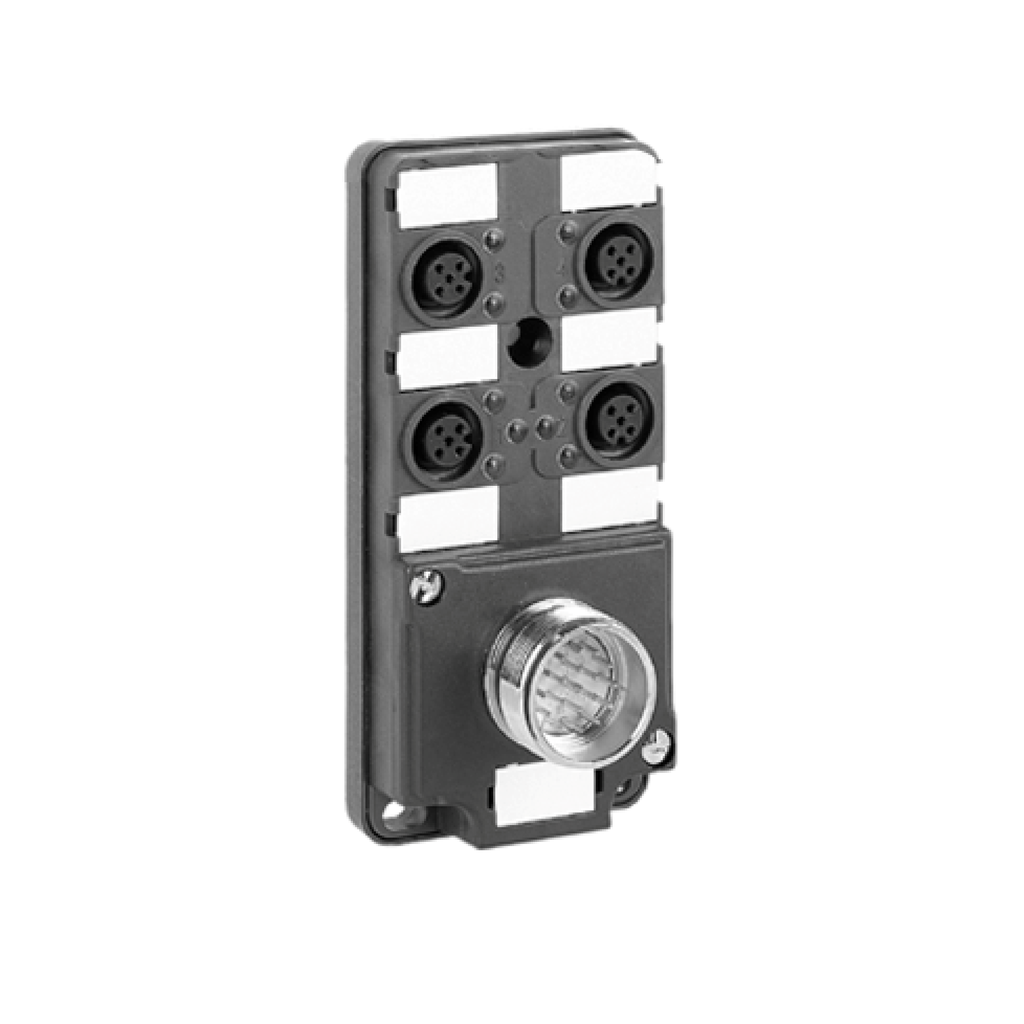

ABE9C1241C23 - IP67 passive splitter box - M23 connector - with 4 channels M12 connector - Led

ABE9C1241C23

Add to Quote Catalogue

Product Certifications	cULus
Ambient Air Temperature For Operation	-20-80 °C
Shock Resistance	30 gn 11 ms EN 68-2-2
Vibration Resistance	0.2 gn 57-150 Hz)IEC 68-2-6, FC tests
Ip Degree Of Protection	IP67 conforming to IEC 529
Ambient Air Temperature For Storage	-40-85 °C
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Current Of Common	16 A 1-1 mm² 12 A 0.75-0.75 mm²
Current Per Channel	4 A
[Ue] Rated Operational Voltage	24 V DC
Fixing Mode	M4 screw fixing
Net Weight	0.08 kg
Separation Of Commons	without
Insulation Group	category 3 VDE 0110
Number Of Ways	8 ways
Operating Position	any position
Contact Resistance	5000 µOhm
Country of Origin	Germany
Weight	0.08 kg
Range Of Product	Advantys ABE9
Status Led	1 LED (Green) power ON 1 LED per channel (Yellow) channel status
Product Or Component Type	IP67 passive splitter box
Number Of Channels	4
Electrical Connection	1 male connector M23 19 pins 4 female connectors M12 5 pins
