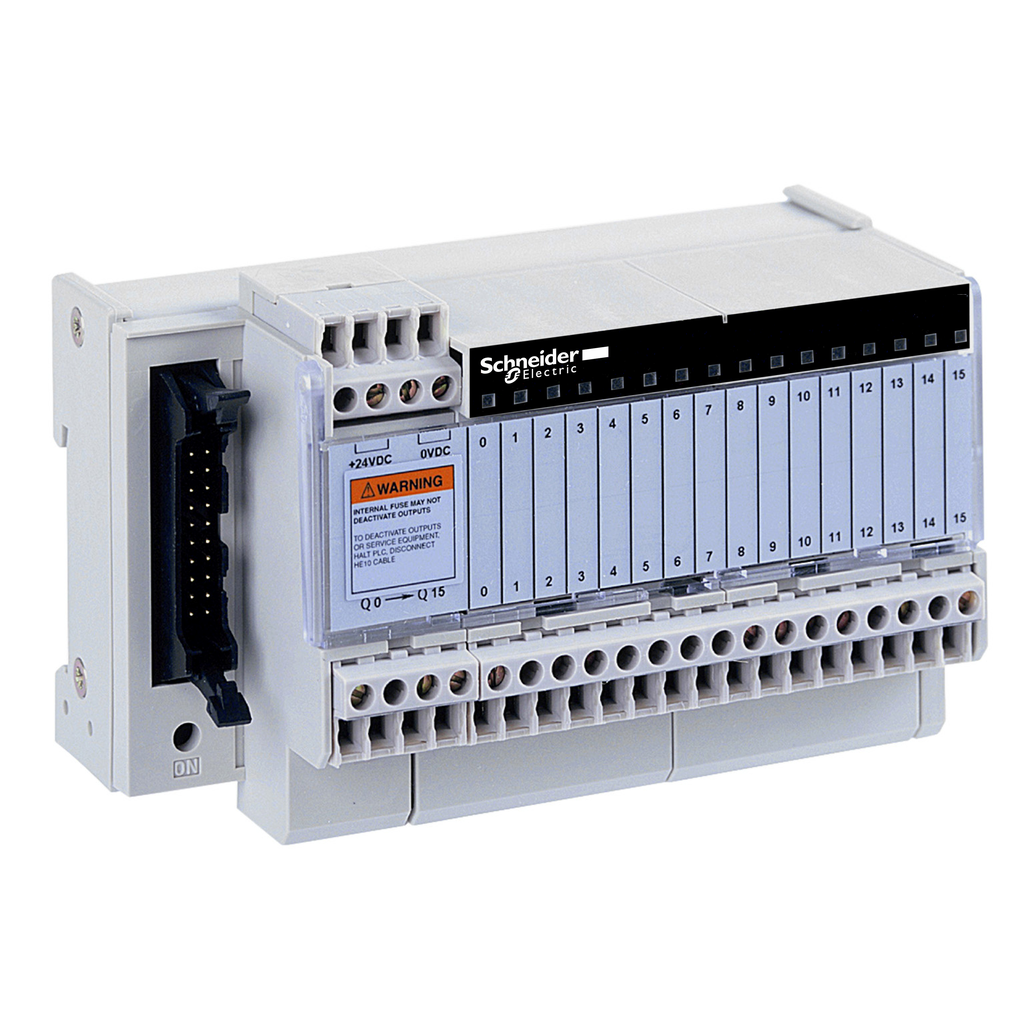

ABE7S16S1B2
sub-base - soldered solid state output relay ABE7 - 16 outputs - 0.5 A
Specifications
| Range Of Product | Modicon ABE7 |
|---|---|
| Product Or Component Type | solid state output relay sub-base |
| Relay Type | soldered solid state relay |
| Number Of Channels | 16 |
| [Us] Rated Supply Voltage |
|
| Warranty | 18 months |
| Minimum Switching Current | 1 mA |
| Isolation Plc/Operative Part | no |
| Switching Frequency | < 0.6/LI² Hz |
| Terminal Block Type | removable |
| Maximum Circuit Breaker Threshold | 0.75 A |
| Installation Category | II IEC 60664-1 |
| Maximum Switching Current |
|
| Fault Type |
|
| Maximum Current Per Output Common | 9 A |
| Current Per Channel | 0.5 A preactuator end |
| Response Time |
|
| Current State 1 Guaranteed | 3.1 mA PLC end) |
| Net Weight | 0.4 kg |
| Fixing Mode |
|
| Voltage State 0 Guaranteed | 3.4 V PLC end |
| Maximum Residual Current | 0.5 mA preactuator end |
| Voltage State 1 Guaranteed | 16.9 V PLC end |
| Current State 0 Guaranteed | 0.4 mA PLC end) |
| Switchable Inductive Energy L/R | <= 400(U.I) ms |
| Tightening Torque | 0.6 N.m flat Ø 3.5 mm |
| Fault Indication | without |
| Drop-Out Voltage | 0.3 V preactuator end) |
| Width | 125 mm |
| Maximum Tungsten Load | <10 W DC-6 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121229EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1212029EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Resistance To Radiated Fields | 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3 |
| Ambient Air Temperature For Operation | -5-60 °C IEC 61131-2 |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Ip Degree Of Protection | IP2X conforming to IEC 60529 |
| Pollution Degree | 2 IEC 60664-1 |
| Resistance To Incandescent Wire | 750 °C 30 s IEC 60695-2-11 |
| Ambient Air Temperature For Storage | -40-80 °C IEC 61131-2 |
| Protective Treatment | TC |
| Resistance To Fast Transients | 2 kV level 3 IEC 61000-4-4 |
