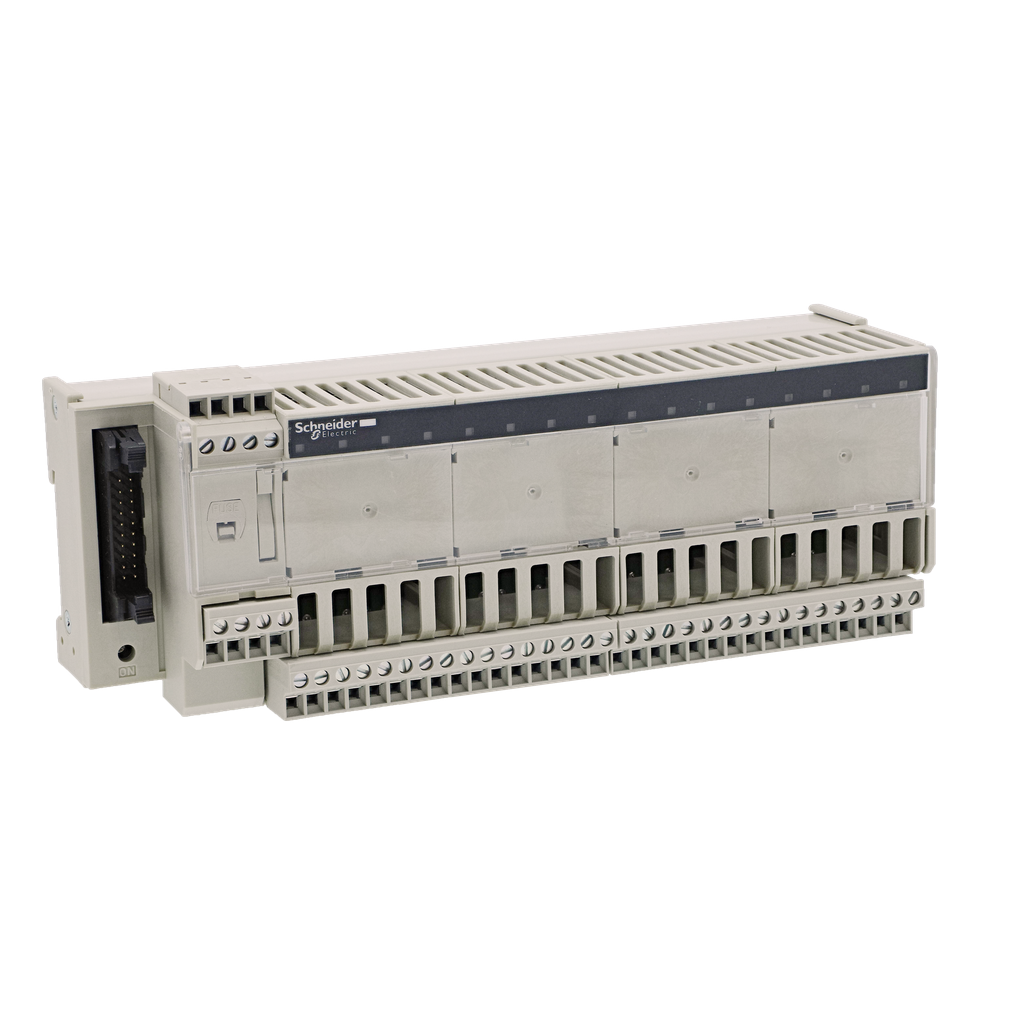

ABE7S16E2E1 - sub-base - soldered solid state output relay ABE7 - 16 inputs - 48 V DC

ABE7S16E2E1

sub-base - soldered solid state output relay ABE7 - 16 inputs - 48 V DC

Add to Quote Catalogue

Specifications

Product Certifications	CSA UL DNV GL EAC
Standards	IEC 61131-2 Type 2
Resistance To Radiated Fields	10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Ambient Air Temperature For Operation	-5-60 °C IEC 61131-2
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Dielectric Strength	2000 V 50/60 Hz IEC 60947-1
Vibration Resistance	2 gn 10-150 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP2X conforming to IEC 60529
Pollution Degree	2 IEC 60664-1
Resistance To Incandescent Wire	750 °C IEC 60695-2-11
Ambient Air Temperature For Storage	-40-80 °C IEC 61131-2
Resistance To Electrostatic Discharge	4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2
Resistance To Fast Transients	2 kV level 3 IEC 61000-4-4
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP121229EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1212029EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Minimum Switching Current	1 mA for PLC end
Isolation Plc/Operative Part	yes
Terminal Block Type	removable
Maximum Switching Current	15 mA PLC end)
Current Per Channel	0.013 A
Installation Category	II IEC 60664-1
Protection Type	internal fuse 1 A 5 x 20 mm fast blow PLC end adjustable by external fuse fast blow sensor end
Response Time	<= 0.05 ms from state 0 to 1 <= 0.4 ms from state 1 to 0
[Ui] Rated Insulation Voltage	2000 V
Current State 1 Guaranteed	>= 6 mA sensor end)
Net Weight	0.37 kg
Fixing Mode	by clips (35 mm symmetrical DIN rail) by screws (solid plate with fixing kit)
[Uimp] Rated Impulse Withstand Voltage	2.5 kV IEC 60947-1
Switching Frequency	<= 1000 Hz 50 %
Voltage State 1 Guaranteed	>= 30 V sensor end
Tightening Torque	0.6 N.m flat Ø 3.5 mm
Supply Voltage Limits	19-30 V DC PLC end)IEC 61131-2
Country of Origin	Latvia
Weight	0.37 kg
Range Of Product	Modicon ABE7
Product Or Component Type	solid state input relay sub-base
Number Of Terminal Per Channel	2
Connections - Terminals	screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² AWG 28...AWG 16) flexible with cable end screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 12) solid screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 14) flexible without cable end screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² AWG 28...AWG 20) flexible with cable end screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² AWG 24...AWG 14) solid
Number Of Channels	16
[Us] Rated Supply Voltage	24 V DC PLC end) 48 V DC sensor end)
