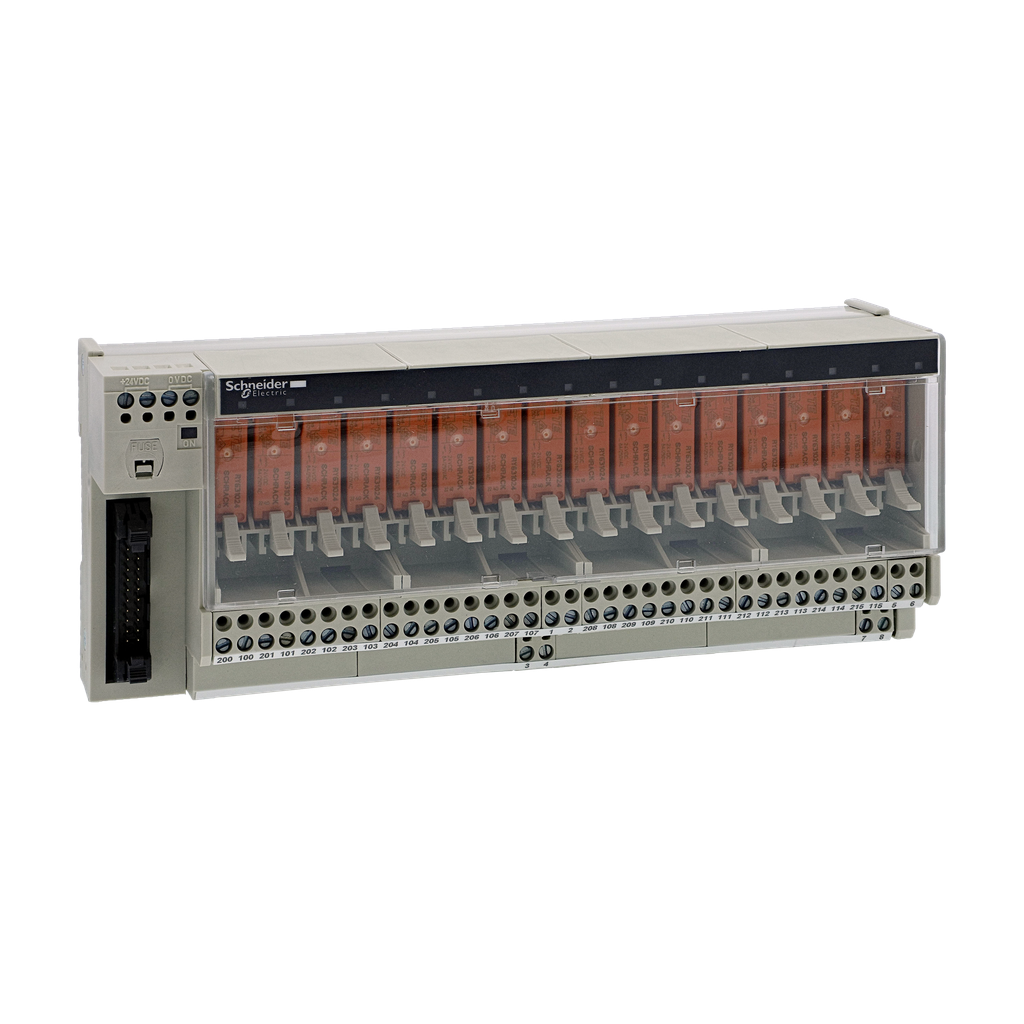

ABE7R16T212
Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 10 mm
Specifications
| Product Certifications |
|
|---|---|
| Resistance To Radiated Fields | 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3 |
| Ambient Air Temperature For Operation | -5-60 °C IEC 61131-2 |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Vibration Resistance | 2 gn 10-150 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP2X conforming to IEC 60529 |
| Pollution Degree | 2 IEC 60664-1 |
| Resistance To Incandescent Wire | 750 °C IEC 60695-2-11 |
| Ambient Air Temperature For Storage | -40-80 °C IEC 61131-2 |
| Resistance To Electrostatic Discharge |
|
| Resistance To Fast Transients | 2 kV level 3 IEC 61000-4-4 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121229EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1212029EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Short-Circuit Protection | 1 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV |
| Status Led |
|
| Installation Category | II IEC 60664-1 |
| Net Weight | 0.73 kg |
| Fixing Mode |
|
| Contacts Type And Composition | 1 NO |
| Polarity Distribution | polarity distribution contact common per 2 groups of 8 channels |
| Tightening Torque | 0.6 N.m flat Ø 3.5 mm |
| Maximum Supply Current | 1 A |
| Supply Circuit Type | DC |
| Voltage Drop On Power Supply Fuse | 0.3 V |
| Product Compatibility | ABR7S21 |
| [Ui] Rated Insulation Voltage |
|
| Country of Origin | France |
| Weight | 0.73 kg |
| Range Of Product | Modicon ABE7 |
| Product Or Component Type | sub-base with plug-in electromechanical relay |
| Number Of Channels | 16 |
| Sub-Base Type | output sub-base |
| [Us] Rated Supply Voltage | 19...30 V IEC 61131-2 |
