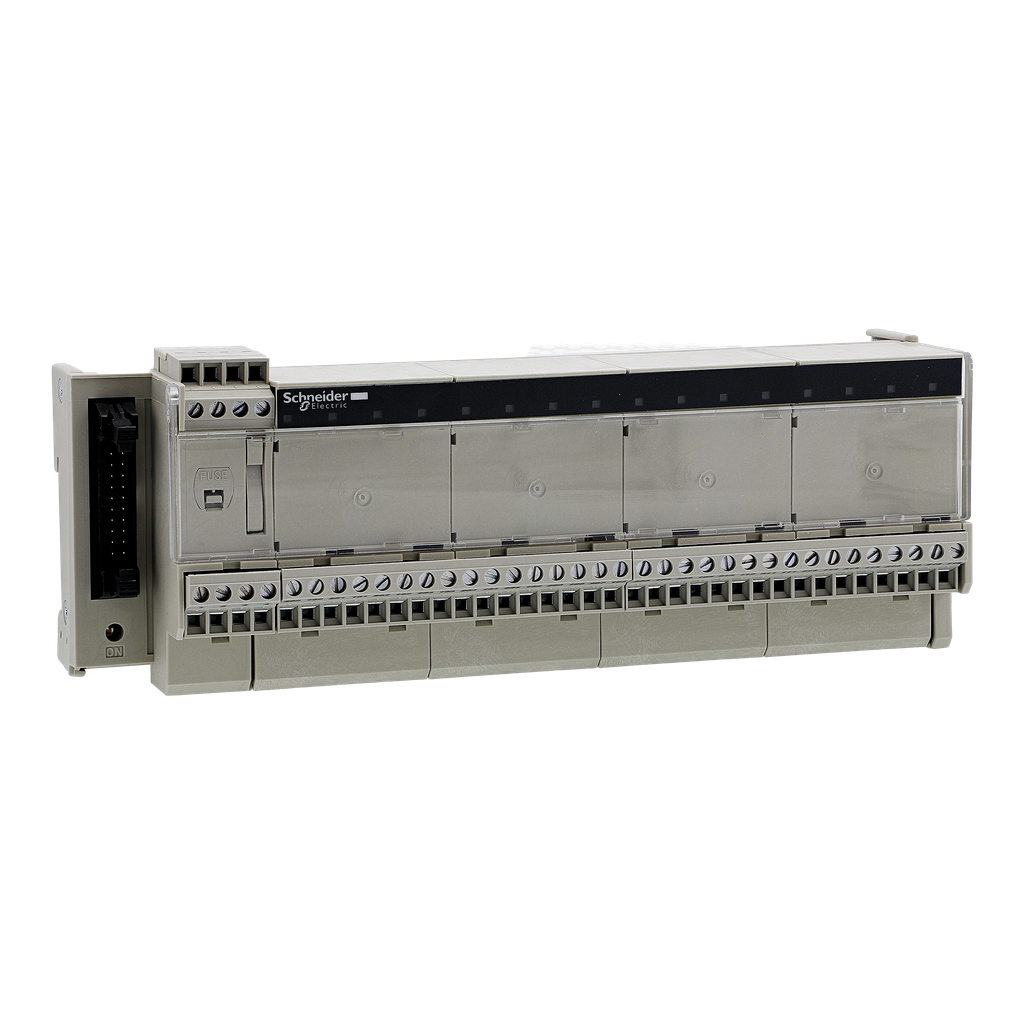

ABE7R16S212
sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm
Specifications
| Range Of Product | Modicon ABE7 |
|---|---|
| Product Or Component Type | electromechanical output relay sub-base |
| Number Of Terminal Per Channel | 2 |
| Number Of Channels | 16 |
| [Us] Rated Supply Voltage | 24 V DC PLC end |
| Warranty | 18 months |
| Contacts Type And Composition | 1 NO preactuator end |
| Minimum Switching Current | 10 mA >= 5 V |
| Switching Frequency |
|
| Terminal Block Type | removable |
| Installation Category | II IEC 60664-1 |
| Maximum Current Per Output Common | 10 A |
| Current Per Channel | 5 A preactuator end |
| [Ui] Rated Insulation Voltage | 2000 V |
| Net Weight | 0.4 kg |
| Electrical Durability |
|
| Fixing Mode |
|
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Maximum Switching Voltage |
|
| Contact Bounce Time | <= 5 ms 1 NO |
| Polarity Distribution | common per group of 8 channels on both poles |
| Tightening Torque | 0.6 N.m flat Ø 3.5 mm |
| Mechanical Durability | 20000000 cycles |
| Operating Time |
|
| Maximum Power Dissipation Per Channel In W | 0.36 W PLC end) |
| Drop-Out Voltage | 2.4 V 20 °C PLC end) |
| Width | 206 mm |
| Operating Rate In Hz |
|
| Electrical Reliability | 1e-008 |
| Threshold Tripping Voltage | 19.7 V 40 °C |
| Drop-Out Current | 1 mA 20 °C |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121229EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1212029EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Resistance To Radiated Fields | 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3 |
| Ambient Air Temperature For Operation | -5-60 °C IEC 61131-2 |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Dielectric Strength | 2000 V IEC 60947-1 |
| Max Immunity To Microbreaks | 5 ms |
| Ip Degree Of Protection | IP2X conforming to IEC 60529 |
| Pollution Degree | 2 IEC 60664-1 |
| Resistance To Incandescent Wire | 750 °C 30 s IEC 60695-2-11 |
| Ambient Air Temperature For Storage | -40-80 °C IEC 61131-2 |
| Protective Treatment | TC |
| Resistance To Fast Transients | 2 kV level 3 IEC 61000-4-4 |
Documents
- Spec Sheet
- ABE7R16S... Sub-bases with soldered electromechanical relays, plug-in terminal blocks - BBV49621_00 (pdf)
- ABE7R16T2.. / ABE7R16S... Sub-bases with soldered or plug-in electromechanical relays - BBV49643_00 (pdf)
- ABE7R16S... Sub-bases with soldered electromechanical relays, plug-in terminal blocks - 1488735_01A55 (pdf)
- Modicon ABE7 IP20 connection sub-bases, Modicon ABE9 IP67 passive splitter boxes - Catalog+Telefast+Pre-wired+system_Modicon+ABE7+connection+sub-bases+%26+Modicon+ABE9+passive+splitter+boxes_October+2022 (pdf)
