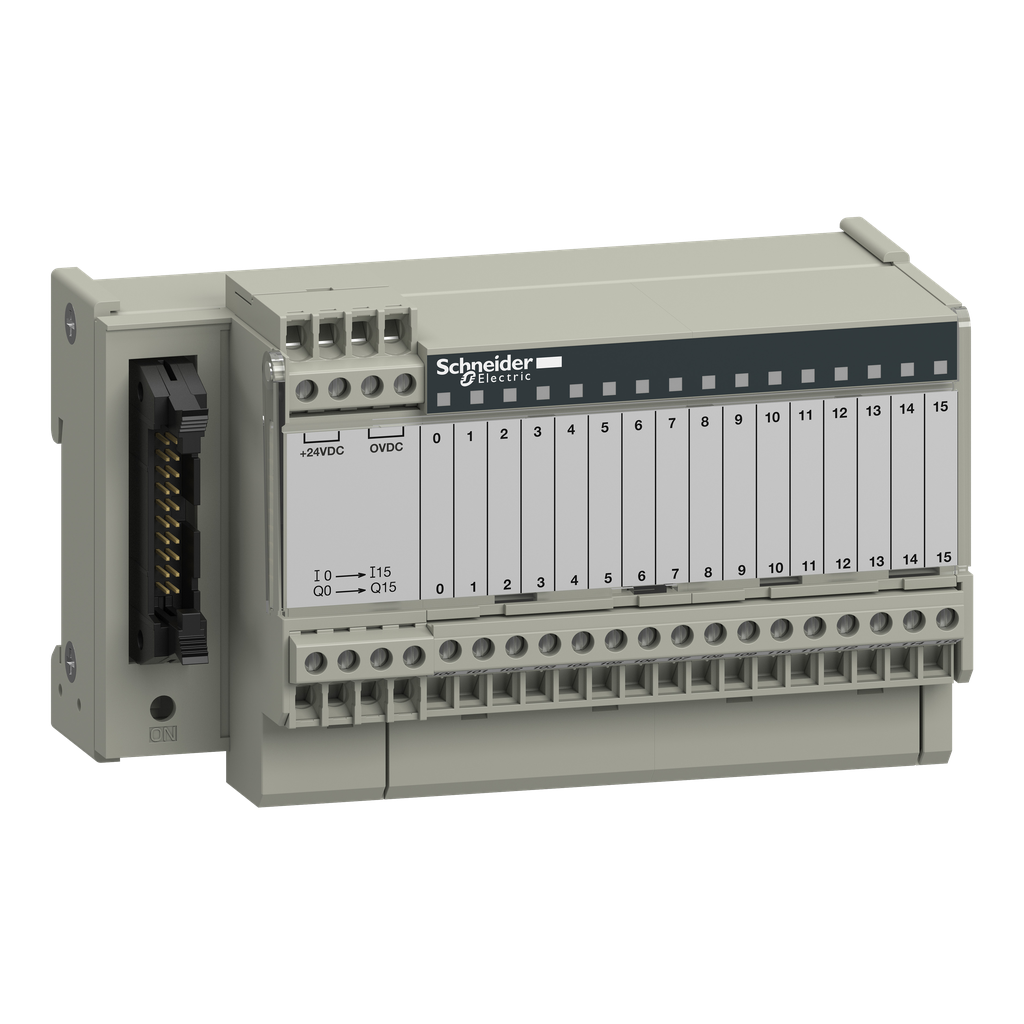

sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm
This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This soldered electromechanical relay sub base offers 16 channels with 1 terminal per channel. The input sub base offers a rated supply voltage of 24V DC for PLC end and NO contact for pre actuator end. It is furnished with removable terminal block. It is an IP2x rated product. Its dimensions are 125mm (width) x 58mm (depth) x 77mm (height). It weighs 0.405kg. It is suitable for all types of industrial applications. This product is certified by DNV, UL, CSA, GL, BV, LROS and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon ABE7 |
|---|---|
| Product Or Component Type | electromechanical output relay sub-base |
| Number Of Terminal Per Channel | 1 |
| Number Of Channels | 16 |
| [Us] Rated Supply Voltage | 24 V DC PLC end |
| Warranty | 18 months |
| Contacts Type And Composition | 1 NO preactuator end |
| Minimum Switching Current | 1 mA >= 5 V |
| Height | 77 mm |
| Switching Frequency |
|
| Terminal Block Type | removable |
| Installation Category | II IEC 60664-1 |
| Maximum Current Per Output Common | 12 A |
| Current Per Channel | 2 A preactuator end |
| [Ui] Rated Insulation Voltage | 2000 V |
| Net Weight | 0.405 kg |
| Electrical Durability |
|
| Fixing Mode |
|
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Maximum Switching Voltage |
|
| Contact Bounce Time | <= 5 ms 1 NO |
| Polarity Distribution | polarity distribution contact common per group of 8 channels |
| Tightening Torque | 0.6 N.m flat Ø 3.5 mm |
| Number Of Channel Per Common | 8 |
| Mechanical Durability | 20000000 cycles |
| Operating Time |
|
| Maximum Power Dissipation Per Channel In W | 0.22 W PLC end) |
| Drop-Out Voltage | 2.4 V 20 °C PLC end) |
| Width | 125 mm |
| Operating Rate In Hz |
|
| Depth | 58 mm |
| Electrical Reliability | 1e-008 |
| Threshold Tripping Voltage | 19.2 V 40 °C |
| Drop-Out Current | 0.5 mA 20 °C |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121229EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1212029EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Resistance To Radiated Fields | 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3 |
| Ambient Air Temperature For Operation | -5-60 °C IEC 61131-2 |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Dielectric Strength | 2000 V IEC 60947-1 |
| Max Immunity To Microbreaks | 5 ms |
| Ip Degree Of Protection | IP2X conforming to IEC 60529 |
| Pollution Degree | 2 IEC 60664-1 |
| Resistance To Incandescent Wire | 750 °C 30 s IEC 60695-2-11 |
| Ambient Air Temperature For Storage | -40-80 °C IEC 61131-2 |
| Protective Treatment | TC |
| Resistance To Fast Transients | 2 kV level 3 IEC 61000-4-4 |
