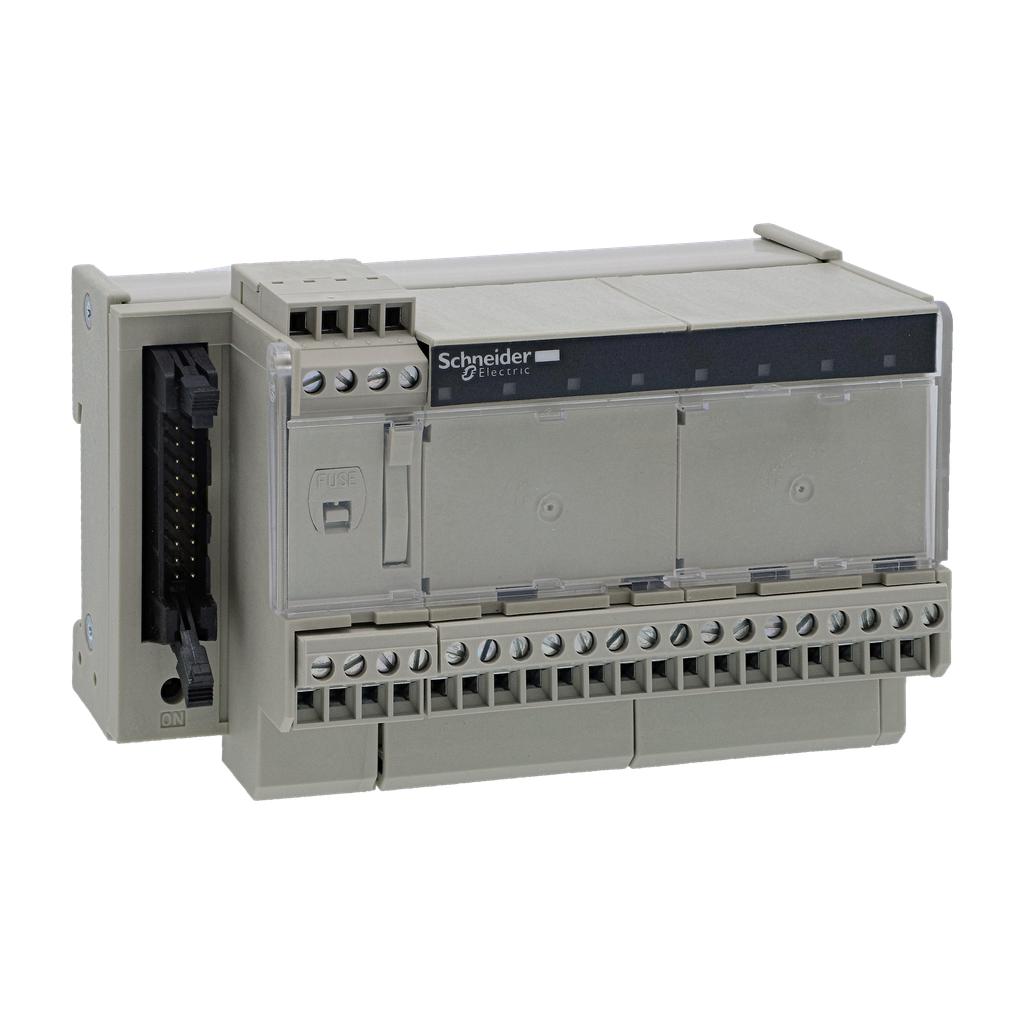

Range Of Product | Modicon ABE7 |
---|---|
Product Or Component Type | electromechanical output relay sub-base |
Number Of Terminal Per Channel | 2 |
Number Of Channels | 8 |
[Us] Rated Supply Voltage | 24 V DC PLC end |
Warranty | 18 months |
Contacts Type And Composition | 1 NO preactuator end |
Minimum Switching Current | 10 mA >= 5 V |
Switching Frequency |
|
Terminal Block Type | removable |
Installation Category | II IEC 60664-1 |
Maximum Current Per Output Common | 10 A |
Current Per Channel | 5 A preactuator end |
[Ui] Rated Insulation Voltage | 2000 V |
Net Weight | 0.448 kg |
Electrical Durability |
|
Fixing Mode |
|
[Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
Maximum Switching Voltage |
|
Contact Bounce Time | <= 5 ms 1 NO |
Polarity Distribution | volt-free |
Tightening Torque | 0.6 N.m flat Ø 3.5 mm |
Mechanical Durability | 20000000 cycles |
Operating Time |
|
Maximum Power Dissipation Per Channel In W | 0.36 W PLC end) |
Drop-Out Voltage | 2.4 V 20 °C PLC end) |
Width | 125 mm |
Operating Rate In Hz |
|
Electrical Reliability | 1e-008 |
Threshold Tripping Voltage | 19.7 V 40 °C |
Drop-Out Current | 1 mA 20 °C |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP121229EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1212029EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Resistance To Radiated Fields | 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3 |
Ambient Air Temperature For Operation | -5-60 °C IEC 61131-2 |
Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
Dielectric Strength | 2000 V IEC 60947-1 |
Max Immunity To Microbreaks | 5 ms |
Ip Degree Of Protection | IP2X conforming to IEC 60529 |
Pollution Degree | 2 IEC 60664-1 |
Resistance To Incandescent Wire | 750 °C 30 s IEC 60695-2-11 |
Ambient Air Temperature For Storage | -40-80 °C IEC 61131-2 |
Protective Treatment | TC |
Resistance To Fast Transients | 2 kV level 3 IEC 61000-4-4 |
