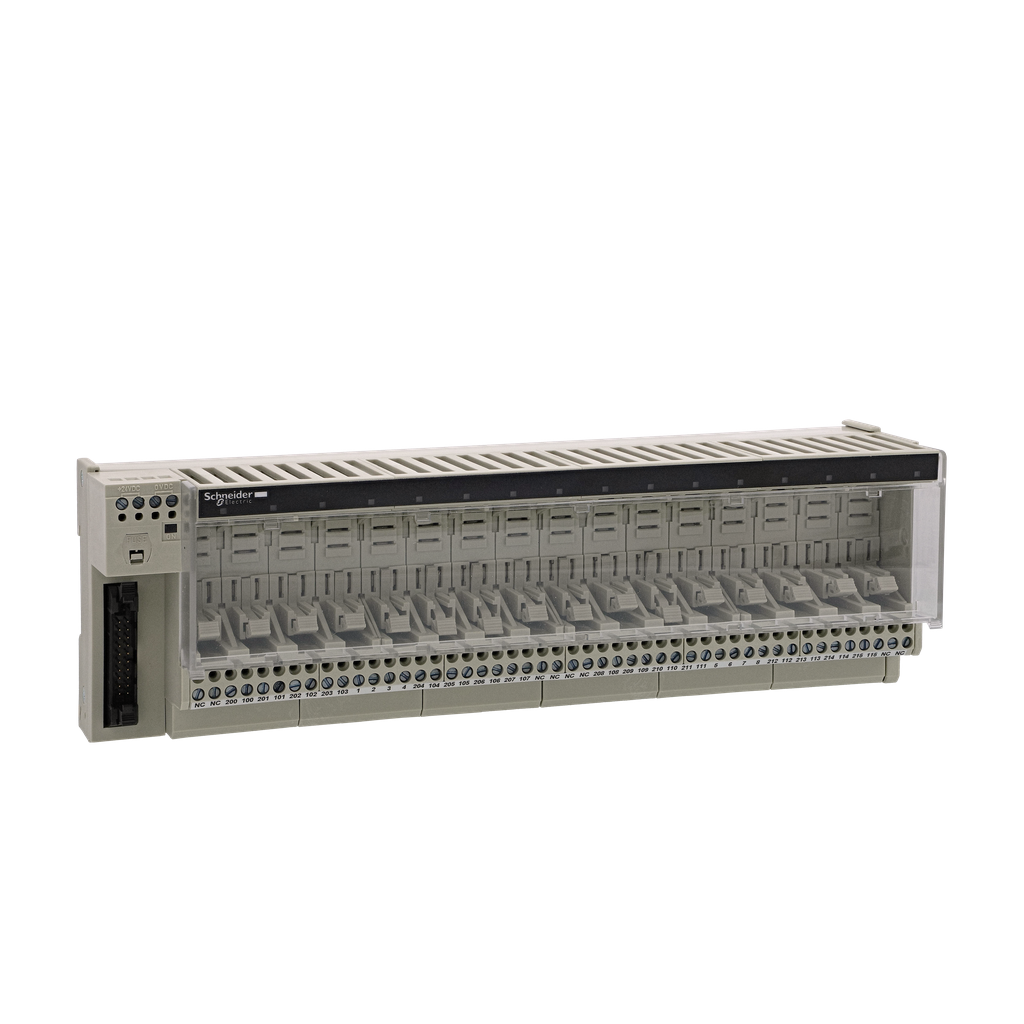

ABE7P16F312 - sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm

ABE7P16F312

sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm

Add to Quote Catalogue

Specifications

Range Of Product	Modicon ABE7
Product Or Component Type	sub-base for plug-in relay
Number Of Terminal Per Channel	2
Connections - Terminals	screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² AWG 28...AWG 16) flexible with cable end screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 12) solid screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 14) flexible without cable end screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² AWG 28...AWG 20) flexible with cable end screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² AWG 24...AWG 14) solid
Number Of Channels	16
Sub-Base Type	input sub-base
[Us] Rated Supply Voltage	19...30 V IEC 61131-2
Warranty	18 months
Isolation Plc/Operative Part	yes
Short-Circuit Protection	1 A internal fuse, 5 x 20 mm, fast blow PLC end)
[Uimp] Rated Impulse Withstand Voltage	2.5 kV
Status Led	1 LED per channel (Green) channel status 1 LED (Green) power ON
Installation Category	II IEC 60664-1
Net Weight	0.85 kg
Fixing Mode	by clips 35 mm symmetrical DIN rail) by screws solid plate with fixing kit)
Polarity Distribution	polarity distribution contact common per group of 4 channels
Tightening Torque	0.6 N.m flat Ø 3.5 mm
Maximum Supply Current	1 A
Supply Circuit Type	DC
Voltage Drop On Power Supply Fuse	0.3 V
Product Compatibility	ABR7 ABS7S33E ABS7E
[Ui] Rated Insulation Voltage	300 V coil circuit/contact circuits IEC 60947-1 2000 V terminals/mounting rails
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP121229EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1212029EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	DNV GL CSA EAC
Resistance To Radiated Fields	10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Ambient Air Temperature For Operation	-5-60 °C IEC 61131-2
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Vibration Resistance	2 gn 10-150 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP2X conforming to IEC 60529
Pollution Degree	2 IEC 60664-1
Resistance To Incandescent Wire	750 °C IEC 60695-2-11
Ambient Air Temperature For Storage	-40-80 °C IEC 61131-2
Resistance To Electrostatic Discharge	4 kV contact) level 3 IEC 61000-4-2 8 kV air) level 3 IEC 61000-4-2
Resistance To Fast Transients	2 kV level 3 IEC 61000-4-4
