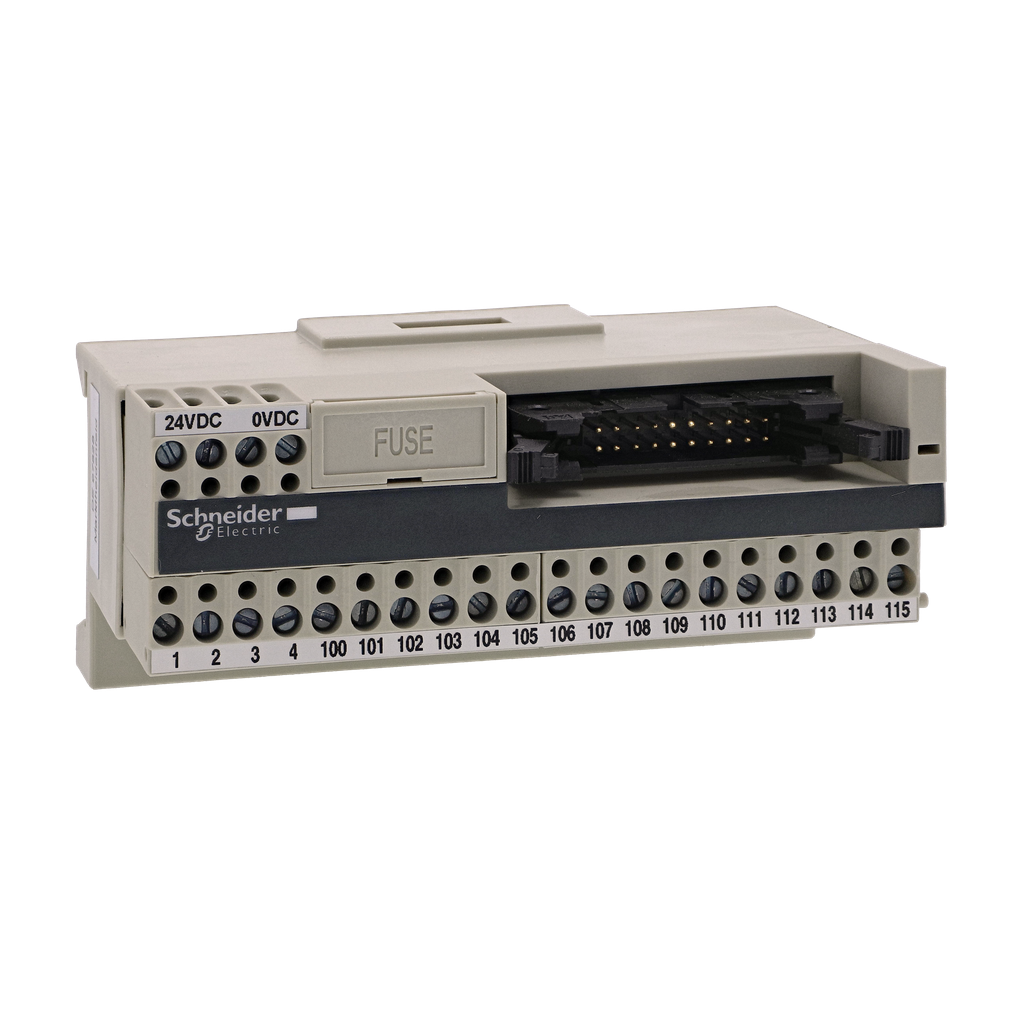

ABE7H16C10
passive connection sub-base ABE7 - 16 inputs or outputs
Specifications
| Product Certifications |
|
|---|---|
| Resistance To Radiated Fields | 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3 |
| Ambient Air Temperature For Operation | -5-60 °C IEC 61131-2 |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Vibration Resistance | 2 gn 10-150 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP2X conforming to IEC 60529 |
| Pollution Degree | 2 IEC 60664-1 |
| Resistance To Incandescent Wire | 750 °C 30 s IEC 60695-2-11 |
| Ambient Air Temperature For Storage | -40-80 °C IEC 61131-2 |
| Resistance To Electrostatic Discharge |
|
| Resistance To Fast Transients | 2 kV level 3 IEC 61000-4-4 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121229EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1212029EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Short-Circuit Protection | 2 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Number Of Horizontal Rows | 1 |
| Current Per Channel | 0.5 A |
| Status Led | 1 LED (Green) power ON |
| Installation Category | II IEC 60664-1 |
| Maximum Current Per Output Common | 1.8 A |
| [Ui] Rated Insulation Voltage | 2000 V |
| Net Weight | 0.16 kg |
| Fixing Mode |
|
| Polarity Distribution | no |
| Tightening Torque | 0.6 N.m flat Ø 3.5 mm |
| Maximum Supply Current | 1.8 A |
| Supply Circuit Type | DC |
| Voltage Drop On Power Supply Fuse | 0.3 V |
| Country of Origin | Latvia |
| Weight | 0.16 kg |
| Range Of Product | Modicon ABE7 |
| Product Or Component Type | passive discrete I/O sub-base |
| Number Of Terminal Per Channel | 1 |
| Connections - Terminals |
|
| Number Of Channels | 16 |
| Sub-Base Type | miniature sub-base |
| [Us] Rated Supply Voltage | 19...30 V IEC 61131-2 |
