A400L
Meter accessory, hub, large, rainproof, 4 in

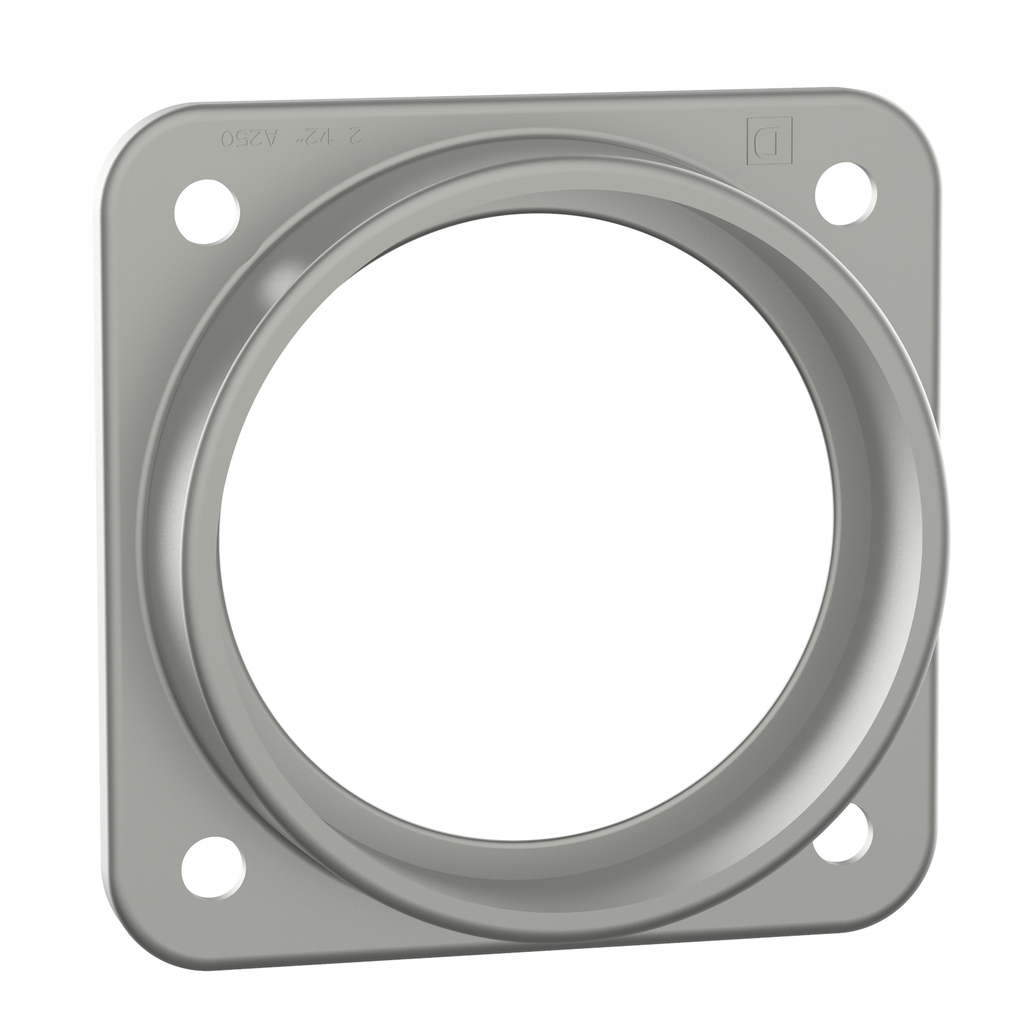

Individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. This bolt on hub has a 4.00 inch conduit for use on enclosures that require A/L hubs. Hub is fastened to the enclosure with four 1/4-24 x 1/2 inch slotted screws. This hub is rainproof and measures at 5.00 inches tall and 5.00 inches wide. Hub is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Width | 5 in |
| Height | 5 in |
| Range Of Product | Series A-L |
| Product Or Component Type |
|
| Product Certifications | UL Listed |
| Number Of Mounting Holes | 4 |
| Height | 5 in |
| Mounting Support | direct mounting on box |
| Hub Type | A-L |
| Product Destination | conduit entry |
| Width | 5 in |
| Cable Entry | conduit entry |
| Device Composition | adaptor plate |
| Shape Of Screw Head | slotted hexagonal |
| Warranty | 18 months |
| Eu Rohs Directive | Under investigation |
Documents
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Metering Equipment: Section 2 - Digest 179 (2024) - Metering-Equipment-Digest-Catalog-0100CT2401-SEC-02 (pdf)
- Square D EZ Meter-Pak Meter Centers Catalog - 4100CT0701 (pdf)
- Square D QO and Homeline Combination Service Entrance Devices (CSEDs) - 4120CT2201 (pdf)
- Load Centers: Section 1 - Digest 179 (2024) - Load-Centers-CSEDs-Digest-Catalog-0100CT2401-SEC-01 (pdf)
- Digest Catalog 02: Metering Equipment - 0100CT1901_SEC-02 (pdf)
- Spec Sheet
