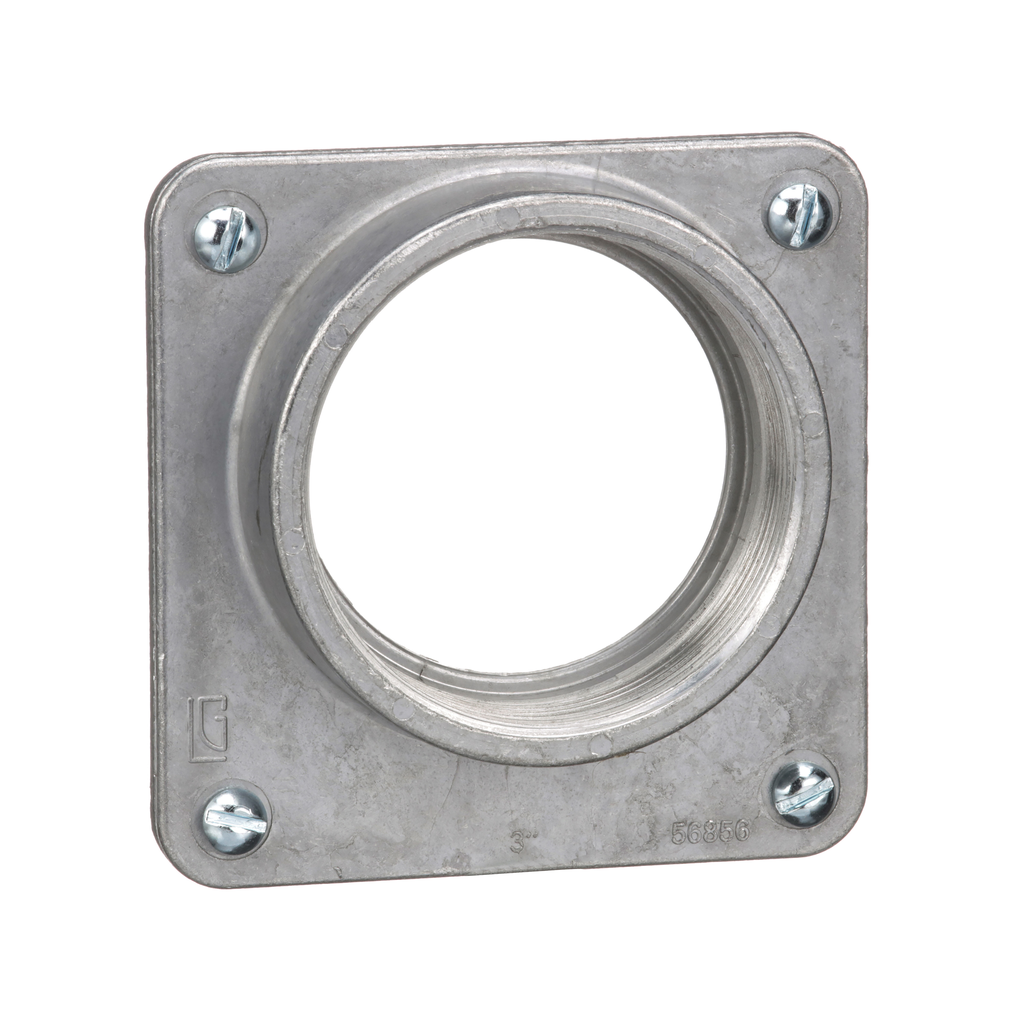

A300L
Meter pak accessory, hub, 3.00in wire size, Series A L, rainproof, 5.00in
Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt on hub or closing plate. This accessory is a hub which is rated for 3.00 in wire size on Series A L systems. This hub is rainproof and measures at 5.00 inches tall and 5.00 inches wide.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Width | 4.5 in |
| Height | 1.5 in |
| Range Of Product | Series A-L |
| Product Or Component Type |
|
| Product Certifications | UL Listed |
| Height | 1.5 in |
| Mounting Support | direct mounting on box |
| Product Destination | conduit entry |
| Cable Entry | conduit entry |
| Number Of Mounting Holes | 4 |
| Hub Type | A-L |
| Width | 4.5 in |
| Depth | 4.5 in |
| Device Composition | adaptor plate |
| Shape Of Screw Head | slotted hexagonal |
| Warranty | 18 months |
| Eu Rohs Directive | Under investigation |
