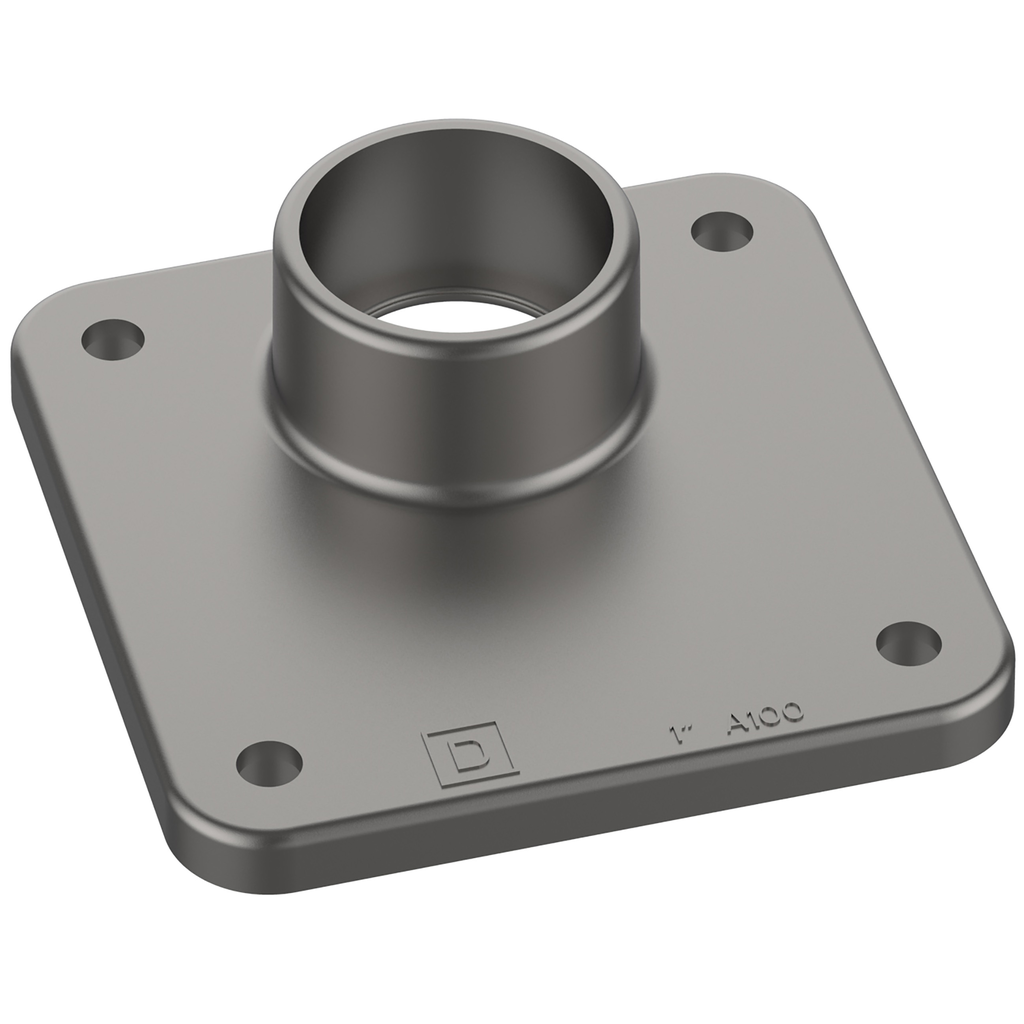

A100
Meter accessory, hub, 1 in wire size, Series A, rainproof, 3.31 in
Individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. This bolt on hub has a 1.00 inch conduit for use on enclosures that require A hubs. Hub is fastened to the enclosure with four 12-24 x 1/2 inch slotted hex washer head screws. This hub is rainproof and measures at 3.31 inches tall, 3.31 inches wide and 1.03 inches deep. Hub is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Height | 1 in |
| Mounting Support | direct mounting on box |
| Product Destination | conduit entry |
| Cable Entry | conduit entry 1 " |
| Number Of Mounting Holes | 4 |
| Hub Type | A |
| Width | 3.3 in |
| Depth | 3.3 in |
| Device Composition | adaptor plate |
| Shape Of Screw Head | slotted hexagonal |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Under investigation |
| Country of Origin | United States |
| Width | 3.3 in |
| Height | 1 in |
| Range Of Product | Series A |
| Product Or Component Type |
|
| Warranty | 18 months |
