9AS7A24 - Power Relays, Harmony 9A, SPDT, 30A, flanged panel mount, sealed cover, 24V AC

9AS7A24

Power Relays, Harmony 9A, SPDT, 30A, flanged panel mount, sealed cover, 24V AC

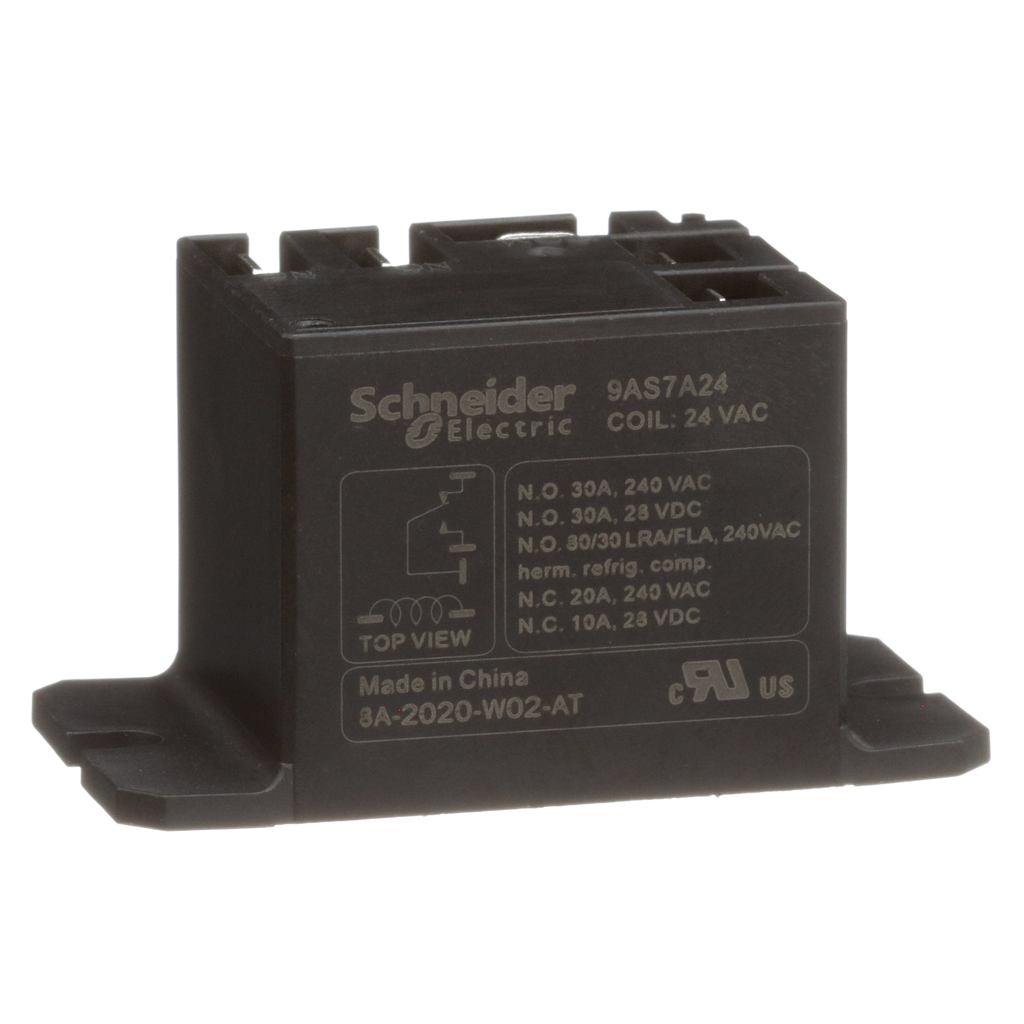

This 99AS7A24 power relay belongs to the Schneider Electric Harmony electromechanical relays range. 9A power relay has a sealed cover and is flanged panel mounting. It’s a 30A, 1 NO contact configuration mechanical relay with nominal coil voltage of 24V AC and coil resistance It is a green premium product and conforms to international standard and certifications.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2006003EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Lead Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2006003EN
Phenolic Free Solution	Yes
Eu Rohs Directive	Compliant
Silicon Free	Yes
Network Frequency	50-60 Hz
Connections - Terminals	Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm
Control Circuit Voltage Limits	0.85...1.1 Uc
Protection Category	RT III
Reset Time	10 ms
Dielectric Strength	2500 V AC between coil and contact 1500 V between contacts with micro disconnection
[Ui] Rated Insulation Voltage	320 V
Rated Power In Va	470 VA at 240 V, NO on pilot duty 275 VA at 240 V, NC on pilot duty
Input Current	30 A NO 20 A NC
Net Weight	0.032 kg
Average Resistance	100 Ohm at 23 °C +/- 10 %
Average Consumption	2.6 VA
[Ie] Rated Operational Current	30 A at 240 V AC-1 (NO) 20 A at 240 V AC-1 (NC) 30 A at 28 V DC (NO) (on resistive load) 10 A at 28 V DC (NC) (on resistive load) 22 A at 120 V AC-8a (NO) (full load) 98 A at 120 V AC-8a (NO) (locked rotor) 30 A at 240 V AC-8a (NO) (full load) 80 A at 240 V AC-8a (NO) (locked rotor) 12 A at 240 V AC-8a (NC) (full load) 30 A at 240 V AC-8a (NC) (locked rotor) 10 A at 277 V AC-8a (NC) (full load) 33 A at 277 V AC-8a (NC) (locked rotor) 10 A at 277 V AC-5a (NO) (ballast) 3 A at 277 V AC-5a (NC) (ballast)
Mounting Support	panel flange
Electrical Durability	100000 cycles, 30 A at 240 V, AC-1 NO 50000 cycles for resistive load, 30 A at 28 V, DC NO 30000 cycles for full load, 22 A at 120 V, AC-8a NO 30000 cycles for full load, 30 A at 240 V, AC-8a NO 1000 cycles for motor load NO 6000 cycles for ballast load, 10 A at 277 V, AC-5a NO 100000 cycles, 20 A at 240 V, AC-1 NC 100000 cycles for resistive load, 10 A at 28 V, DC NC 30000 cycles for full load, 12 A at 240 V, AC-8a NC 30000 cycles for full load, 10 A at 277 V, AC-8a NC 1000 cycles for motor load NC 6000 cycles for ballast load, 3 A at 277 V, AC-5a NC
Mechanical Durability	10000000 cycles
Rated Power In Hp	1 hp at 125 V AC, NO 2 hp at 250 V AC, NO 0.25 hp at 125 V AC, NC 0.5 hp at 250 V AC, NC
Operating Position	any position
[Uimp] Rated Impulse Withstand Voltage	4 kV 1.2/50 µs
Drop-Out Voltage Threshold	>= 0.2 Uc
Minimum Switching Capacity	5 W at 1 A, 5 V DC 12 VA at 1 A, 12 V AC
Operating Time	20 ms
Country of Origin	China
Width	27.3 mm
Height	50 mm
Weight	0.032 kg
[Uc] Control Circuit Voltage	24 V AC 50-60 Hz
Range Of Product	Harmony
Contacts Material	silver alloy contacts
Product Or Component Type	power relay
Maximum Switching Voltage	277 V AC 28 V DC
Switch Function	SPDT
Product Certifications	UL
Ambient Air Temperature For Operation	-40-40 °C
Height	50 mm
Standards	UL 60947-4-1
Pollution Degree	3
Shock Resistance	10 gn operating 100 gn not operating
Vibration Resistance	+/- 0.75 mm 10-55 Hz operating +/- 0.75 mm 10-55 Hz not operating
Ambient Air Temperature For Storage	-40-85 °C
Width	27.3 mm
Depth	27.8 mm
