9AS3D12 - Electromechnical Power Relays, Harmony 9A, 30A, 12 VDC SPST-NO, flanged panel mount, sealed cover

9AS3D12

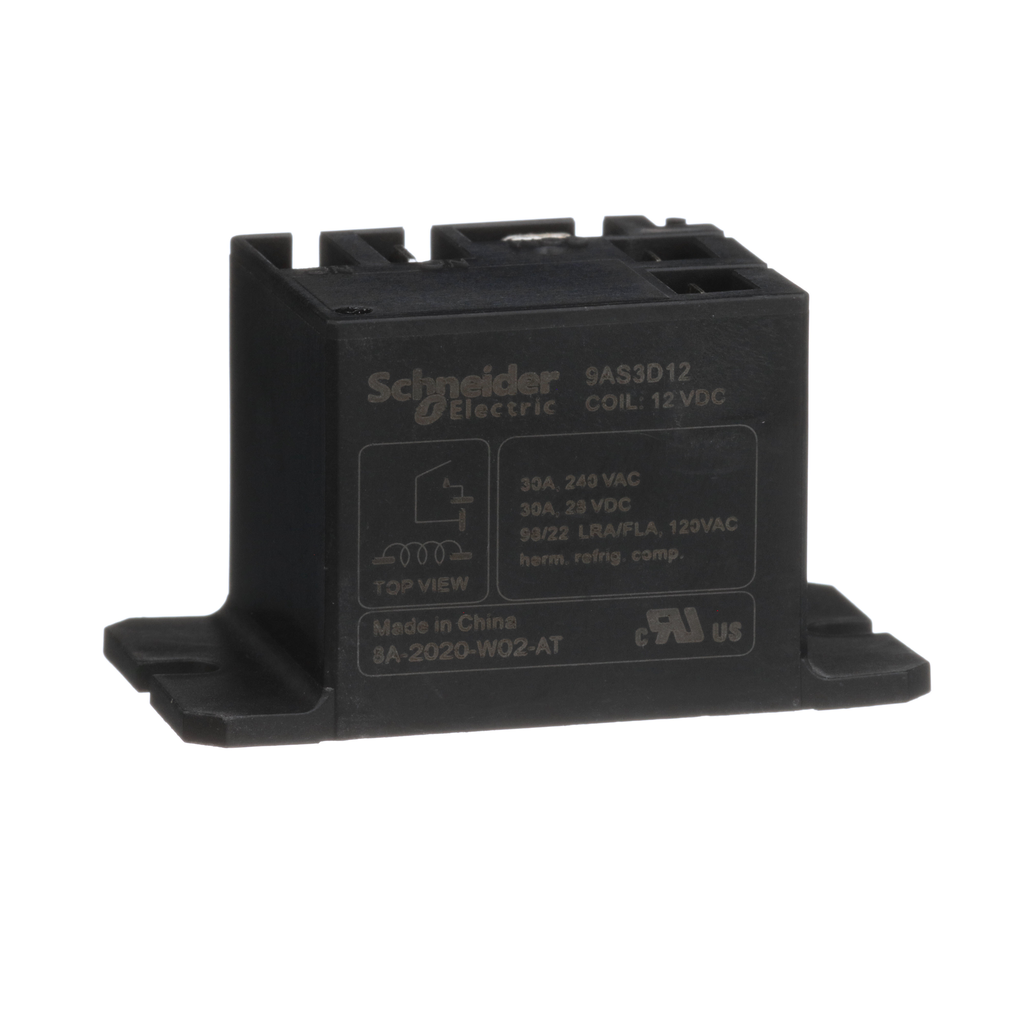

Electromechnical Power Relays, Harmony 9A, 30A, 12 VDC SPST-NO, flanged panel mount, sealed cover

Add to Quote Catalogue

Specifications

Network Frequency	50-60 Hz
Control Circuit Voltage Limits	0.8...1.1 Uc
Connections - Terminals	Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm
Average Coil Consumption	0.9 W
Protection Category	RT III
Reset Time	10 ms
Dielectric Strength	2500 V AC between coil and contact 1500 V between contacts with micro disconnection
[Ui] Rated Insulation Voltage	320 V
Rated Power In Va	470 VA at 240 V on pilot duty
Input Current	30 A
Net Weight	0.032 kg
Average Resistance	155 Ohm at 23 °C +/- 10 %
[Ie] Rated Operational Current	30 A at 240 V AC-1 30 A at 28 V DC (on resistive load) 24 A at 240 V AC (on resistive load) 98 A at 120 V AC-8a (locked rotor) 22 A at 120 V AC-8a (full load) 10 A at 277 V AC-5a (ballast)
Mounting Support	panel flange
Electrical Durability	100000 cycles, 30 A at 240 V, AC-1 50000 cycles for resistive load, 30 A at 28 V, DC 100000 cycles for resistive load, 24 A at 240 V, AC 30000 cycles for full load, 22 A at 120 V, AC-8a 1000 cycles for motor load 6000 cycles for ballast load, 10 A at 277 V, AC-5a
Mechanical Durability	10000000 cycles
Rated Power In Hp	1 hp at 125 V AC 2 hp at 250 V AC
Operating Position	any position
[Uimp] Rated Impulse Withstand Voltage	4 kV 1.2/50 µs
Drop-Out Voltage Threshold	>= 0.1 Uc
Minimum Switching Capacity	5 W at 1 A, 5 V DC 12 VA at 1 A, 12 V AC
Operating Time	20 ms
Country of Origin	China
Width	27.3 mm
Height	50 mm
Weight	0.032 kg
[Uc] Control Circuit Voltage	12 V DC
Range Of Product	Harmony
Contacts Material	silver alloy contacts
Product Or Component Type	power relay
Maximum Switching Voltage	277 V AC 28 V DC
Contacts Type And Composition	NO
Switch Function	SPST
Product Certifications	UL
Ambient Air Temperature For Operation	-40-40 °C
Height	50 mm
Standards	UL 60947-4-1
Pollution Degree	3
Shock Resistance	10 gn operating 100 gn not operating
Vibration Resistance	+/- 0.75 mm 10-55 Hz operating +/- 0.75 mm 10-55 Hz not operating
Ambient Air Temperature For Storage	-40-85 °C
Width	27.3 mm
Depth	27.8 mm
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2006003EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Lead Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2006003EN
Phenolic Free Solution	Yes
Eu Rohs Directive	Compliant
Silicon Free	Yes
