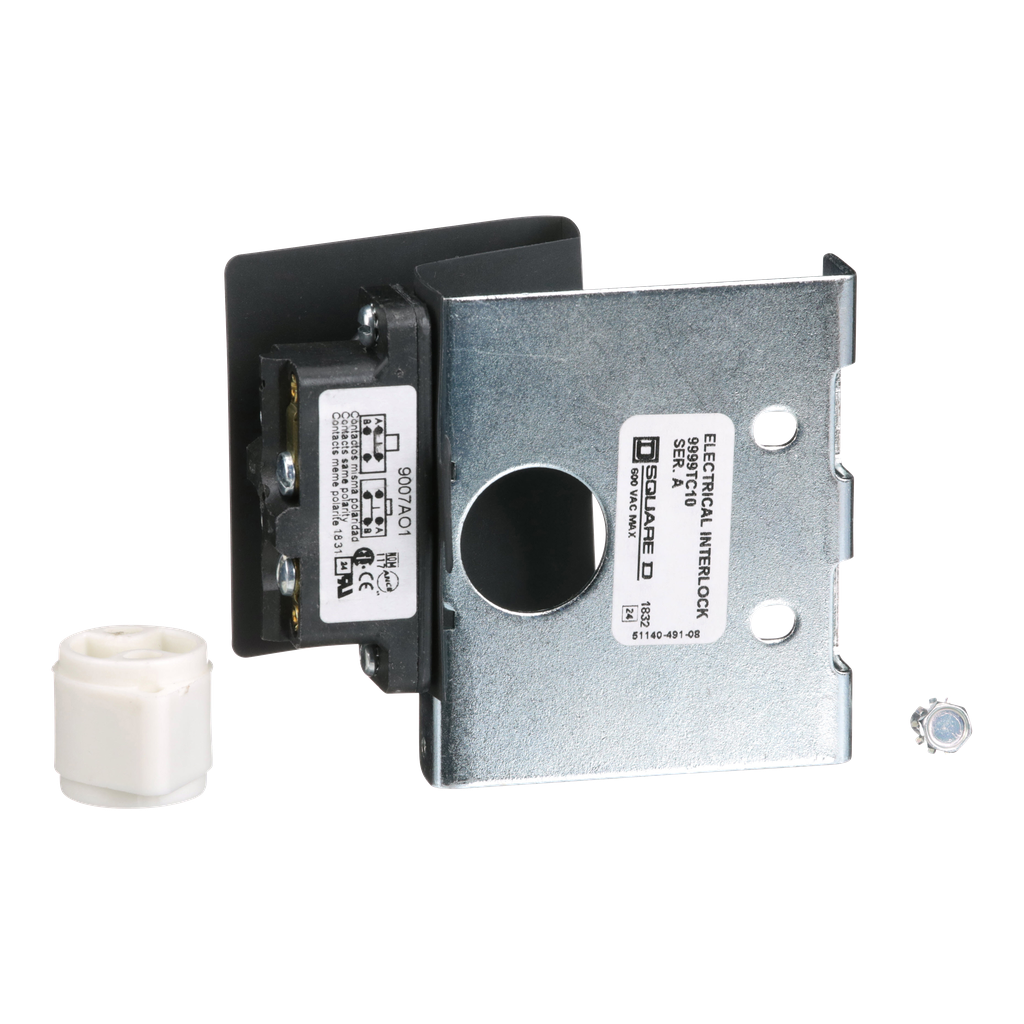

9999TC10
Disconnect mechanism, flange mounted, disconnect switch auxiliary contact kit, 15A, 1 pole, SPDT
9422TCF, TCN, TDF, TDN, TEF, and TEN disconnect switches were designed for control panel installations. These switches include common switch profile 30 to 100 A, interchangeable fuse clips 30A to 60 A, and the ability to add fuse clip kits and cable mechanisms. This electrical interlock is for a 9422TCF, 9422TCN, 9422TDF, 9422TDN, 9422TEF and 9422TEN disconnect switches. Contact modules are UL component recognized.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 4.16 in |
|---|---|
| Range Compatibility | Square D Disconnect Switch |
| Net Weight | .23 kg |
| [Ie] Rated Operational Current |
|
| Depth | 1.44 in |
| Country of Origin | Mexico |
| Height | 4.16 in |
| Weight | .23 kg |
| Product Or Component Type | interlock |
| Range | Square D |
| Device Application | control |
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Under investigation |
Documents
- Spec Sheet
- Safety Switches: Section 3 - Digest 179 (2024) - Safety-Switches-Digest-Catalog-0100CT2401-SEC-03 (pdf)
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches - 0100CT1901_SEC-08 (pdf)
- NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf)
- Square D Operating Mechanisms and Disconnect Switches Catalog - 9420CT9701R03_21 (pdf)
- Digest Catalog 03: Safety Switches - 0100CT1901_SEC-03 (pdf)
- Operating Mechanisms & Disconnect Switches: Section 8 - Digest 179 (2024) - Operator-Disconnects-Digest-Catalog-0100CT2401-SEC-08 (pdf)
- Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters - 0100CT1901_SEC-16 (pdf)
- Square D NEMA Contactors and Starters Accessories Catalog - 9999CT9701R0817 (pdf)
- 9999TC10 and 9999TC20 Electrical Interlocks for Flange-Mounted Disconnect Switches - 50006-413-10A (pdf)
- 9422T Flange-Mounted, Variable-Depth Disconnect Switches, 30 A, 60 A, and 100 A Installation Instructions - 50006-413-08 (pdf)
