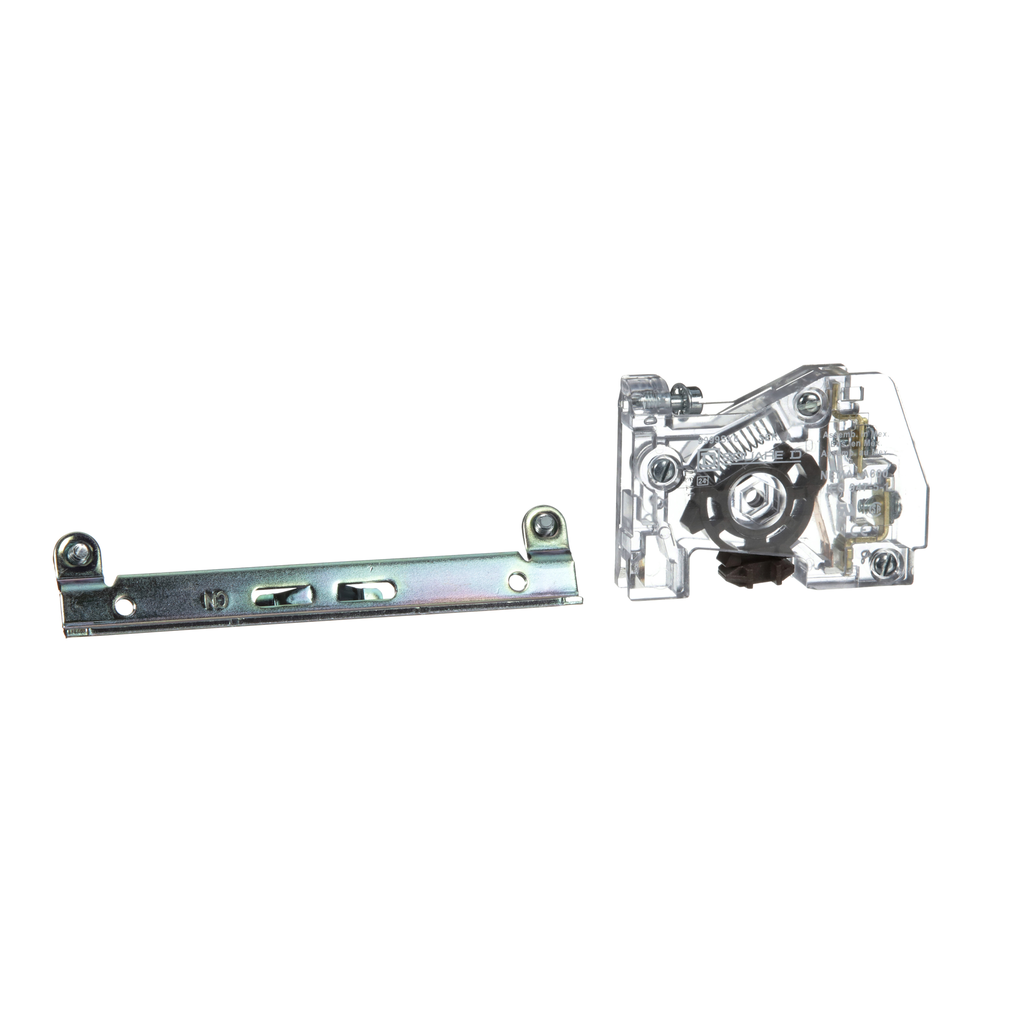

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This external convertible contact is mounted on the side of a contactor or starter. It is often used as part of the electrical control circuit. This auxiliary contact has one normally open contact. Auxiliary contact module has a NEMA A600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 6.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | type S |
---|---|
Product Or Component Type | Auxiliary Contact Module |
Product Destination |
|
Warranty | 18 months |
[Ue] Rated Operational Voltage | <= 600 V AC 50/60 Hz |
Height | 1.5 in |
Auxiliary Contact Composition | 1 NO |
Nema Size |
|
Rated Breaking Capacity |
|
Width | 3 in |
Depth | 4.5 in |
Net Weight | 0.09 kg |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Not compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications |
|
