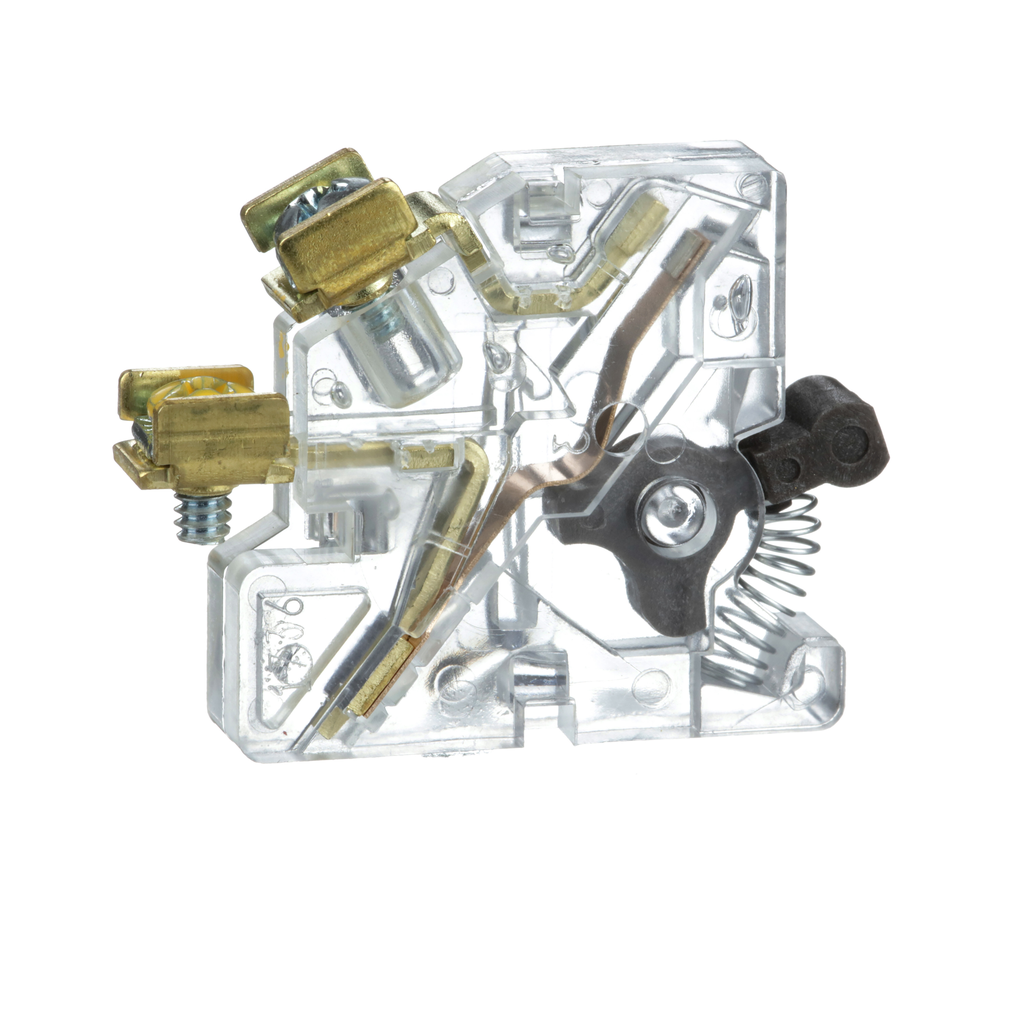

9999SX11
NEMA Motor Starter and contactor, Type S, auxiliary contact, 1 NO contact, internal, nonconvertible
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This internal nonconvertible contact is normally used as a holding circuit contact in three wire control. This auxiliary contact has one normally open contact. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 3.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| [Ue] Rated Operational Voltage | <= 600 V AC 50/60 Hz |
| Auxiliary Contact Composition | 1 NO |
| Nema Size |
|
| Rated Breaking Capacity |
|
| Country of Origin | Mexico |
| Range Of Product | type S |
| Product Or Component Type | Auxiliary Contact Module |
| Product Destination |
|
