9999SPL28R
NEMA Motor Starter and contactor, Type S, pilot light kit , LED, red, 120VAC 60Hz, NEMA size 00 to 7, Type 1, 3R, 12

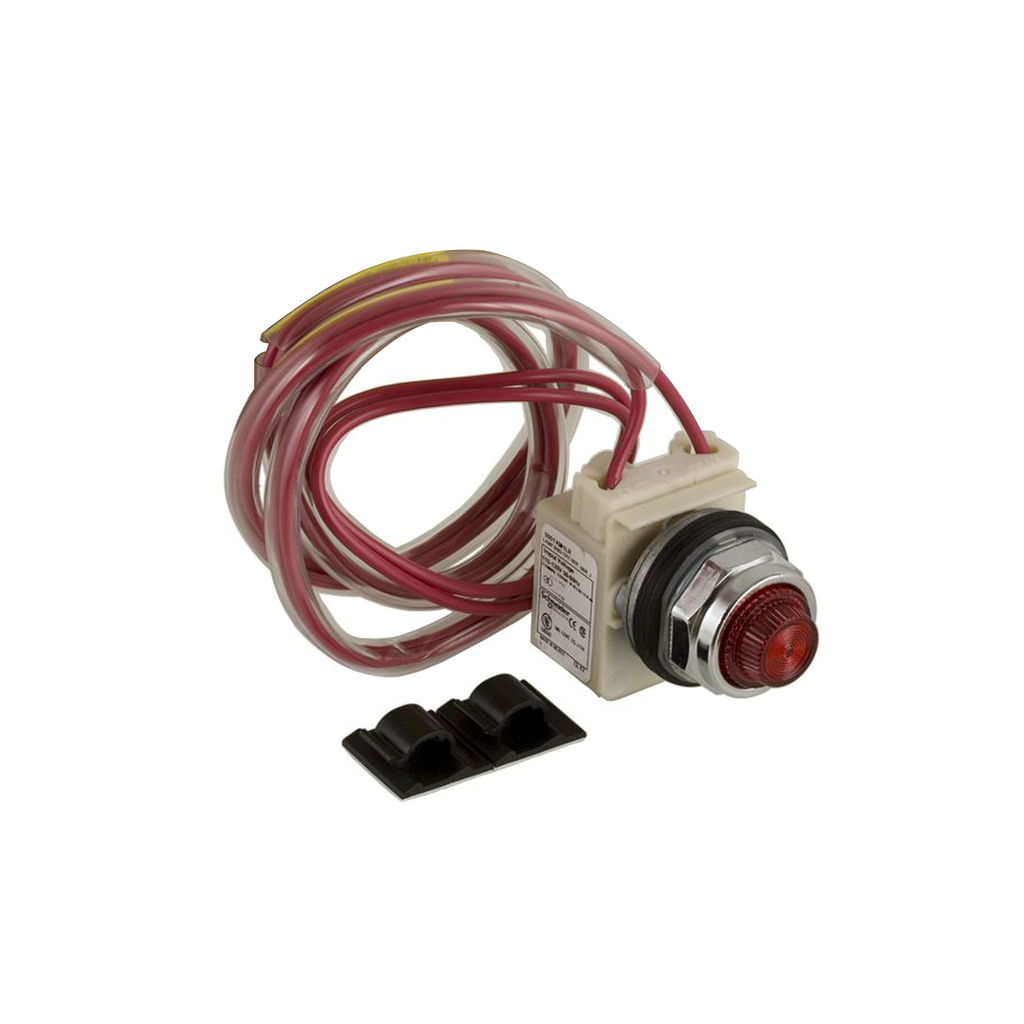

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This red LED pilot light kit is for Type S contactors and starters in a NEMA 1, 3R and 12 enclosure. This pilot light kit will work at 120 VAC. The pilot light is mounted in the door of the enclosure. Kit comes with a red LED lamp and a red pilot light lens. This light module kit is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection |
|
| Warranty | 18 months |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| [Ue] Rated Operational Voltage | 120 V AC 60 Hz |
| Nema Size |
|
| Signalling Colour | red |
| Kit Composition |
|
| Country of Origin | Mexico |
| Range Of Product | type S |
| Product Or Component Type | pilot light kit |
| Product Destination |
|
